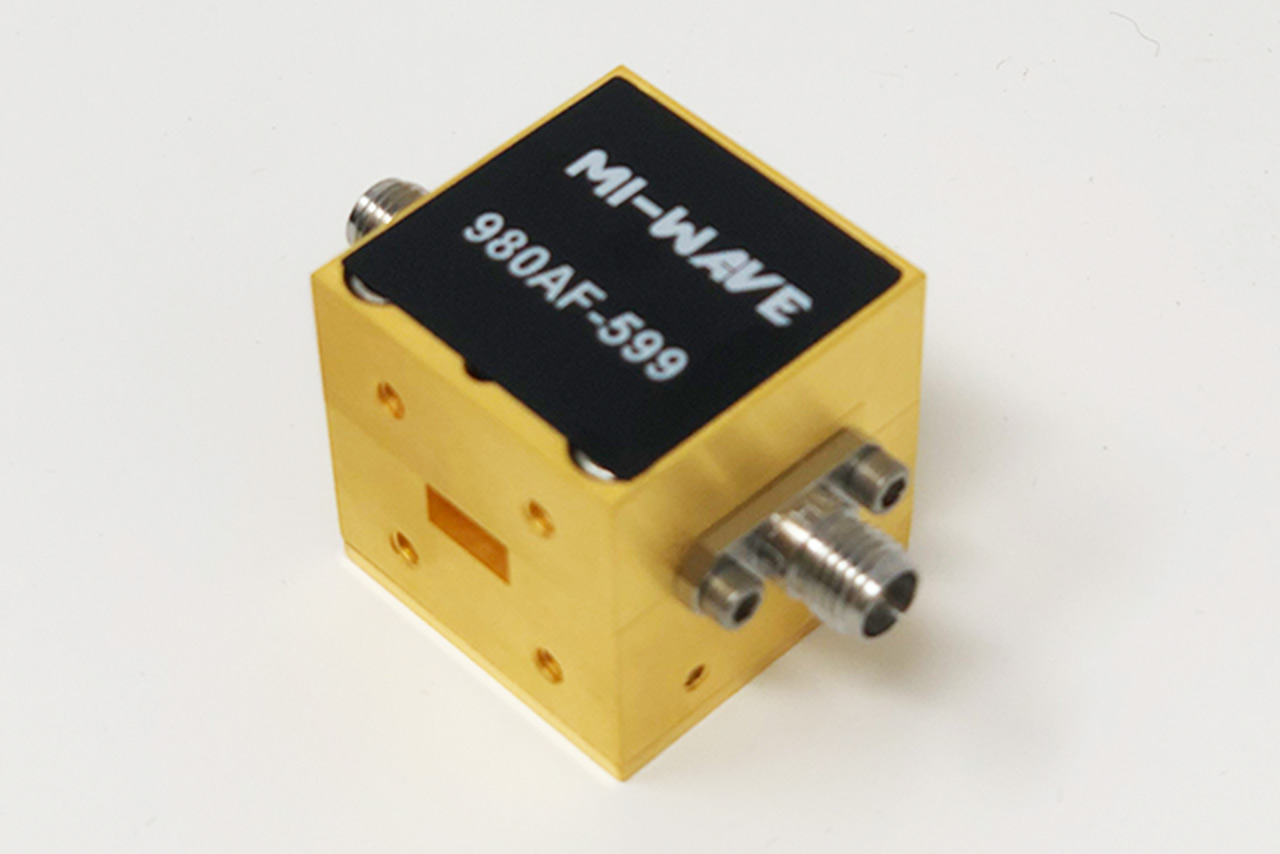

26.5 – 40 GHz, Wide-band Balanced Mixer

970A-980A, WR-28, RF to IF Conversion Loss 10 dB

Description:

Mi-Wave’s 970 Series balanced mixer down-converters have been designed to cover extremely wide RF bandwidths for EW/ELINT applications. Biased mixers with lower LO drive available.

Mi-Wave’s 980 Series balanced mixer up-converters have been designed to cover extremely wide RF bandwidths for EW/ELINT applications. Biased mixers with lower LO drive available.

Features

• Low Conversion Loss

• Wide IF Freq. to 30GHz

• Compact Size

Applications

• Test & Measurement

• Mobile & Satellite Communications

• Radar Systems

Outline Drawing
970 Downconverter Datasheet
980 Upconverter Datasheet
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

Wide-Band Balanced Mixers

Balanced Mixers down-converters millimeter-wave signals to broad IF bandwidths with a local oscillator. These mixers are available for frequencies between 18 – 110 GHz in seven waveguide bands. Mi-Wave Balanced Mixers operate over very broad RF, LO, and IF bandwidths.

For fixed LO frequency applications, Mi-Wave can provide a very wide IF range.

standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
