F-Band Waveguide Bend

670F/387, 90GHz – 140GHz WR-8, UG-387/U-M

Note: Customer can purchase a custom configuration or dimension. Please consult with the factory.

Description:

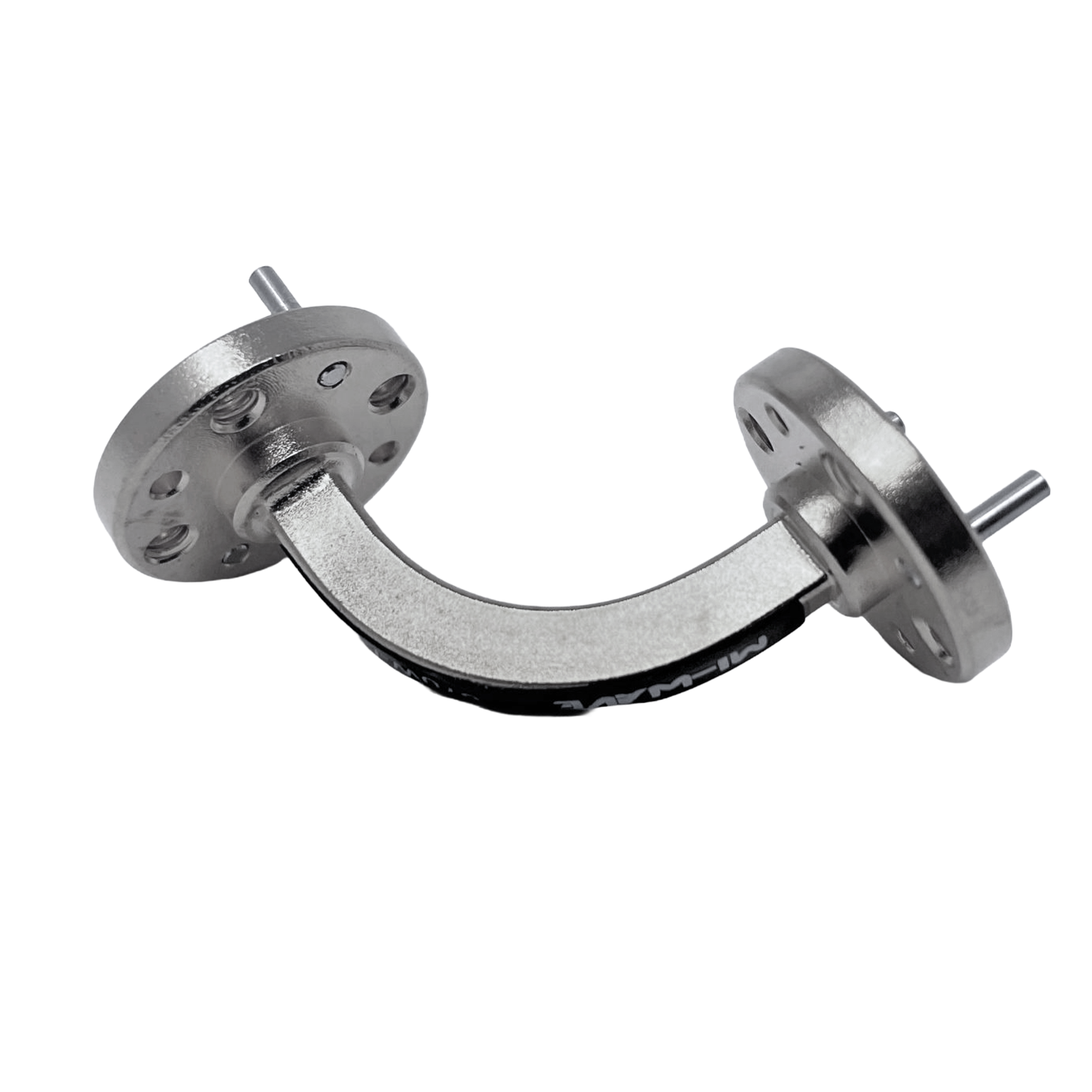

Mi-Wave’s 670, 671, 672, and 675 Series H-plane Bends are sections of high-precision waveguide accurately shaped to either 30º (671), 45º, (675),60º (672), or 90º (670). Special angles, radii, and configurations for all particular applications can be developed in a special order. All H-plane bends are available from 18 to 320 GHz.

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
