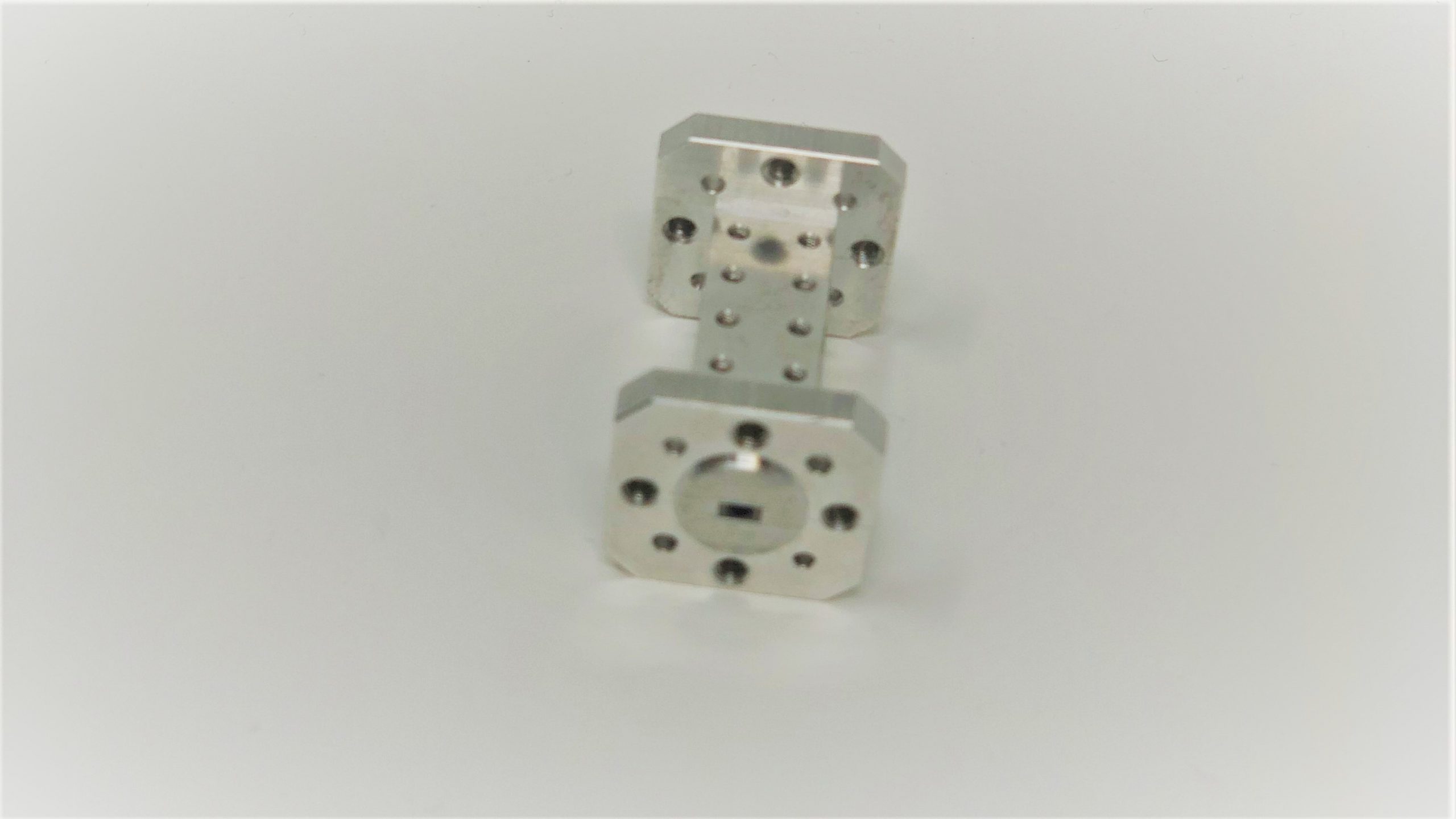

E-Band Bandpass Filters

Mi-Wave’s 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460 Series Bandpass filter can be designed from 8 to 140GHz. Please consult Mi-Wave for further dimensions and specific technical data.

E-Band, 60.8GHz – 64.8 GHz

460E-62.8/387, Passband Insertion Loss 1.3, Rejection 30dB

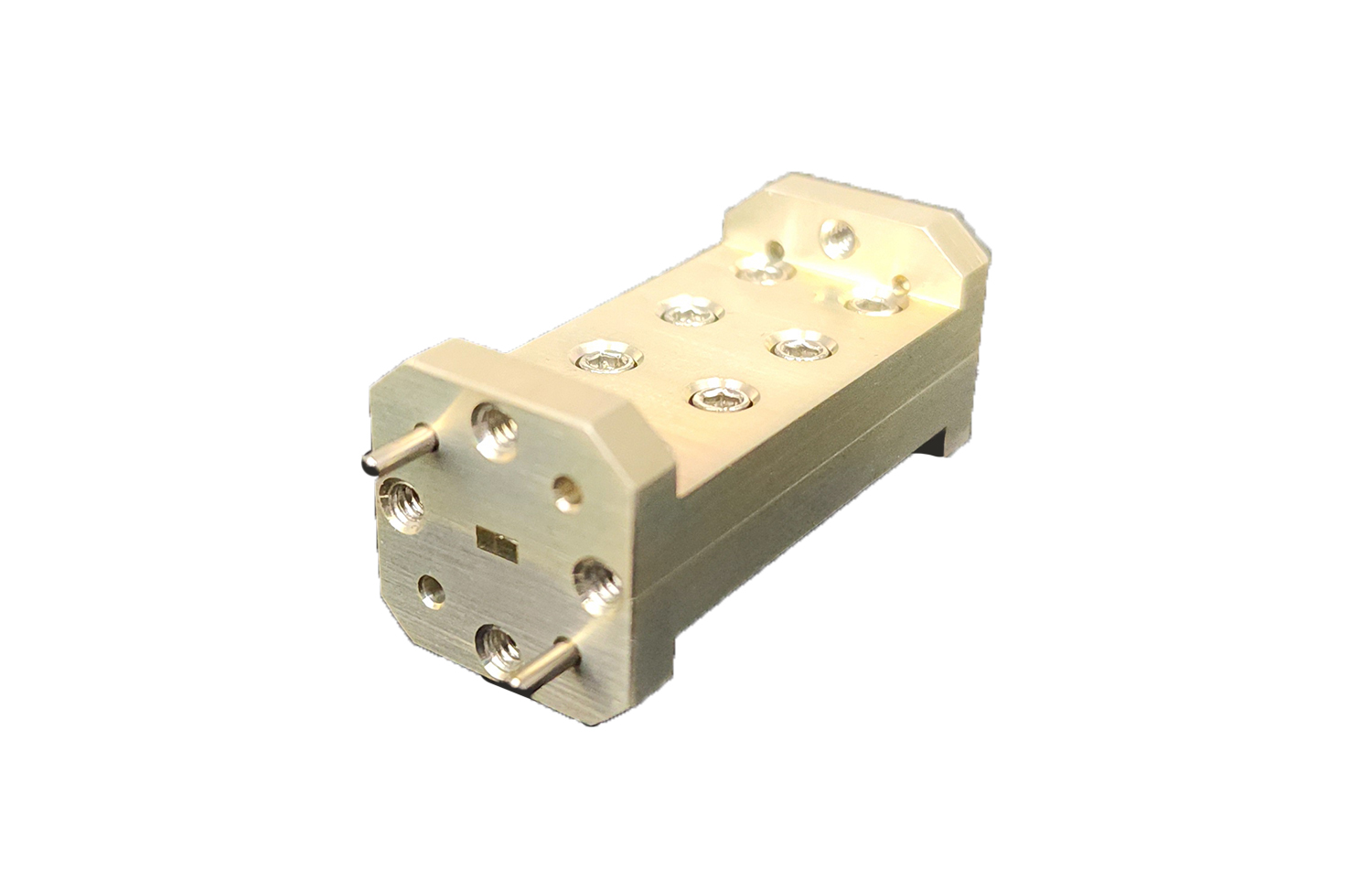

E-Band, 60.8GHz – 64.8 GHz

460E-60.8/64.8/387 , Passband Insertion Loss 1.5 dB, Rejection 30 dB

E-Band, 63.5 GHz – 82.5 GHz

460E-63.5/82.5/387 E-Band , Passband Insertion Loss 2.0 dB, Rejection 31 dB

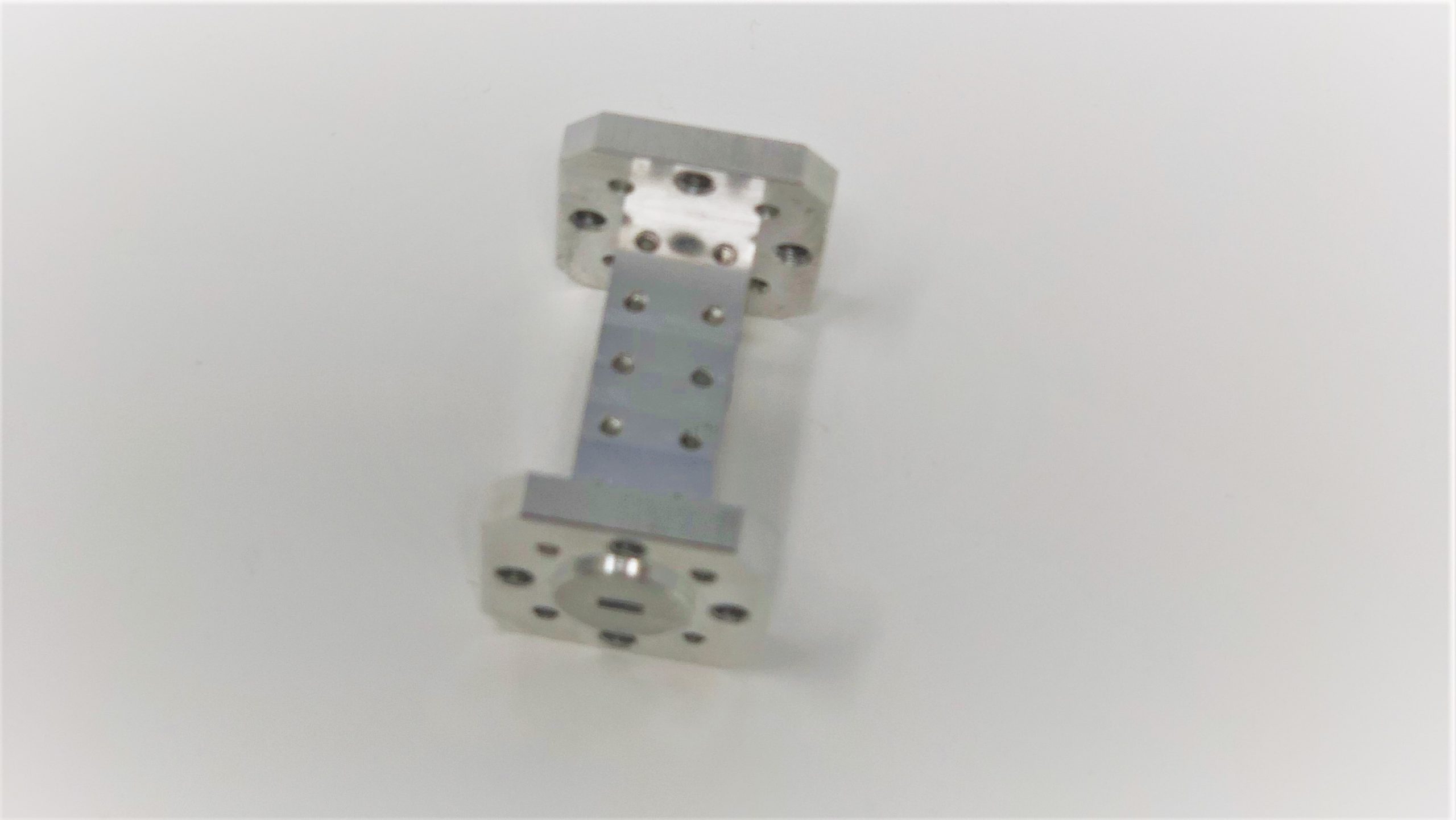

E-Band, 74.5GHz – 82.5GHz

460E-74.5/82.5/40/387P, Passband Insertion Loss 2.0, Rejection 50dB

E-Band, 75 GHz – 83 GHz

460E-75/83/387 E-Band , Passband Insertion Loss 1.5 dB, Rejection 32 dB

E-Band, 75.5 GHz – 81 GHz

460E-75.5/81/387 E-Band , Passband Insertion Loss 1.5 dB, Rejection 30 dB

E-Band, 75GHz – 83 GHz

460E-75/83/50/387 E-Band , Passband Insertion Loss 1.5 dB, Rejection 50 dB

E-Band, 76 GHz – 81 GHz

460E-76/81/387 E-Band , Passband Insertion Loss 1.5 dB, Rejection 30 dB

E-Band, 76.5 GHz – 81 GHz

460E-76.5/81/387 E-Band , Passband Insertion Loss 3.0 dB, Rejection 33 dB

E-Band, 76.5 GHz – 81.5 GHz

460E-76.5/81.5/387 E-Band , Passband Insertion Loss 3.25 dB, Rejection 31 dB

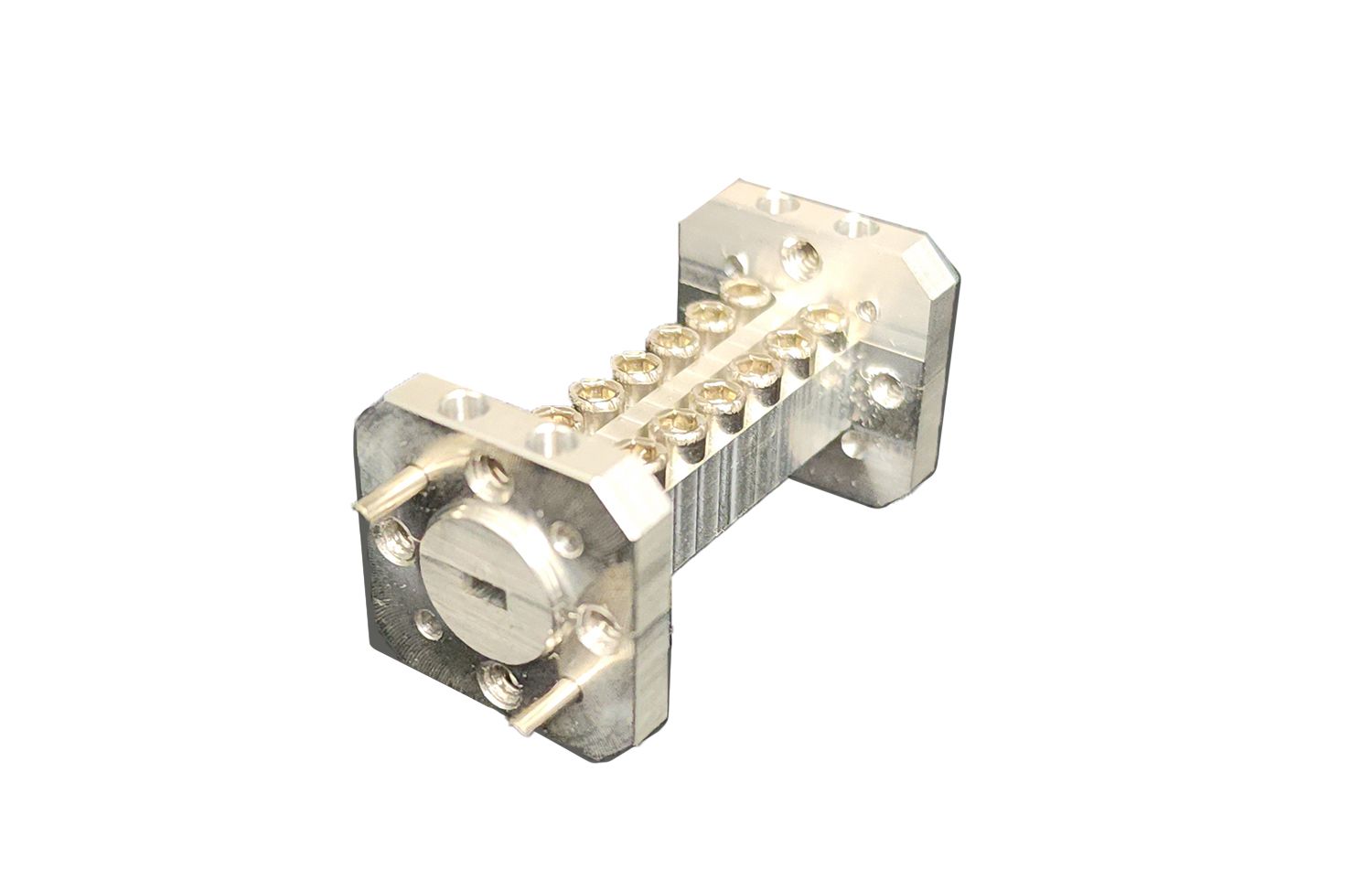

E-Band, 79GHz – 81 GHz

460E-79/81/387 E-Band , Passband Insertion Loss 2.3 dB, Rejection 32 dB

E-Band, 82.5GHz – 83.5 GHz

460E-82.5/83.5/387 E-Band, Passband Insertion Loss 2.5 dB, Rejection 31 dB
