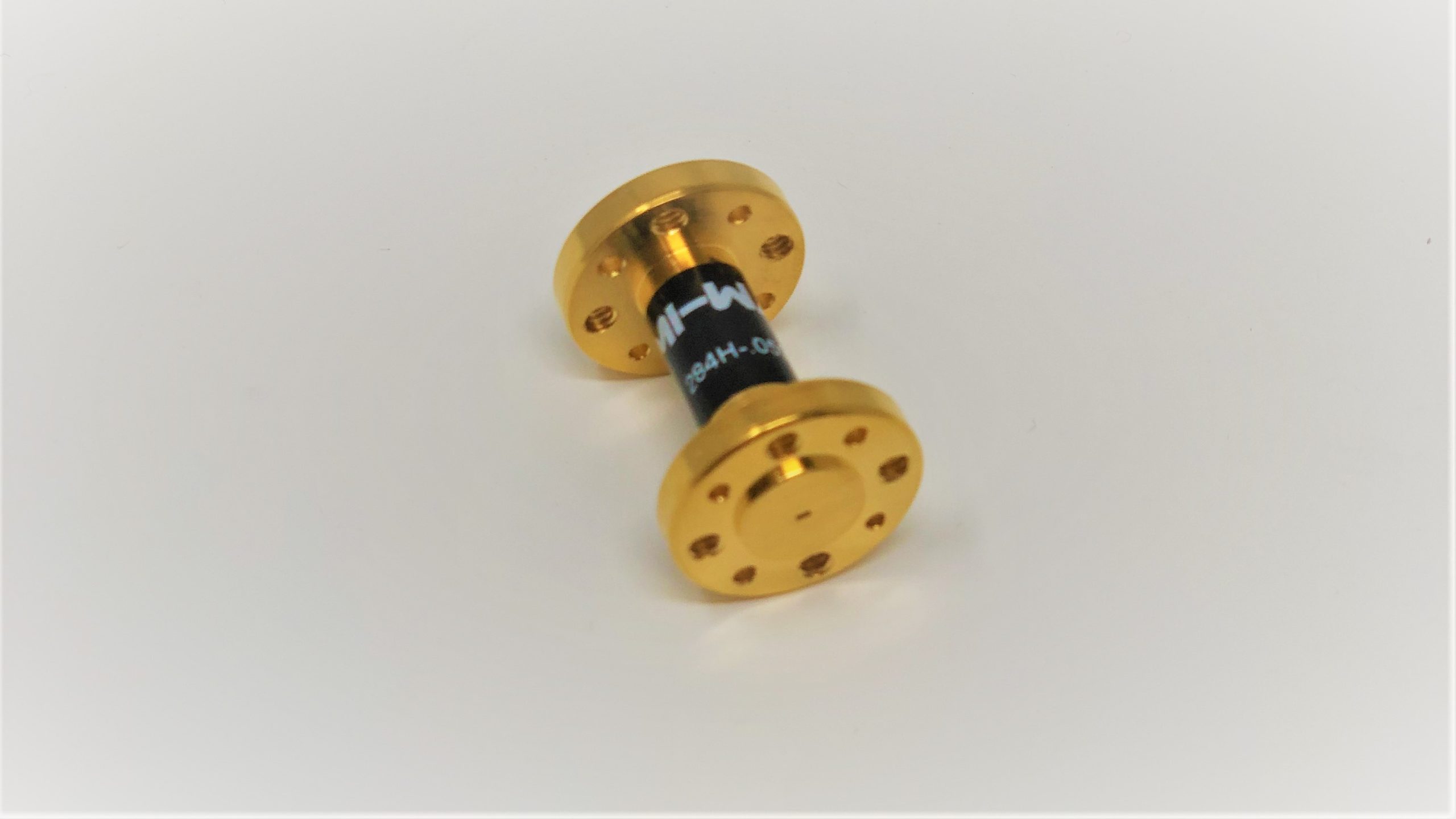

J-Band Waveguide Transition & Adapter

284J-XXX/387, 220GHz – 325GHz WR-3, VSWR 1.15

Description:

Mi-Wave’s 284 series tapered mode transitions is a precision-formed adapter used to transform rectangular TE10 mode waveguide to a circular TE11 mode waveguide. Mainly used in antenna systems and associated components to adapt to the conventional waveguides.

Features

• Low Cost

• Low VSWR

• Narrow Bandwidths

• High Rejection Levels

• Low In-band Insertion

Applications

• Test Labs

• Antenna Systems

• Orthomode Transducers

• Sub-Assemblies

• Polarization for Antennas

• 5G & 6G Systems

Outline Drawing
Test Data
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
