W-Band Bandpass Filters

Mi-Wave’s 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460 Series Bandpass filter can be designed from 8 to 140GHz. Please consult Mi-Wave for further dimensions and specific technical data.

W-Band, 84GHz – 85.5 GHz

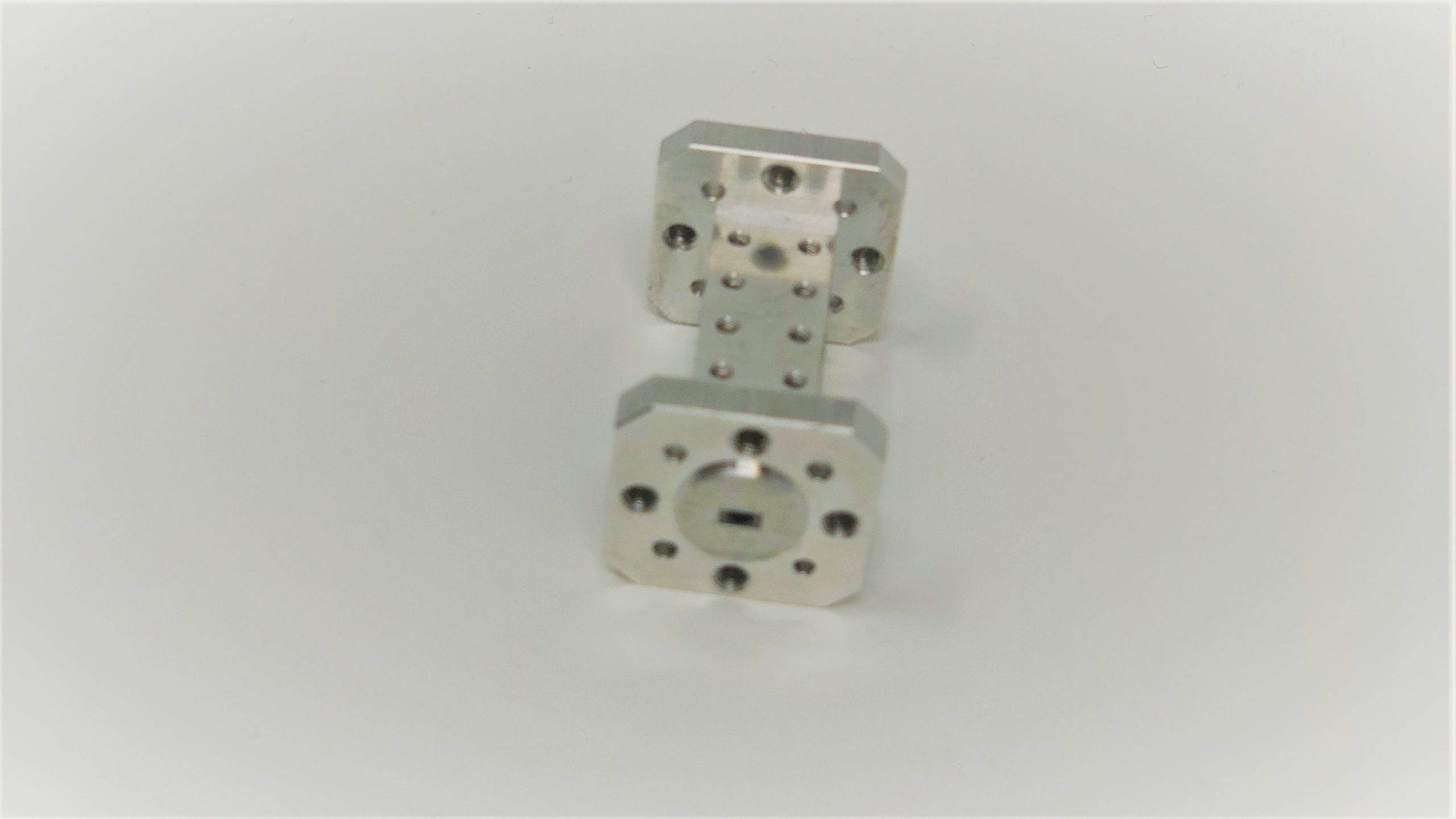

460W-84/387, Passband Insertion Loss 2.3, Passband VSWR 1.5:1

View Product

W-Band, 90GHz – 95 GHz

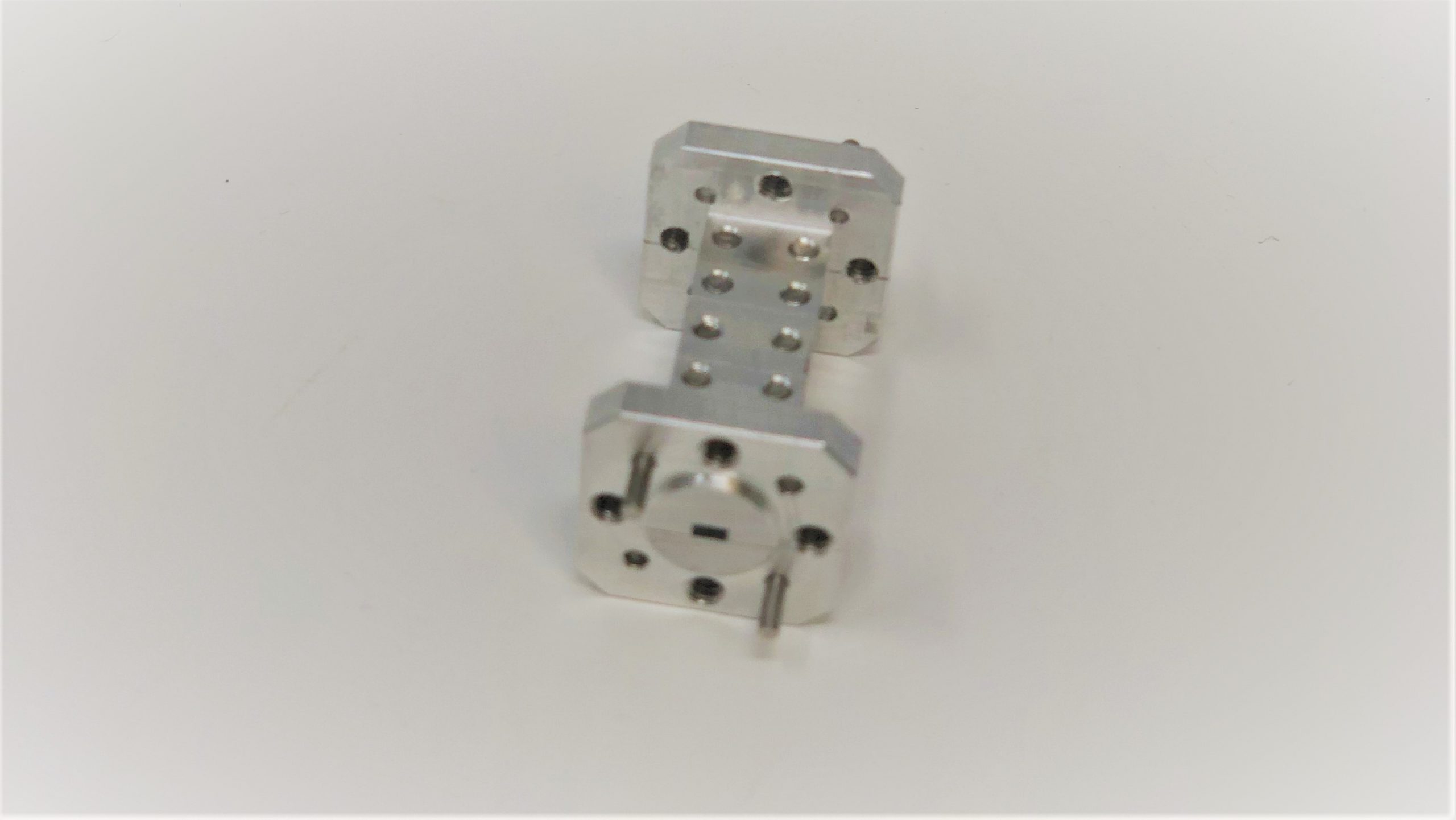

460W-92.5/387, Passband Insertion Loss 2.0, Passband VSWR 1.5:1

View Product

W-Band, 98GHz – 102 GHz

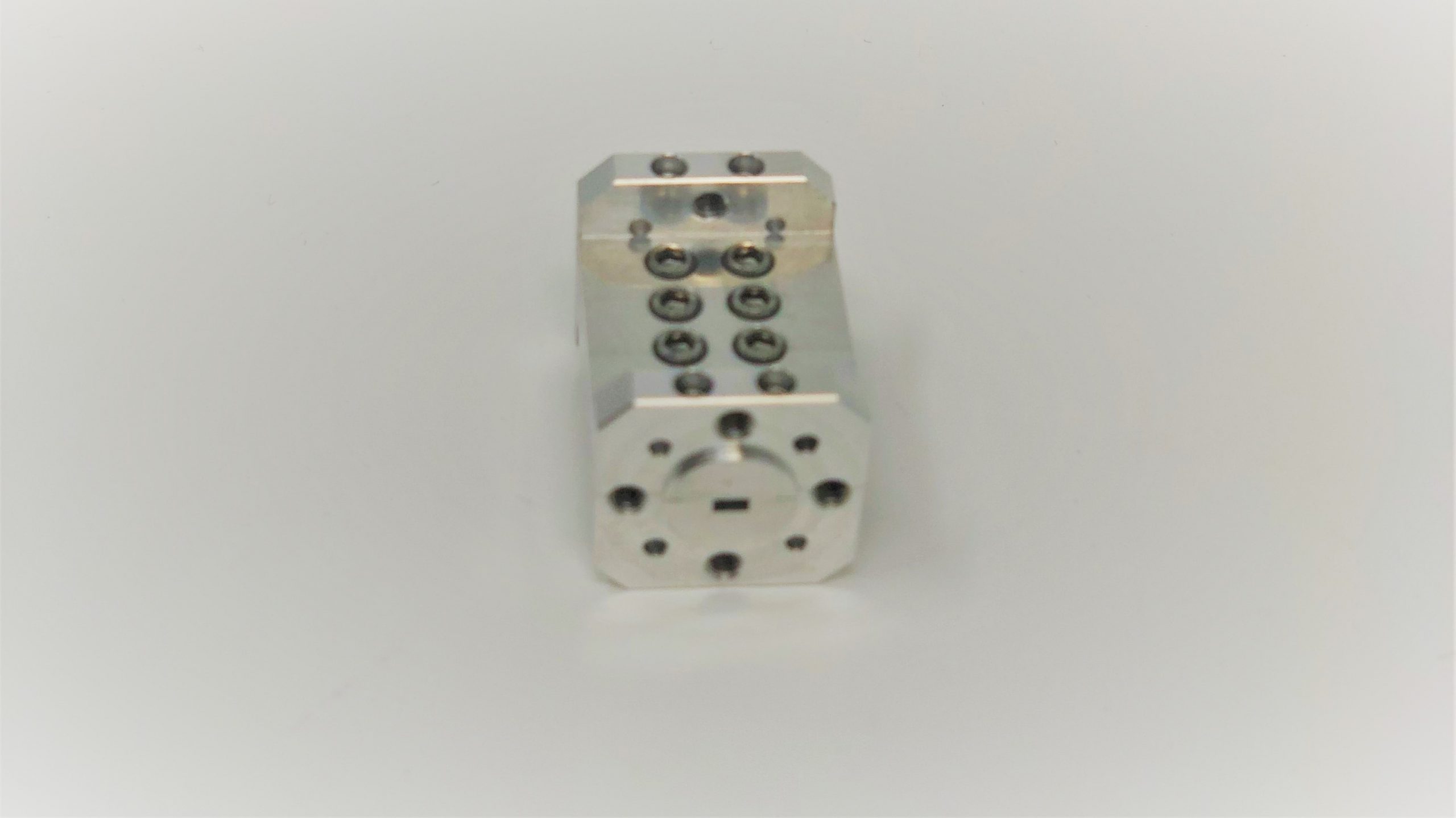

460W-100/387, Passband Insertion Loss 1.7

View Product

W-Band, 100GHz – 110 GHz

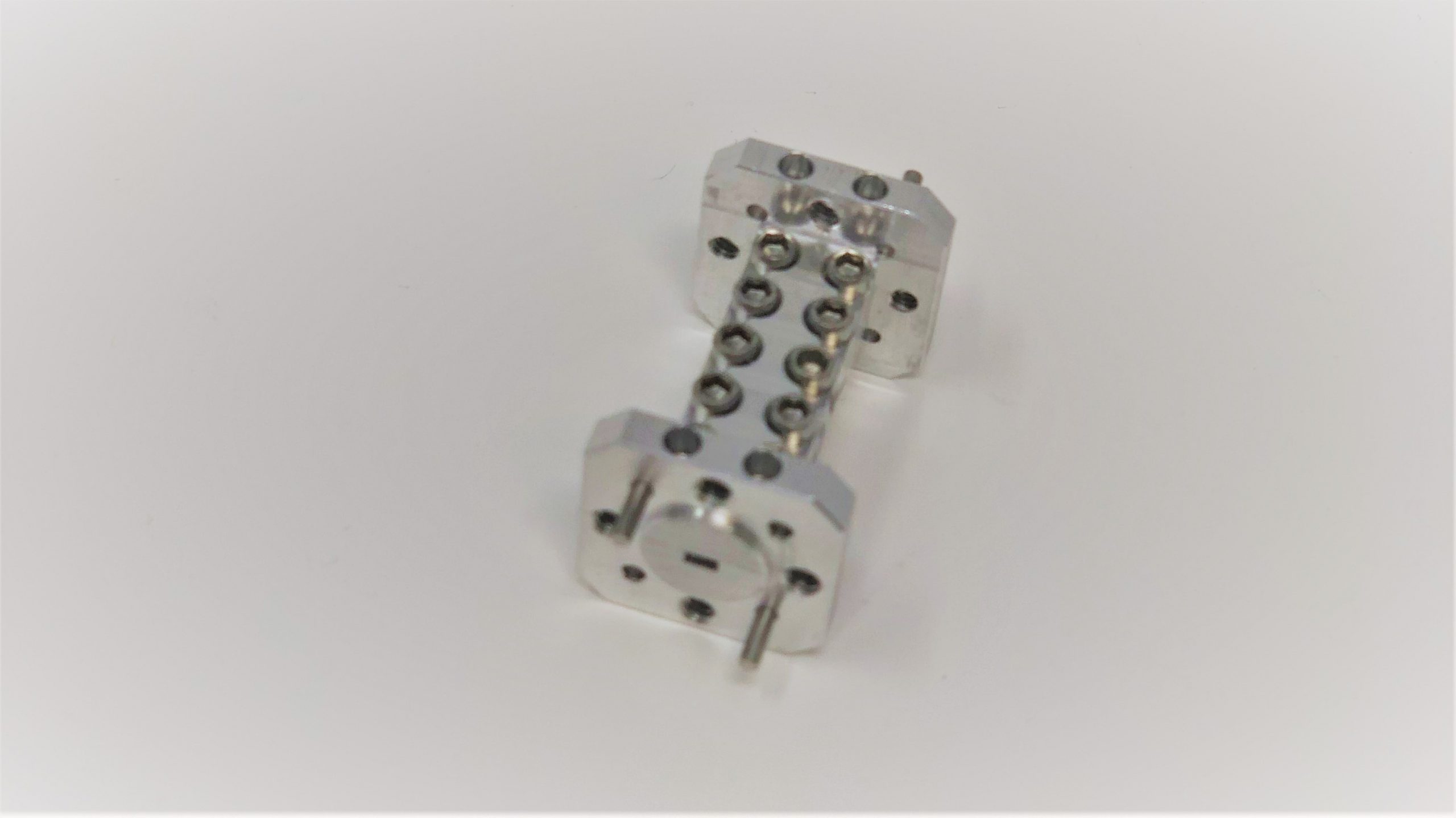

460W-105/40/387 , Passband Insertion Loss 1.5

View Product
