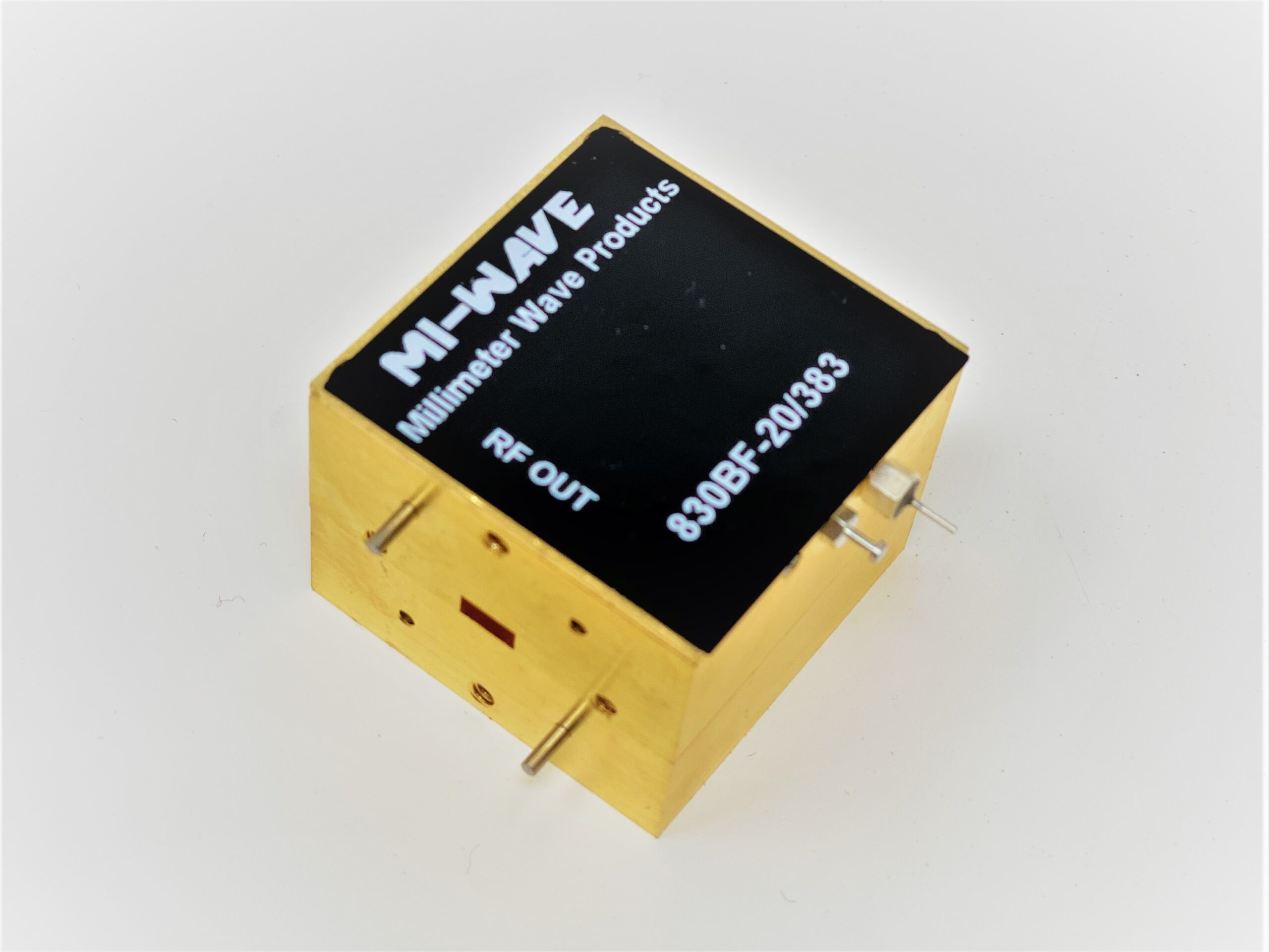

830BF-20/383 Q-Band

33 GHz to 50 GHz, 20 dBm Output Power, 17 GHz Tuning Bandwidth, Mechanically Controlled Oscillators

Description:

Mi-Wave 830 series Mechanically Controlled Oscillators have been designed to be used where a low noise stable frequency source is required. This source can be used for a mixer local oscillator or transmit source.

Higher power options and stabilities are available upon request. Note: Please consult Mi-Wave for further information.

Features

  • Low Noise
  • High Stability
  • 18 to 110 GHz
  • Higher Broadband Tuning
  • Excellent Reliablility

Applications

  • Satellite Data Transmission
  • Satellite Telivision Broadcasting
  • Military Radar Systems
  • Telecommunications Antennas
  • Sensors
  • Radiometers
  • Instrumentation
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

RF Mechanically Controlled Oscillator Sources

Mi-Wave’s 830 Series mechanically controlled oscillator source is available in the 18 to 110GHz frequency range. This source can be used for a mixer local oscillator or transmit source. The 830 Series is a moderate stability source and is commonly found in applications like radar, radiometers, local oscillators, telecommunications, and others. Very high power sources are available.
