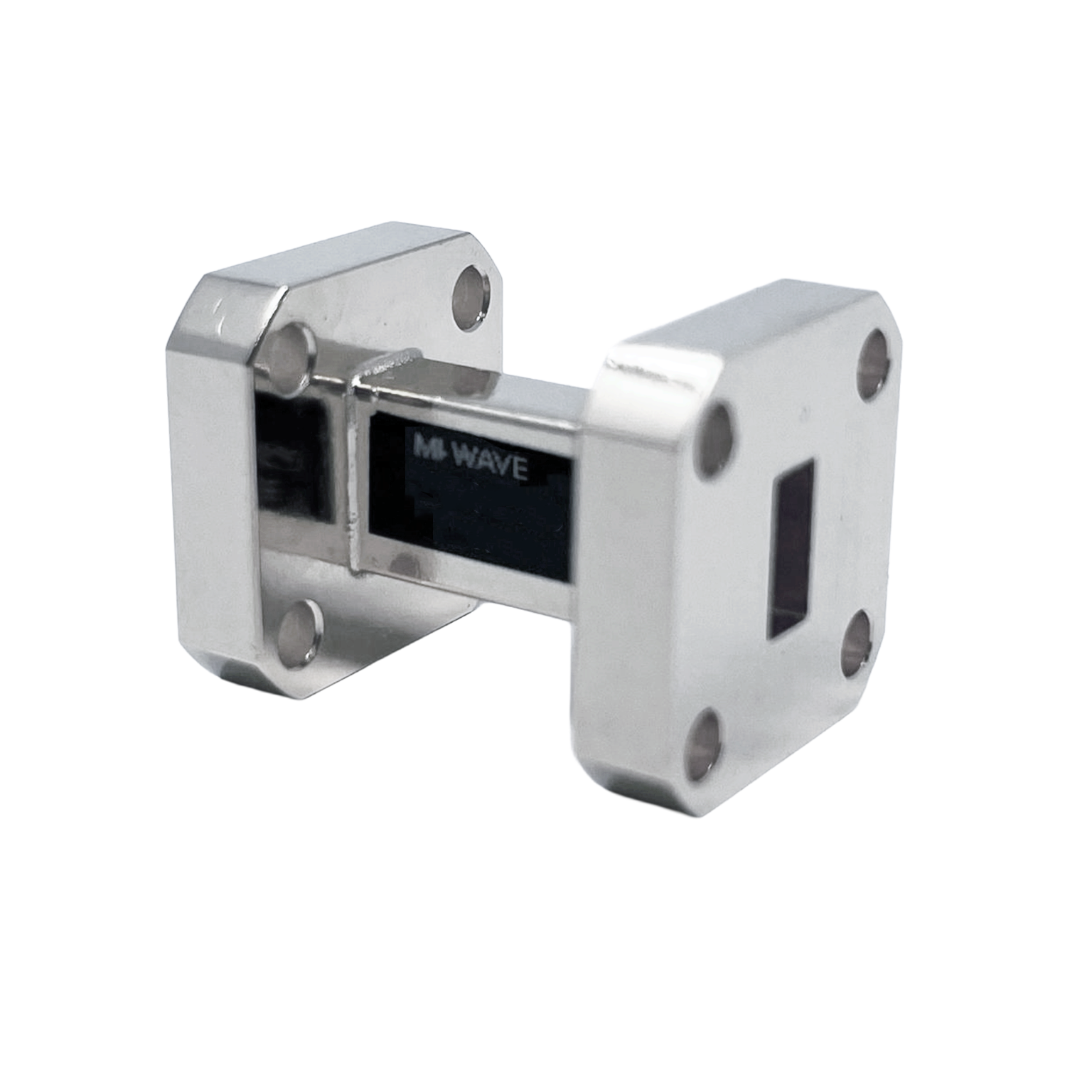

Ka-Band Waveguide Straights

Waveguide Straight Sections (Rectangular Waveguide)

Rectangular waveguide, like Mi-Wave’s 690 Series, is the preferred solution for high-frequency, high-power RF transmission. Instead of using a center conductor, waveguide propagates electromagnetic energy through a hollow metallic structure, resulting in very low loss and high power handling.

At frequencies above roughly 18 GHz and especially into mmWave bands, waveguide becomes significantly more efficient than coaxial cable. It also supports stable propagation modes, making it ideal for precision systems like radar, Satcom, and test environments.

Best for:

• Microwave and mmWave systems
• High-power transmission
• Low-loss signal paths
• Radar, Satcom, and RF test systems

How Waveguide Straight Sections Work

Waveguide straight sections guide electromagnetic energy through a hollow metallic transmission path. Unlike coaxial cable, a waveguide does not use a center conductor. Instead, RF energy propagates as electromagnetic field modes within the waveguide interior.

The geometry of the waveguide determines the operating frequency range and supported propagation modes. When the waveguide dimensions are properly matched to the operating band, RF energy travels efficiently with low loss and minimal reflection.

Straight sections are especially important because they establish the baseline transmission path between system components. Smooth internal surfaces, accurate dimensions, and precise flange alignment reduce discontinuities that could otherwise create impedance mismatch, standing waves, or mode conversion.

At microwave and millimeter-wave frequencies, small mechanical imperfections can significantly affect RF performance. This is why Mi-Wave’s 690 Series uses controlled fabrication processes and precision waveguide construction to maintain stable performance across demanding RF systems.

Applications

RF and Microwave Transmission Lines

Straight waveguide sections provide the primary transmission path between RF components, antennas, test equipment, and subsystem assemblies.

Millimeter-Wave Test Systems

In laboratory and production test environments, precision straight sections help maintain repeatable signal paths and minimize measurement uncertainty.

Radar and Communication Systems

Waveguide straight sections are used in radar, Satcom, and point-to-point communication systems where low-loss high-frequency routing is required.

Antenna Feed Networks

These components connect feed horns, OMTs, filters, bends, twists, and other waveguide devices in antenna and front-end assemblies.

Custom RF Subsystems

The 690 Series supports custom waveguide routing in compact or specialized RF systems requiring specific lengths, materials, or flange types.

Frequently Asked Questions (FAQ)

What is a waveguide straight section?

A waveguide straight section is a length of waveguide used to transmit RF energy between components in microwave and millimeter-wave systems.

What frequency range does the 690 Series support?

Mi-Wave’s 690 Series straight sections are available in standard waveguide sizes from 8 GHz to 500 GHz.

What materials are available?

The 690 Series is available in a variety of materials depending on application requirements. Contact Mi-Wave for material options based on waveguide size and operating environment.

Can custom lengths be made?

Yes. Available lengths depend on raw waveguide stock, but longer sections and custom lengths can be provided upon request.

Are special flanges available?

Yes. Special flange configurations are available upon request for custom system integration.

Why is precision fabrication important?

At high frequencies, small dimensional errors can create discontinuities, reflections, and signal distortion. Precision fabrication helps maintain low-loss, stable RF transmission.

Where are straight waveguide sections used?

They are used in RF test setups, antenna feeds, radar systems, communication links, millimeter-wave subsystems, and custom waveguide assemblies.

Glossary of Waveguide Straight Section Terms

Waveguide Straight Section

A straight length of waveguide used to route microwave or millimeter-wave energy between components.

Rectangular Waveguide

A hollow metallic transmission structure used to guide high-frequency RF signals.

Flanged Waveguide

Waveguide fitted with mechanical flanges for connection to other waveguide components.

MIL-SPEC Waveguide

Waveguide manufactured to military specification standards for dimensional and mechanical consistency.

Flange

The mechanical interface used to bolt waveguide sections and components together.

Discontinuity

An abrupt change in geometry or impedance that can cause reflections and signal distortion.

Insertion Loss

The signal loss introduced as RF energy passes through a component.

VSWR

Voltage Standing Wave Ratio, a measure of impedance matching and reflected power.

Mode Conversion

Unwanted conversion from one propagation mode to another due to imperfections or discontinuities.

Millimeter-Wave

Frequencies generally above 30 GHz where waveguide transmission is commonly used for low-loss routing.

Sub-Terahertz

Frequencies approaching or exceeding 300 GHz, often requiring highly precise waveguide components.

Signal Integrity

The preservation of signal quality as energy travels through an RF transmission path.
