Ka-Band H-Plane Directional Couplers

Each of Mi-Wave’s 559 Series Broadband Directional Couplers are broadwall multi-hole energy coupling devices. The 559 Series couplers are designed in 7 couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements.

Note: Other custom configurations are available upon request

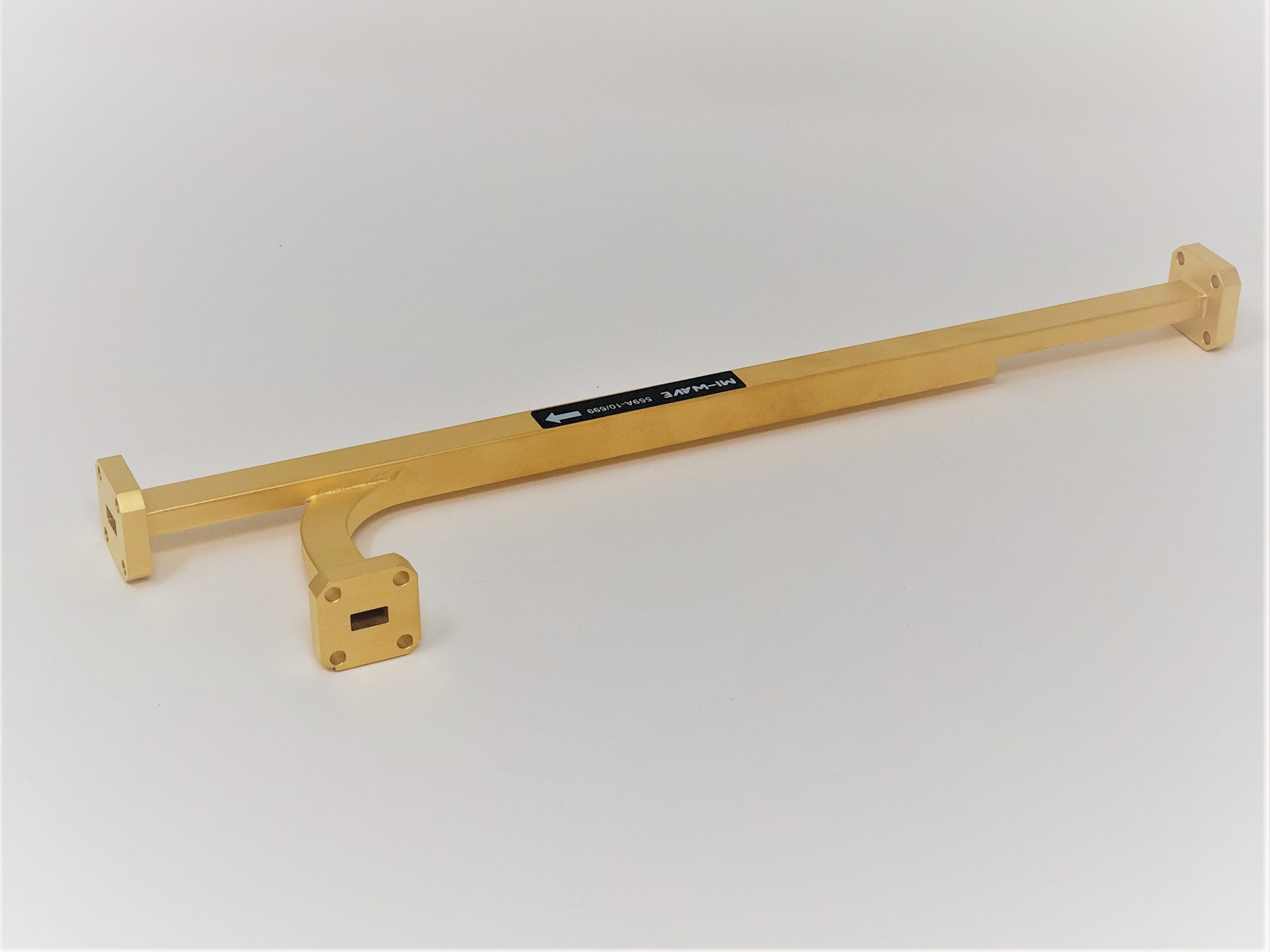

559A-10/599, Coupling 10dB, Insertion Loss, 0.7 dB

Ka-Band, 26.5 – 40 GHz, BroadBand Directional H-Plane Couplers

559A-20/599, Coupling 20dB, Insertion Loss, 0.7 dB

Ka-Band, 26.5 – 40 GHz, BroadBand Directional H-Plane Couplers
