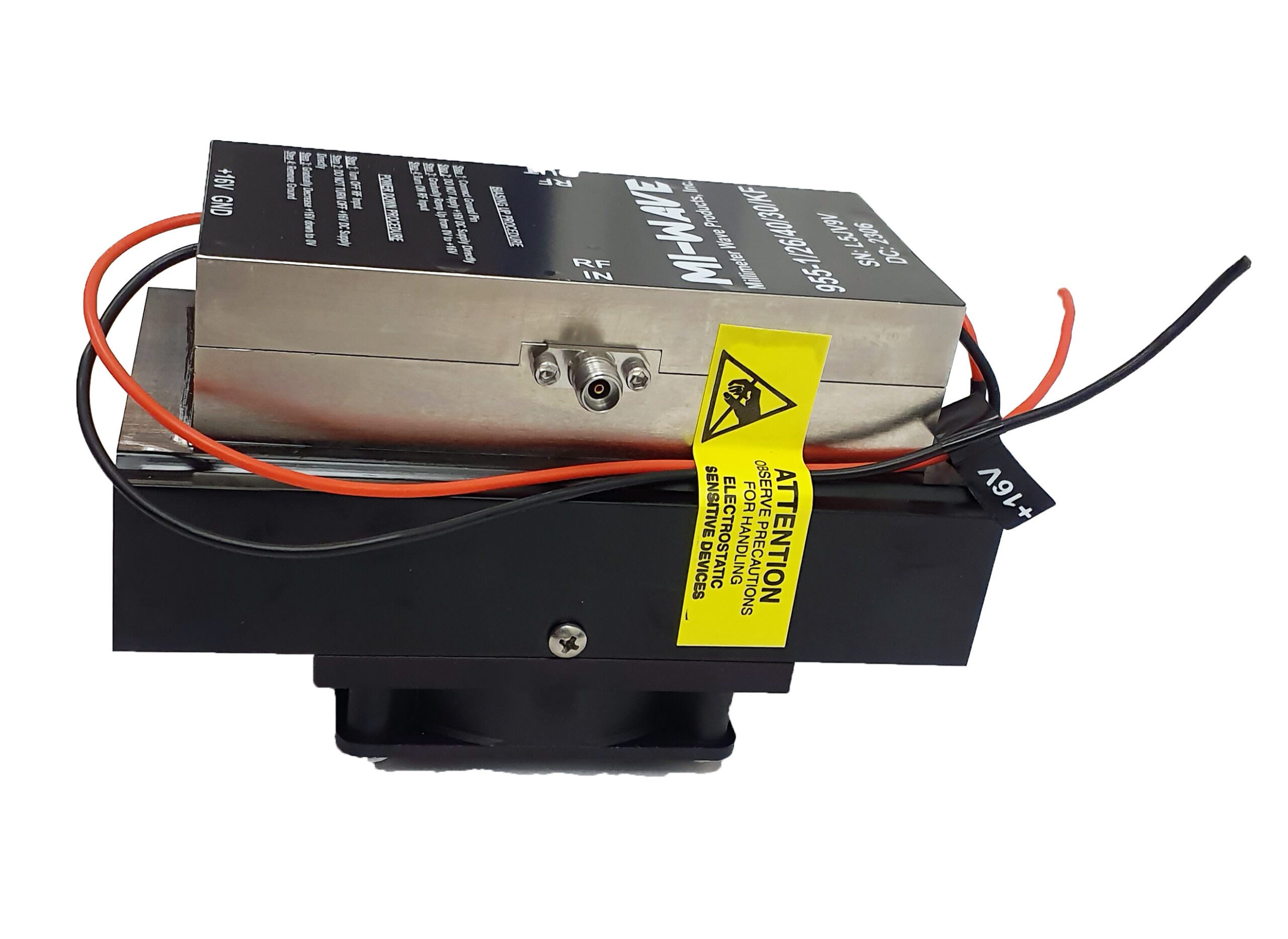

1GHz – 26GHz Power Amplifier

955-1/26/40/30/KF,  Small Signal Gain 35 to 40 dB, Output Power Psat +30 dBm

Description:

Mi-Wave’s 955 series microwave and millimeter wave power amplifiers offer a wide variety of frequency ranges, bandwidths, gain and power outputs. Please consult Mi-Wave for technical specifications and outline drawings.

Power amplifiers are used to convert low power signals to high power signals. These are typically used in the transmit chain to amplify the signal before it is sent out via an antenna.

Features

• High Output Power

• High Gain

• Broadband

• Unconditionally Stable

• Regulated Supply & Bias Sequencing

Applications

• 5G & 6G

• Test & Measurement

• Mobile & Satellite Communications

• Radar Systems

• Weather & Earth Observation

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

Power Amplifiers

Our broadband power amplifiers are generally used in applications for driving the transmission power of the antenna.

Note: Our website contains just a few of the type of RF amplifiers we build. Consult with us for your specific needs.
