G-Band Block Type Directional Couplers

561G-10/387, WR-5, 140GHz – 220GHz, 10dB Coupling, 1.5dB Insertion Loss

Description:

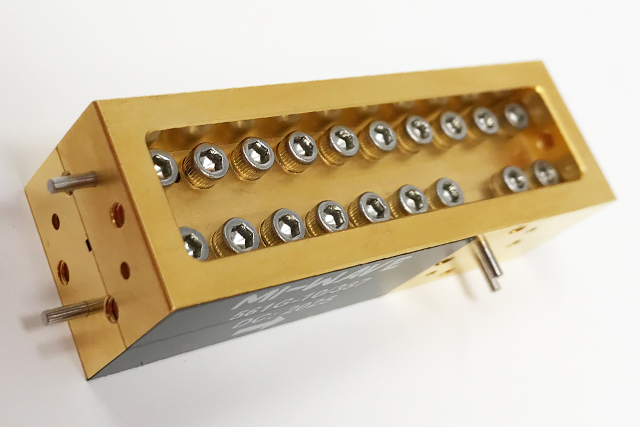

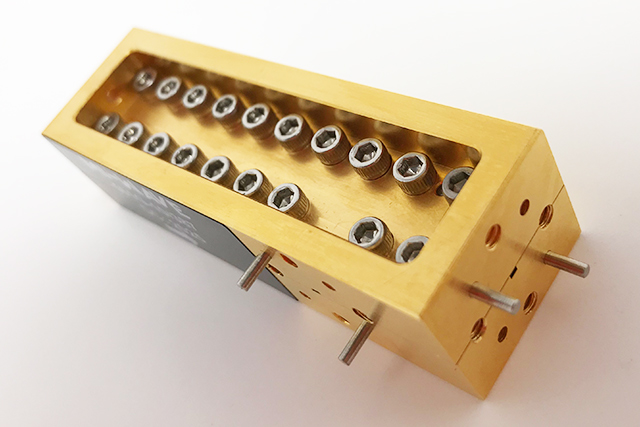

Mi-Wave’s 561G-10/387 Broadband Directional Coupler is broadwall-multi-hole energy-coupling devices operating in 140 to 220 GHz range. This coupler offers a nominal coupling level of 10 dB.

Features

• Full band Operation

• Compact Sizes

• Low VSWR

• Rugged Construction

Applications

• Measurement Systems

• Transmitter Applications / Dummy Loads

• Satellite

• Microwave Radio

• Source Leveling

• 5G & 6G

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

G-Band Block Type Directional Couplers

Our G-band Block Type Directional Couplers are for the spectrum in the millimeter wave range of frequencies from 140 to 220 gigahertz (GHz).

The 561 Series Directional Couplers provide an efficient and convenient means for sampling a finite quantity of power flowing in a transmission line or for injecting a desired signal into the line.

Note: Our website contains just a few of the type of couplers we build. Consult with us for your specific needs.
