Multi-Channel RF Upconverters and Downconverters from X-Band to W-Band and Beyond
Mi-Wave designs and manufactures high-performance multi-channel frequency converters for simultaneous RF signal conversion across X-Band (8–12 GHz), Ku-Band (12–18 GHz), Ka-Band (26–40 GHz), Q-Band (33–50 GHz), V-Band (40–75 GHz), and W-Band (75–110 GHz), with solutions extending beyond W-Band. Our multi-channel portfolio includes RF upconverters, RF downconverters, Block Upconverters (BUCs), Low-Noise Block Downconverters (LNBs), and custom multi-channel RF frequency converters engineered for radar systems, telemetry, 5G and microwave links, test and measurement platforms, satellite communications, and advanced research applications.
Developed through expert custom RF and millimeter-wave design, Mi-Wave multi-channel frequency conversion solutions emphasize stable local oscillator (LO) frequency planning, tight channel-to-channel phase and amplitude matching, precise gain control, and high signal integrity. Available as multi-channel millimeter-wave frequency converters, wideband and narrowband architectures, dual- and multi-polarization systems, and integrated RF modules and subsystems, these solutions deliver low phase noise and high frequency stability in both commercial and ruggedized configurations.

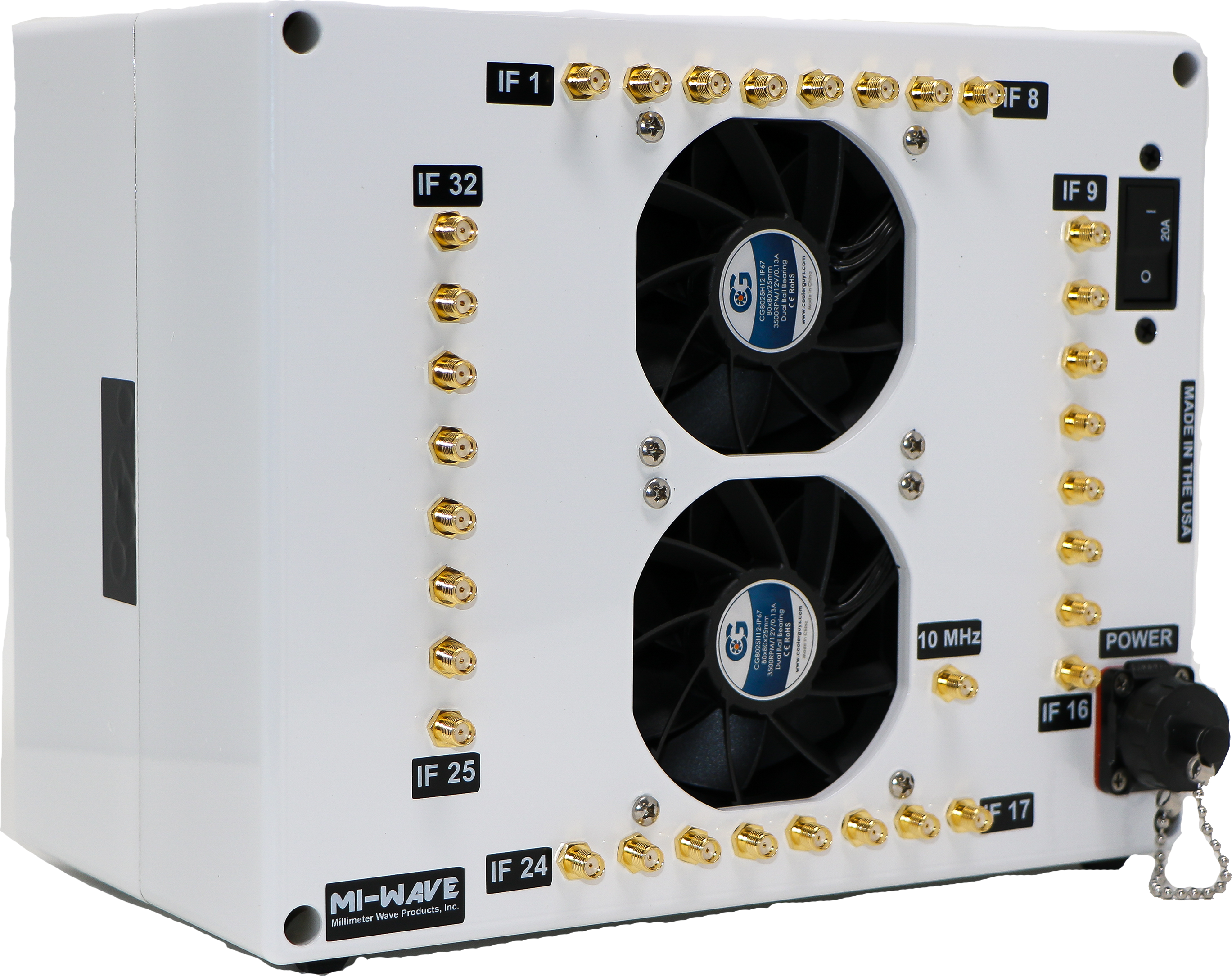

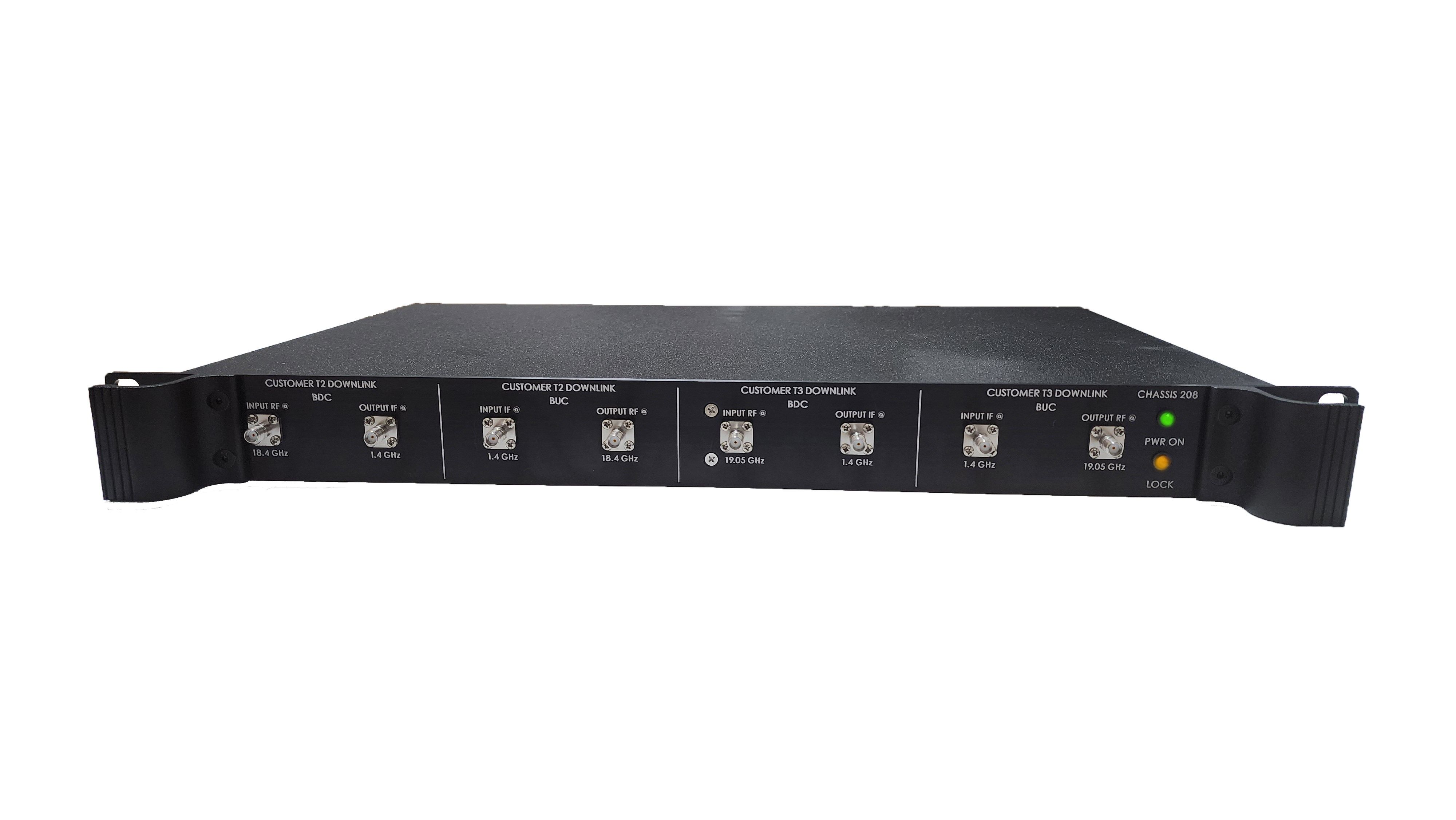

Mi-Wave multi-channel RF converters support parallel signal processing, beamforming, polarization diversity, and multi-carrier operation, forming scalable RF engineering solutions for airborne, ground-based, mobile, and extreme-environment platforms from X-Band through W-Band and beyond.
| Model Number | Band | Description | Frequency (GHz) | Converter Type | # of Channels | Packaging | User Preferences | LINK |
|---|---|---|---|---|---|---|---|---|
| 980-10/385S | C, S, X | Upconverter | 2-18 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 980A-34.5/381 S | Ka | Upconverter | 26.5-40 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980A-35.61 /KF | Ka | Up-Downconverter | 35.61 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970B-38.25/383S | Q | Downconverter | 38.0-38.5 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970A-39.65/599 | Ka | Downconverter | 39.4-39.9 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 980B-43.25/383S | Q | Upconverter | 42.0-43.5 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970U-47.2/51 .4/1.85mmF | U | Downconverter | 47.2-51.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980U B-47.2/51 .4/1.85mmF-PLO | U | Up-Downconverter | 47.2-51.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970V-62.5/385 | V | Downconverter | 70-65 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970E-70.4/86.4/387 | E | Downconverter | 70.4-86.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980W-20/387S | W | Up-Downconverter | 95-100 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC |
RF Frequency Conversion Calculator (GHz)
Calculate RF and image frequencies for RF upconverters and downconverters using GHz units.
Formulas
- High-side LO: RF = LO + IF, Image = LO − IF
- Low-side LO: RF = LO − IF, Image = LO + IF
Image Frequency Calculator (GHz)
Calculate the image frequency for a mixer/downconverter using LO and IF in GHz.
How it works
- Desired RF: LO ± IF (depends on side)
- Image RF: LO ∓ IF (opposite side from desired)
- Separation between desired and image: 2 × IF
Conversion Gain & Output Power Calculator (dBm)
Calculate output power for RF upconverters, downconverters, and frequency conversion chains using dBm and dB.
Formula
- Pout (dBm) = Pin + Conversion Gain + Amplifier Gain − Attenuation
- Net Gain (dB) = Conversion Gain + Amplifier Gain − Attenuation
Cascaded Noise Figure Calculator (Friis)
Calculate total receiver noise figure and total gain for LNA + downconverter + IF stages using Friis.
Formulas (Friis)
- Convert NF(dB) to noise factor: F = 10^(NF/10)
- Convert Gain(dB) to linear: G = 10^(Gain/10)
- Total noise factor: Ftotal = F1 + (F2−1)/G1 + (F3−1)/(G1·G2) + (F4−1)/(G1·G2·G3)
- Total NF(dB) = 10·log10(Ftotal)
- Equivalent noise temperature: Te = (Ftotal−1)·T0, with T0 = 290 K
Frequency Stability Calculator (ppm/ppb → Hz)
Convert oscillator or LO stability (ppm/ppb) into frequency error at a given carrier frequency.
Formula
- Error (Hz) = Frequency (Hz) × Stability
- ppm = 1×10-6, ppb = 1×10-9
dBm ↔ Watts Converter
Convert RF power between dBm, Watts, milliWatts, and dBW for amplifiers, BUCs, and RF chains.
Formulas
- W = 10^((dBm − 30)/10)
- dBm = 10·log10(W) + 30
- dBW = dBm − 30
Free-Space Path Loss (FSPL) Calculator
Estimate free-space path loss for point-to-point links, SatCom, telemetry, and RF system planning.
Formula
- FSPL(dB) = 92.45 + 20·log10(fGHz) + 20·log10(dKm)
- Valid for free-space propagation (no atmospheric/terrain losses included)
Key Features and Performance Benefits
Low Phase Noise
Ultra-low phase noise local oscillator architectures preserve signal integrity during frequency translation. This performance is critical for high-order modulation schemes, narrowband carriers, and systems with strict EVM, BER, and spectral purity requirements, including satellite and advanced radar applications.
Excellent Frequency Stability
High-stability internal and external reference options support long-term frequency accuracy and repeatability across temperature and environmental variations. This capability is ideal for satellite ground equipment, precision measurement systems, and synchronized multi-channel architectures.
Superfine Tuning Resolution
Fine frequency tuning resolution enables precise channel placement and simplified alignment in crowded or regulated spectra. This is especially valuable for laboratory testing, interference mitigation, and dynamic frequency planning.

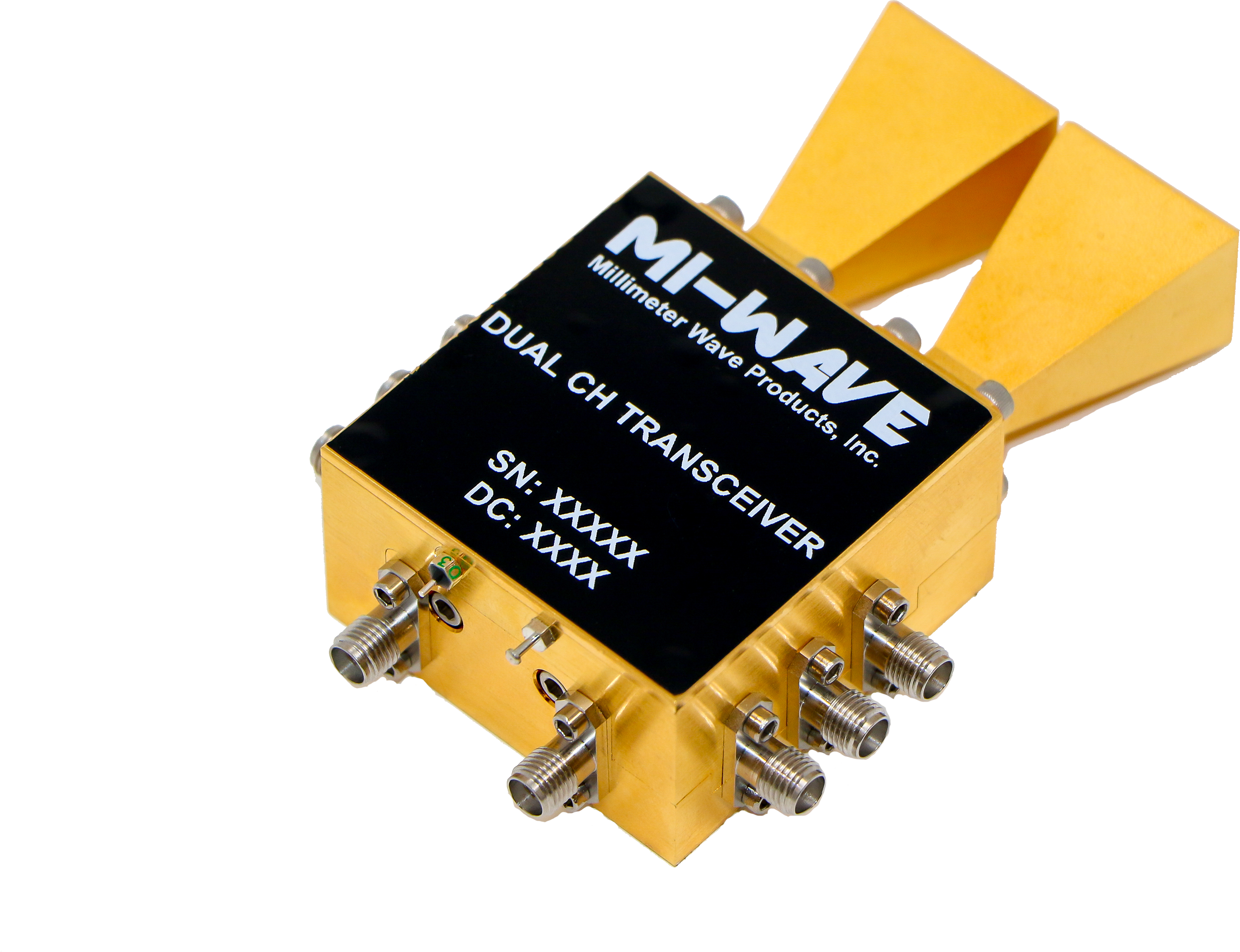

Multi-Channel Configurations Available
Multi-channel upconversion and downconversion options reduce overall system complexity, size, and cabling while supporting parallel signal paths. These architectures are well suited for MIMO systems, phased arrays, beamforming platforms, and multi-carrier SatCom terminals.
Gain Control Options
Integrated digital or analog gain control allows output level optimization across varying input powers and link conditions. This helps prevent compression, improves dynamic range, and simplifies system calibration and deployment.
Low LO Leakage
Careful RF and LO isolation minimizes spurious emissions and unwanted LO leakage, improving spectral compliance and reducing interference in dense RF environments.
High Image Rejection
Advanced filtering and conversion techniques provide strong image suppression, ensuring clean output spectra and improved receiver sensitivity in both transmit and receive applications.
Compact, Space-Efficient Packaging

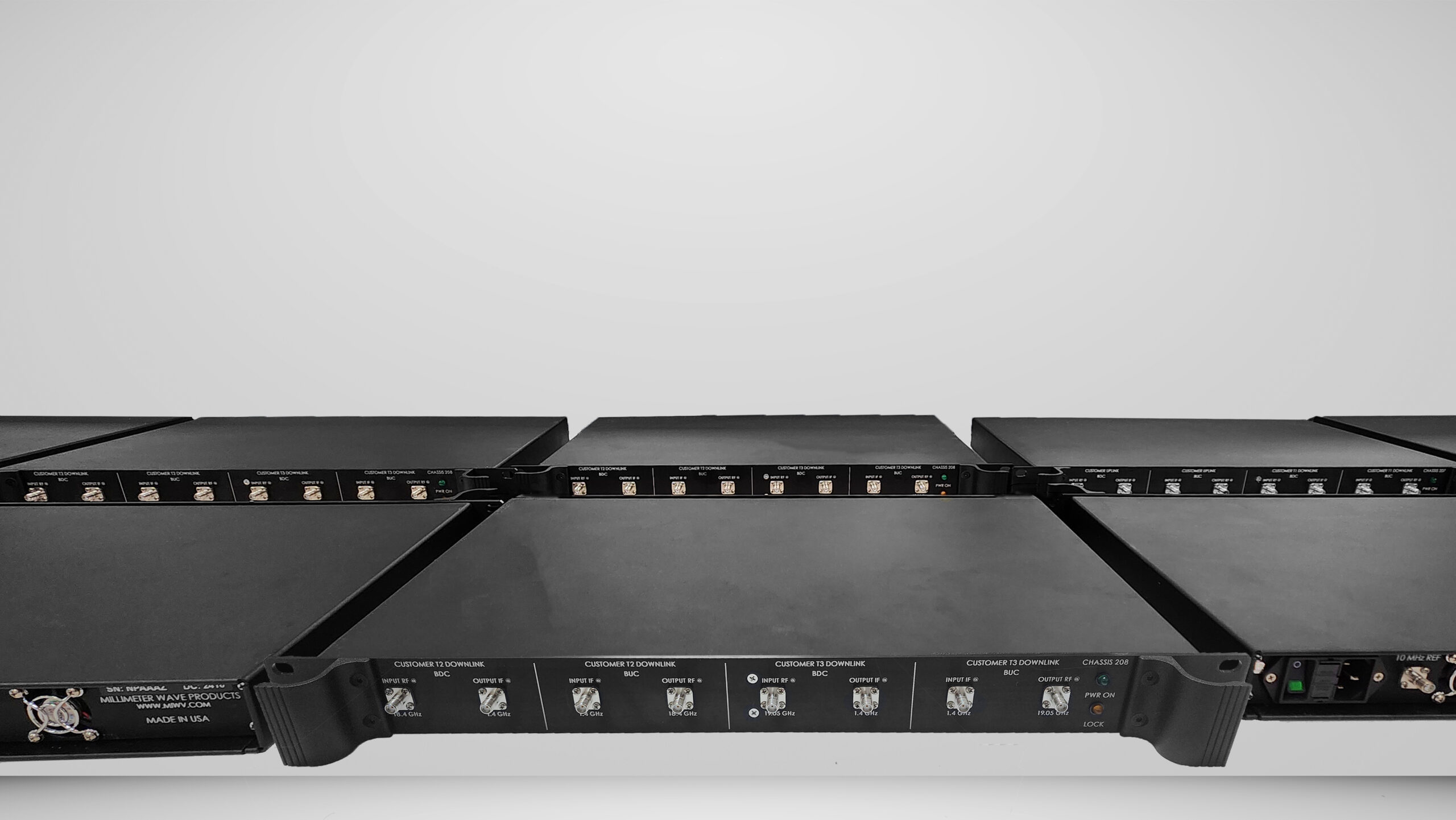

Small, mechanically efficient designs support dense rack installations, shelters, airborne platforms, and outdoor enclosures without compromising RF performance, reliability, or thermal stability.
Applications for RF Upconverters, RF Downconverters & RF Signal Conversion Solutions
RF upconverters, RF downconverters, LNBs, BUCs, and frequency conversion solutions are designed for integration into a wide range of RF, microwave, and millimeter-wave systems where accurate frequency translation, spectral purity, and long-term stability are critical. These products are widely deployed across commercial, industrial, scientific, and defense-grade platforms, supporting fixed, mobile, airborne, and outdoor installations.
Satellite Communication
RF signal conversion products are core building blocks in satellite uplink and downlink architectures, enabling reliable translation between IF and high-frequency RF bands.
Typical satellite communication applications include:
-
Ground-based satellite terminals and gateway stations
-
Teleports and network operation centers
-
VSAT and transportable SatCom terminals
-
Ku-, Ka-, Q-, and V-band uplink and downlink systems
-
Integration with BUCs, LNBs, LNAs, and modems
-
Payload testing and frequency planning support
These solutions help maintain clean spectra, reduce phase noise, and ensure stable links in crowded satellite frequency allocations.
Point-to-Point Radio Communication
RF upconverters and downconverters are commonly used in high-capacity point-to-point radio links for telecom, private networks, and critical infrastructure.
Common use cases include:
-
Microwave and millimeter-wave backhaul links
-
Fixed wireless access and private radio networks
-
High-throughput data transport between sites
-
Urban and rural point-to-point connectivity
-
Spectrum-efficient, narrow-channel radio systems
Precise frequency translation and high image rejection help maximize link reliability and spectral efficiency.
Radar Communication and Radar Systems
In radar communication and sensing platforms, frequency converters play a critical role in signal generation and receiver processing.
Typical radar applications include:
-
Surveillance and tracking radar systems
-
Weather and meteorological radar
-
FMCW and pulse-Doppler radar architectures
-
Ground-based, airborne, and maritime radar platforms
-
Receiver front-end frequency translation and filtering
-
Clean local oscillator distribution for radar transmit chains
Low phase noise and excellent frequency stability improve range resolution, Doppler accuracy, and target discrimination.
Meteorology and Atmospheric Sensing
RF signal conversion solutions are widely used in meteorological and environmental monitoring systems that rely on radar and remote sensing techniques.
Applications include:
-
Weather radar for precipitation and storm tracking
-
Atmospheric profiling and cloud monitoring
-
Climate research and environmental observation systems
-
Doppler radar signal processing chains
-
Long-duration outdoor monitoring installations
Stable frequency performance ensures accurate data collection under varying environmental conditions.
Telemetry
Telemetry systems depend on reliable RF frequency translation to transmit real-time data from remote or mobile platforms.
Common telemetry applications include:
-
Aerospace and flight testing telemetry
-
Defense and range instrumentation
-
Automotive and motorsports testing
-
Industrial monitoring and remote sensing
-
UAV and unmanned platform data links
Low LO leakage and precise tuning support accurate data recovery in dynamic operating environments.
5G and Millimeter-Wave Wireless
RF upconverters and downconverters support development, testing, and deployment of 5G and emerging mmWave wireless technologies.
Typical applications include:
-
5G FR2 base station and small cell testing
-
Beamforming and MIMO system validation
-
mmWave signal generation and analysis
-
Wireless backhaul and access research platforms
-
Prototype and pre-deployment verification systems
Fine tuning resolution and multi-channel options enable flexible system architectures for next-generation wireless networks.
Astronomy and Scientific Research
In radio astronomy and scientific instrumentation, RF signal conversion solutions enable detection and processing of extremely weak signals.
Applications include:
-
Radio astronomy observatories and receiver chains
-
Space science and deep-space signal monitoring
-
University and government research laboratories
-
Spectral analysis and long-duration observations
-
Precision frequency translation for low-noise receivers
Exceptional frequency stability and low phase noise are essential for high-sensitivity scientific measurements.
RF Test, Measurement, and System Integration
Across all industries, RF upconverters and downconverters are widely used in laboratory, production, and system integration environments.
Typical uses include:
-
RF and mmWave test benches
-
Signal generators and receiver test setups
-
Automated test equipment and calibration systems
-
Device characterization and validation
-
System-level integration and troubleshooting
These solutions provide reliable, repeatable performance for both R&D and manufacturing workflows.
System Performance and Signal Integrity Benefits
Across all applications, RF signal conversion solutions help:
-
Maintain spectral purity and signal integrity
-
Reduce spurious responses and image products
-
Improve system dynamic range
-
Support stable, repeatable frequency translation
-
Enable scalable and modular RF architectures
RF upconverters, RF downconverters, LNBs, BUCs, and frequency converters serve as foundational components in modern RF, microwave, and millimeter-wave systems where performance and reliability are essential.
Multi-Channel RF Upconverter and Downconverter FAQ
These quick answers cover multi-channel RF upconverters, RF downconverters, BUCs, LNBs, and frequency conversion architectures used in SatCom, phased arrays, radar, telemetry, RF test, and 5G/mmWave systems.
What is a multi-channel RF frequency converter?
A multi-channel RF frequency converter performs simultaneous upconversion, downconversion, or both across multiple independent signal paths within a single unit. This allows parallel processing of multiple carriers, beams, or polarizations while maintaining consistent gain, frequency stability, and synchronization across channels.
What does a multi-channel RF upconverter do?
A multi-channel RF upconverter translates multiple lower-frequency IF or L-band signals to higher RF or millimeter-wave frequencies at the same time. Each channel can support an independent carrier, making this architecture ideal for multi-carrier SatCom, phased-array transmitters, and MIMO systems.
What does a multi-channel RF downconverter do?
A multi-channel RF downconverter receives multiple high-frequency RF inputs and converts them in parallel to lower intermediate frequencies that are easier to filter, amplify, digitize, and demodulate. This is commonly used in multi-beam receivers, dual-polarization systems, and radar front ends.
What is the difference between single-channel and multi-channel converters?
Single-channel converters process one signal path at a time, while multi-channel converters support multiple synchronized paths in a single platform. Multi-channel designs reduce system size, cabling, and LO distribution complexity while improving channel-to-channel consistency.
More Technical Questions
How are channels synchronized in a multi-channel converter?
Can each channel be tuned or controlled independently?
What IF frequencies are commonly used in multi-channel RF systems?
Why is image rejection especially important in multi-channel systems?
What does low phase noise mean in a multi-channel converter?
Why is a 10 MHz reference input used?
What is conversion gain, and how do gain control and digital attenuation help?
What does AGC do in a multi-channel frequency conversion chain?
What is instantaneous bandwidth?
Where are multi-channel RF frequency converters used?
Glossary of RF Frequency Conversion Terms
Core Frequency Conversion Definitions
Upconversion
The process of translating a lower-frequency signal, typically intermediate frequency (IF) or L-band, to a higher RF, microwave, or millimeter-wave frequency using a mixer and local oscillator (LO).
Upconversion is used in transmit chains for satellite communication, radar systems, telemetry links, point-to-point radio, and wireless infrastructure, and is commonly followed by RF power amplification.
Downconversion
The process of translating a high-frequency RF signal down to a lower intermediate frequency for easier amplification, filtering, digitization, and demodulation.
Downconversion is fundamental in receiver architectures, particularly where low noise figure and high dynamic range are required.
Frequency Converter
A general RF component that performs upconversion, downconversion, or both, enabling frequency translation between IF, RF, and millimeter-wave bands. Frequency converters form the core of modern RF signal chains in communications, sensing, and test systems.
Intermediate Frequency (IF)
A fixed or standardized frequency used between RF and baseband stages to simplify filtering, amplification, and signal processing.
Common IFs include 70 MHz, 140 MHz, and L-band (950–2150 MHz).
IF Bandwidth
The usable frequency range around the intermediate frequency that can be processed without distortion or degradation. IF bandwidth determines supported modulation schemes, channel density, and overall system flexibility.
Frequency Inversion
A condition where the spectral order of a signal is reversed during the frequency conversion process. Frequency inversion must be accounted for in system design to ensure proper demodulation and signal interpretation.
RF Frequency
The operating radio frequency after conversion, typically ranging from X-band through millimeter-wave bands such as Ku-, Ka-, Q-, and V-band.
Channel Spacing
The frequency separation between adjacent carriers or channels. Proper channel spacing is critical in multi-carrier and multi-channel systems to prevent adjacent-channel interference.
Converter Types, Channels, and Packaging
Converter Type
Defines the frequency conversion approach and physical implementation.
Synthesized Converter
Uses a digitally controlled synthesizer to generate the local oscillator. Synthesized converters provide fine tuning resolution, high frequency accuracy, repeatability, and agile frequency selection, making them well suited for multi-carrier and frequency-agile systems.
Block Converter
A self-contained unit that integrates frequency conversion, filtering, amplification, and LO generation. Commonly implemented as Block Upconverters (BUCs) and Low-Noise Block Downconverters (LNBs) for satellite and microwave systems.
Number of Channels
The number of independent frequency conversion paths within a single unit.
Single-Channel
One conversion path for dedicated or fixed links.
Multi-Channel (1, 2, 3, or 4 Channels)
Multiple parallel conversion paths used in multi-carrier systems, phased arrays, MIMO architectures, beamforming platforms, and spectrum monitoring systems.
Multichannel Operation
A configuration where multiple independent frequency conversion paths operate in parallel within a single unit, often sharing reference and LO resources for synchronization.
Packaging
The mechanical form factor and intended operating environment.
Commercial Rack
Rack-mount enclosures designed for indoor laboratories, test benches, data centers, and satellite ground stations.
Environmental or Ruggedized
Sealed enclosures designed for outdoor, rooftop, mobile, airborne, or harsh environments, with extended temperature operation.
Local Oscillator and Mixing Terms
Local Oscillator (LO)
A stable signal source used in a mixer to translate frequencies. LO quality directly impacts phase noise, spurious performance, image rejection, and overall system stability.
Internal Reference Oscillator
A built-in frequency reference used to stabilize the LO when an external reference is not provided. Internal references offer convenience but typically lower long-term accuracy than external references.
Reference Input
An external frequency reference, commonly 10 MHz, used to lock the LO for improved stability, phase coherence, and synchronization across multiple systems.
Phase Coherence
The ability of multiple signals or channels to maintain a fixed phase relationship. Phase coherence is critical in multi-channel converters, phased arrays, beamforming systems, and coherent radar architectures.
Channel-to-Channel Phase Matching
A measure of phase alignment consistency between channels in a multi-channel converter. Tight phase matching is essential for polarization integrity, beam steering, and array performance.
Mixer
A nonlinear RF component that combines the input signal and LO to produce sum and difference frequencies, enabling frequency conversion.
LO Leakage
Unwanted LO energy that appears at the RF or IF ports. Low LO leakage is critical for minimizing spurious emissions and system interference.
Image Frequency
An unwanted frequency that also converts to the same IF during mixing and must be suppressed through filtering or image-reject architectures.
Image Rejection
The ability of a frequency converter to suppress unwanted image frequencies. High image rejection improves receiver sensitivity, spectral purity, and dynamic range.
Stability and Signal Quality Metrics
Phase Noise
Short-term frequency fluctuations of the LO or output signal, expressed in dBc/Hz. Low phase noise is essential for high-order modulation, low EVM, radar resolution, and clean spectra.
Frequency Stability
The ability of a converter or LO to maintain accurate frequency over time, temperature, and environmental changes, often specified in ppm or ppb.
Spurious Responses (Spurs)
Unwanted discrete frequency components generated by mixing products, harmonics, and nonlinearities, which must be minimized in dense RF environments.
Gain, Linearity, and Dynamic Range
Conversion Gain
The gain or loss introduced by the frequency conversion process, specified in dB.
Gain Control
An adjustable feature that allows optimization of signal levels to prevent compression and improve system dynamic range.
Digital Attenuation
Digitally controlled attenuation that enables precise, repeatable gain adjustment and remote system control.
Automatic Gain Control (AGC)
A control function that automatically adjusts gain or attenuation to maintain a consistent output level despite variations in input signal strength.
Input Power Range
The acceptable signal level range at the converter input over which performance specifications are maintained. Exceeding this range can result in compression or distortion.
Output Power (P1dB)
The output power level at which gain compression reaches 1 dB, defining the linear operating range of the converter.
Third-Order Intercept Point (IP3 / OIP3)
A measure of linearity indicating resistance to intermodulation distortion. Higher IP3 values improve performance in multi-carrier and high-dynamic-range systems.
Noise Figure (NF)
A measure of how much noise a component adds to the signal. Low noise figure is especially critical in downconverters, LNBs, and receiver front ends.
Linearity
The ability of the converter to process signals without distortion. High linearity reduces intermodulation products and spurious emissions.
Dynamic Range
The range between the smallest and largest signal levels that can be processed without excessive noise or distortion.
Bandwidth and Channel Characteristics
Bandwidth
The frequency range over which the converter can operate without performance degradation.
Instantaneous Bandwidth
The frequency range over which the converter can operate at a given tuning setting without retuning, supporting wideband and multi-carrier signals.
Tuning Step Size
The minimum frequency increment by which the LO or output frequency can be adjusted.
Hardware and System Architectures
Block Upconverter (BUC)
A transmit module that upconverts IF or L-band signals to microwave or millimeter-wave frequencies for satellite uplinks and point-to-point links, often integrating RF power amplification.
Low-Noise Block Downconverter (LNB)
A receive module that amplifies and downconverts high-frequency RF signals to IF or L-band with minimal added noise.
Heterodyne Architecture
A frequency conversion approach using one or more mixing stages and intermediate frequencies to improve selectivity and image rejection.
Direct Conversion
A receiver architecture that converts RF directly to baseband without an intermediate frequency stage.
Frequency Plan
The defined relationship between RF, IF, and LO frequencies across a system. Proper frequency planning minimizes spurs, images, and interference.
Multi-Carrier Operation
The ability to process multiple carriers simultaneously within the same frequency band.
Beamforming Support
Architectural capability that enables phase- and amplitude-controlled signal paths used in electronically steered antenna arrays.
Measurement and Performance Parameters
S-Parameters
Scattering parameters used to characterize RF performance. For converters, S21 represents conversion gain or loss, while S11 and S22 represent input and output matching.
Return Loss (S11 / S22)
A measure of impedance matching at the input or output ports. Higher return loss indicates better matching and lower reflections.
VSWR (Voltage Standing Wave Ratio)
A ratio derived from return loss that indicates impedance matching quality. Lower VSWR values correspond to improved power transfer.
Group Delay
The frequency-dependent time delay introduced by conversion and filtering stages. Excessive variation can distort wideband or digitally modulated signals.
Mechanical, Interface, and Environmental Terms
Waveguide Interface
A high-frequency RF interface used at millimeter-wave bands to minimize loss and maintain signal integrity. Common examples include WR-28, WR-22, WR-15, and WR-10.
Flange Standard
Defines the mechanical mating interface of a waveguide connection, such as UG-383, UG-599, or UG-387, ensuring compatibility between RF components.
Control Interface
The electrical interface used for configuration and monitoring, such as Ethernet, RS-232, RS-485, USB, or discrete logic control.
Operating Temperature Range
The temperature range over which RF performance specifications are guaranteed.
Storage Temperature Range
The allowable temperature range when the unit is not powered.
MTBF (Mean Time Between Failures)
A statistical measure of reliability indicating expected operational lifetime under normal conditions.
Application and System-Level Terms
Receiver Front-End Protection
The use of frequency converters and filtering to prevent strong out-of-band signals from overloading LNAs and mixers.
Spectral Purity
The cleanliness of the output spectrum, including low phase noise, low spurious content, and strong image suppression.
Interference Mitigation
Reducing the impact of adjacent-channel signals, harmonics, and unwanted emissions through proper frequency conversion and filtering.
Synchronization
The alignment of frequency and phase across multiple converters or channels, often achieved using a shared reference source.
Regulatory Compliance
Ensuring frequency-converted signals meet spectral mask, emission, and interference requirements imposed by regulatory authorities.
Multi-Channel RF Upconverters and Downconverters
Multi-Channel RF Frequency Conversion Solutions
Multi-channel RF upconverters and downconverters are essential components in advanced RF, microwave, and millimeter-wave systems that require simultaneous processing of multiple signals or carriers. Their primary role is to perform parallel frequency translation, converting multiple input channels from one frequency range to another while maintaining tight control over phase, gain, and spectral purity across all channels.
These multi-channel frequency conversion solutions are widely used in satellite communications, radar systems, point-to-point radio links, telemetry, 5G and mmWave wireless, radio astronomy, meteorology, electronic warfare, phased-array systems, and RF test and measurement platforms, where scalability, synchronization, and repeatable performance are critical.
Multi-Channel RF Upconverters
A multi-channel RF upconverter accepts multiple lower-frequency input signals, typically intermediate frequency (IF) or L-band signals, and simultaneously converts them to higher RF, microwave, or millimeter-wave output frequencies suitable for transmission. Common IF inputs include 70 MHz, 140 MHz, and 950–2150 MHz, while RF outputs can span X-band through Ku-, Ka-, Q-, V-, and higher mmWave bands.
In transmit architectures, each upconverted channel is typically followed by its own RF power amplifier (PA), enabling independent or coordinated transmission paths. When multi-channel RF upconversion and amplification are integrated into a single enclosure, the system may function as a multi-channel BUC or transmit module, supporting complex link architectures.
Multi-channel RF upconverters are commonly used in:
-
Satellite uplinks and gateway stations supporting multiple carriers
-
VSAT hubs and high-throughput satellite (HTS) systems
-
Dual- or multi-polarization transmit chains using OMTs
-
Phased-array and beamforming transmit architectures
-
Multi-carrier microwave and millimeter-wave point-to-point links
-
Radar transmit systems requiring parallel signal paths
-
RF and mmWave test signal generation with multiple synchronized outputs
Key performance requirements for multi-channel RF upconverters include low phase noise, excellent frequency stability, tight channel-to-channel phase and amplitude matching, high image rejection, low spurious emissions, and independent or coordinated gain control to ensure clean spectral performance and regulatory compliance.
Multi-Channel RF Downconverters
Multi-channel RF downconverters perform the inverse operation, receiving multiple high-frequency RF or millimeter-wave signals and converting them in parallel to lower intermediate frequencies for filtering, amplification, digitization, or demodulation. This architecture is fundamental in systems that must process multiple beams, polarizations, or frequency channels simultaneously.
In sensitive receiver systems, each downconversion channel may be paired with its own low noise amplifier (LNA) to preserve weak signal integrity. When LNAs and downconverters are integrated across multiple channels in a single assembly, the system may function as a multi-channel LNB or receiver front end.
Multi-channel RF downconverters are widely used in:
-
Satellite communication downlinks and gateway receivers
-
Dual-polarization and multi-beam receiver systems
-
Telemetry, tracking, and range instrumentation
-
Radar receivers and sensing platforms
-
Radio astronomy and scientific instrumentation
-
Meteorological radar and atmospheric monitoring systems
-
Multi-channel RF and mmWave test and measurement setups
Critical performance parameters for multi-channel RF downconverters include low noise figure, high image rejection, low LO leakage, stable frequency conversion, channel-to-channel isolation, and tight amplitude and phase matching to ensure accurate signal recovery and system-level coherence.
Multi-Channel RF Signal Conversion Systems
Together, multi-channel RF upconverters, multi-channel RF downconverters, BUCs, and LNBs form the backbone of modern scalable RF signal conversion systems. By supporting multiple parallel frequency paths within a single platform, these solutions enable higher capacity, redundancy, beamforming, polarization diversity, and advanced modulation schemes.
Multi-channel RF frequency conversion solutions support commercial, industrial, scientific, and defense-grade platforms, including fixed, mobile, airborne, shipborne, and outdoor installations. They are critical to the performance, reliability, and scalability of today’s high-frequency communication, sensing, and research systems.
Build Your Multi-Channel RF Upconverter or Downconverter Solution
With over 35 years of experience in the microwave and millimeter-wave RF industry, Mi-Wave supports the full lifecycle of multi-channel RF frequency conversion systems, from concept and prototyping through production and deployment. Our team works closely with customers to design and manufacture custom multi-channel upconverters, downconverters, transceivers, LNBs, BUCs, and integrated RF sub-assemblies tailored to specific system requirements.
Mi-Wave has designed and delivered numerous custom multi-channel RF and mmWave solutions for complex systems requiring precise frequency translation, tight channel matching, and robust mechanical integration. Contact us to discuss your multi-channel RF upconverter or downconverter needs and learn how Mi-Wave can help engineer, manufacture, and deliver high-performance RF assemblies with confidence.
Build Your RF Upconverter or Downconverter Needs and more!
Our team brings over 35 years of experience in the microwave and millimeter-wave RF industry, spanning design, prototyping, manufacturing, and system integration. We work closely with customers to help turn concepts into production-ready solutions, supporting a wide range of RF technologies. Contact us today to discuss RF upconverters, RF downconverters, transceivers, LNBs, low noise block upconverters, and custom RF sub-assembly systems.
Mi-Wave has designed, built, and supported numerous custom RF and millimeter-wave projects that require upconverters, downconverters, and integrated RF components within complex systems. From initial design and prototyping through full-scale manufacturing, our team supports every step of the development process. Contact us to discuss your project requirements and let Mi-Wave help engineer, manufacture, and deliver your RF assemblies with confidence.
