Description
Mi-Wave RF upconverters and downconverters provide reliable frequency conversion solutions for microwave and millimeter-wave systems. The 970V-62.5/385 V-Band Downconverter is engineered to translate V-band RF signals from 60 to 65 GHz to a lower intermediate frequency range of 1.5 to 5 GHz, supporting receiver architectures where stable frequency translation and straightforward system integration are required.
The downconversion process is accomplished using an external local oscillator operating over the same 60 to 65 GHz range, enabling flexible system configuration and compatibility with existing V-band signal sources. With a moderate conversion gain and controlled output power, the unit supports downstream IF processing, amplification, and analysis without additional frequency translation stages.
Designed for professional RF environments, the 970V-62.5/385 features WR-15 waveguide interfaces for both RF and LO ports, ensuring low-loss signal handling at V-band frequencies. A coaxial SMA IF output allows seamless integration with common IF receivers, spectrum analyzers, and signal processing equipment.
Mi-Wave V-band downconverter platforms are used in communication research, high-frequency instrumentation, and experimental RF systems where dependable V-band signal translation and mechanical robustness are essential.

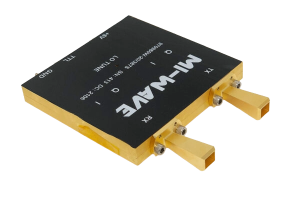

*Actual product may be different from the image shown per customers specifcations
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
Key Specifications (Summary)
RF Input Frequency: 60 – 65 GHz (V-band)
LO Frequency: 60 – 65 GHz
IF Output Frequency: 1.5 – 5 GHz
LO Drive Level: 0 dBm
RF Downconversion Performance
Conversion Gain: 15 dB
Output Power: 10 dBm
LO-IF Isolation: 25 dB
Control and Power
DC Bias: +5 V @ 350 mA
Mechanical and Interfaces
RF Input Port: WR-15 Waveguide
RF Flange: UG-385/U
LO Port: WR-15 Waveguide
LO Flange: UG-385/U
IF Output Port: SMA (Female)
RF Frequency Converter Calculators
These calculators support RF upconverter and downconverter planning, including IF and LO frequency planning, high-side vs low-side injection, image frequency checks, conversion gain math, cascaded gain/noise figure, and output level estimates for transmit and receive chains.
Jump to: LO / IF Planner · Image Frequency · Output Level · Cascade Gain & NF · Mixing Spurs · Return Loss ↔ VSWR
1) LO / IF Frequency Planner (Upconversion & Downconversion)
Compute the missing frequency for a mixer stage. Choose a mode (downconversion or upconversion) and an injection type (high-side or low-side). This supports common heterodyne planning for IF↔RF conversion.
2) Image Frequency Calculator (Given LO and IF)
For a superheterodyne stage, the image is the unwanted RF that converts to the same IF as the desired signal. This tool computes desired RF and image RF for a selected injection scheme.
3) Output Level Estimator (Input dBm + Conversion Gain/Loss)
Estimate converter output level from input level and conversion gain (or loss). Useful for keeping stages out of compression and aligning IF/RF levels into PAs, LNAs, and digitizers.
4) Cascaded Gain & Noise Figure (Friis)
Estimate total gain and cascaded noise figure using Friis. Enter up to 4 stages (LNA, filter, converter, IF amp, etc.). Gains in dB; NFs in dB.
5) Mixer Spur Finder (m·LO ± n·RF)
Identify common mixing products near IF. Enter RF and LO and set max order. Outputs a list of spur frequencies. This is a planning helper for “spurious responses” discussions and frequency plans.
6) Return Loss ↔ VSWR Converter
Convert return loss (dB) to VSWR or VSWR to return loss. Helpful for spec writing and datasheet summaries.
RF Upconverter and Downconverter FAQ
These quick answers cover RF upconverters, RF downconverters, BUCs, LNBs, and frequency conversion specs used in satellite communications (SatCom), point-to-point microwave links, radar, telemetry, test and measurement, and 5G/mmWave systems.
Quick Answers
What does an RF upconverter do?
An RF upconverter translates a lower-frequency signal, such as IF or L-band, to a higher RF or microwave frequency so it can be transmitted by an antenna. In many transmit chains, the upconverter is followed by an RF power amplifier; when integrated, it is often called a Block Upconverter (BUC).
What does an RF downconverter do?
An RF downconverter converts a high-frequency RF input to a lower intermediate frequency (IF) that is easier to filter, amplify, digitize, and demodulate. In receiver front ends, a downconverter is often paired with an LNA; when integrated, it is commonly called an LNB (Low-Noise Block downconverter).
What is the difference between a BUC and an RF upconverter?
A BUC combines an RF upconverter with an integrated power amplifier to deliver higher output power for satellite uplinks and other transmit applications. An RF upconverter alone performs frequency translation but may not include the high-power amplification stage.
What IF frequencies are commonly used in RF systems?
Common IF frequencies include 70 MHz and 140 MHz, plus L-band IF ranges such as 950–2150 MHz. The best IF depends on the modem interface, channel plan, filtering requirements, and the overall superheterodyne architecture.
Why is image rejection important in frequency converters?
Image rejection suppresses unwanted signals that can downconvert to the same IF as the desired signal during mixing. Higher image rejection improves receiver sensitivity, reduces interference, and helps maintain spectral purity in dense RF environments.
More Technical Questions
What is an image frequency in a mixer or downconverter?
What is LO leakage and why does it matter?
What does low phase noise mean for RF upconverters and downconverters?
Why is a 10 MHz reference input used?
What is conversion gain, and how do gain control and digital attenuation help?
What does AGC do in a frequency conversion chain?
What is instantaneous bandwidth?
Where are RF frequency converters used?
Glossary of RF Frequency Converter Specification Terms
Core Frequency Conversion Terms
Upconversion
The process of translating a lower-frequency signal, such as IF or L-band, to a higher RF or millimeter-wave frequency using a mixer and local oscillator. Upconversion is used in transmit chains for satellite communication, radar, telemetry, and wireless systems.
Downconversion
The process of translating a high-frequency RF or millimeter-wave signal to a lower intermediate frequency for filtering, amplification, digitization, or demodulation. Downconversion is fundamental in receiver architectures.
Up-Downconverter
A frequency conversion device that integrates both upconversion and downconversion functions within a single unit, enabling bidirectional frequency translation between RF and IF stages.
Frequency Converter
A general RF component that performs upconversion, downconversion, or both, enabling frequency translation between IF, RF, and millimeter-wave bands.
Intermediate Frequency (IF)
A standardized frequency used between RF and baseband stages to simplify filtering, amplification, and signal processing. Common IF ranges include 70 MHz, 140 MHz, 950–1450 MHz, 950–2150 MHz, and 4–12 GHz.
RF Frequency
The operating radio frequency after conversion. In Mi-Wave 970 / 980 series products, RF frequencies commonly span X-band through Ku-, Ka-, Q-, and V-band.
Local Oscillator (LO) and Mixing Terms
Local Oscillator (LO)
A stable signal source used in a mixer to enable frequency translation. LO quality directly impacts phase noise, spurious performance, and frequency stability.
External LO Input
An externally supplied LO signal used to lock the converter to a system reference, improving synchronization and frequency accuracy across multiple devices.
LO Leakage
Unwanted LO energy appearing at the RF or IF ports. Low LO leakage reduces spurious emissions and interference.
Image Frequency
An undesired frequency that also converts to the same IF during mixing and must be suppressed through filtering or image-reject architectures.
Image Rejection
The ability of a frequency converter to suppress unwanted image frequencies. High image rejection improves receiver sensitivity and spectral purity.
Gain, Power, and Linearity Specifications
Conversion Gain
The net gain or loss introduced by the frequency conversion process. Conversion gain may be fixed or adjustable depending on design.
Gain Flatness
The variation of conversion gain across the operating bandwidth. Low gain flatness variation ensures uniform signal amplitude.
Digital Attenuation
Digitally controlled attenuation used to adjust output or conversion gain in precise, repeatable steps.
Automatic Gain Control (AGC)
A control function that automatically adjusts gain or attenuation to maintain a consistent output level despite input signal variations.
P1dB (1 dB Compression Point)
The output power level at which gain compresses by 1 dB from linear operation. Indicates the usable linear power range of the converter.
Output Power
The RF power level available at the output of an upconverter or the IF output of a downconverter.
OIP3 (Output Third-Order Intercept Point)
A measure of linearity indicating how well the device handles multiple signals without generating intermodulation distortion.
Noise and Signal Quality Metrics
Noise Figure (NF)
A measure of how much noise a component adds to the signal. Low noise figure is critical in downconverters and receiver front ends.
Phase Noise
Short-term frequency fluctuations of the LO or output signal, typically expressed in dBc/Hz. Low phase noise supports high-order modulation and radar resolution.
Frequency Stability
The ability of a converter or LO to maintain accurate frequency over time, temperature, and environmental conditions.
Reference Input
An external frequency reference, commonly 10 MHz, used to lock the LO and synchronize multiple RF systems.
Bandwidth and Channel Characteristics
Instantaneous Bandwidth
The frequency range over which the converter operates at a single tuning setting without retuning.
Operational Bandwidth
The total frequency span supported by the converter across its tuning range.
Tuning Resolution (Step Size)
The smallest frequency increment by which the LO or output frequency can be adjusted.
Multichannel Operation
A configuration where multiple independent frequency conversion paths operate in parallel within a single unit.
Spurious and Spectral Performance
Spurious Responses (Spurs)
Unwanted discrete frequency components generated by mixing products, harmonics, or nonlinearities.
Signal-Related Spurious
Spurious signals directly related to the input or output signal frequency.
Non-Signal-Related Spurious
Spurious emissions not directly tied to the signal frequency, often caused by internal oscillators or digital circuitry.
Harmonic Suppression
The attenuation of harmonic frequencies generated by nonlinear RF components.
Spectral Purity
The cleanliness of the output spectrum, characterized by low phase noise, low spurious content, and strong image suppression.
Interfaces, Packaging, and Integration
WR-Waveguide Interface
A standardized rectangular waveguide used for millimeter-wave RF interfaces, such as WR-28 (Ka-band) or WR-22 (Q-band).
Coaxial IF Interface
A coaxial connector, such as SMA or N-type, used for IF input or output connections.
Coupled Test Port
A low-level monitoring output that allows signal verification without interrupting the main RF path.
Commercial Rack-Mount Packaging
An enclosure designed for indoor laboratory, test, and ground-station installations.
Ruggedized or Environmental Packaging
Sealed or reinforced enclosures designed for outdoor, airborne, or harsh operating environments.
System-Level Terms
Receiver Front-End Protection
The use of frequency converters and filtering to prevent strong signals from overloading LNAs and mixers.
Dynamic Range
The range between the smallest and largest signal levels that can be processed without excessive noise or distortion.
Synchronization
The alignment of frequency and phase across multiple converters or channels using a common reference.
Regulatory Compliance
Ensuring frequency-converted signals meet emission limits and spectral mask requirements imposed by regulatory authorities.
| Model Number | Band | Description | Frequency (GHz) | Converter Type | # of Channels | Packaging | User Preferences | LINK |
|---|---|---|---|---|---|---|---|---|
| 980-10/385S | C, S, X | Upconverter | 2-18 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 980A-34.5/381 S | Ka | Upconverter | 26.5-40 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980A-35.61 /KF | Ka | Up-Downconverter | 35.61 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970B-38.25/383S | Q | Downconverter | 38.0-38.5 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970A-39.65/599 | Ka | Downconverter | 39.4-39.9 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 980B-43.25/383S | Q | Upconverter | 42.0-43.5 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970U-47.2/51 .4/1.85mmF | U | Downconverter | 47.2-51.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980U B-47.2/51 .4/1.85mmF-PLO | U | Up-Downconverter | 47.2-51.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970V-62.5/385 | V | Downconverter | 70-65 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970E-70.4/86.4/387 | E | Downconverter | 70.4-86.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980W-20/387S | W | Up-Downconverter | 95-100 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC |
RF Upconverters and Downconverters
RF Downconversion Functionality
The 970V-62.5/385 V-Band Downconverter accepts high-frequency V-band RF input signals from 60 to 65 GHz and converts them to a lower intermediate frequency (IF) output range of 1.5 to 5 GHz, enabling efficient signal processing, analysis, and receiver integration.
Downconversion is achieved using an external local oscillator (LO) operating over the same 60 to 65 GHz range, allowing flexible frequency planning and compatibility with existing V-band sources. This architecture supports stable frequency translation while simplifying integration with laboratory and system-level RF setups.
The downconverter provides controlled conversion gain and output power, allowing downstream IF stages to operate within optimal dynamic range. Standard WR-15 waveguide interfaces ensure low-loss signal handling at V-band frequencies, while the SMA IF output supports connection to common receivers, spectrum analyzers, and digitizers.
Key performance characteristics of the 970V-62.5/385 include:
-
V-band RF input coverage from 60 to 65 GHz
-
IF output frequency range of 1.5 to 5 GHz
-
External LO operation for flexible system configuration
-
Stable conversion gain and output power
-
WR-15 waveguide interfaces for low-loss V-band operation
Typical Applications
The 970V-62.5/385 V-Band Downconverter is commonly used in:
-
V-band receiver systems and experimental communication platforms
-
Millimeter-wave research and development
-
High-frequency instrumentation and laboratory measurement systems
-
RF and mmWave test and measurement setups
-
Prototype sensing and short-range V-band communication systems
Its straightforward architecture and standard interfaces make it well suited for laboratory, research, and system integration environments operating in the V-band.
Role in RF Signal Conversion Systems
Within a V-band RF receiver signal chain, the 970V-62.5/385 functions as the primary frequency translation stage, reducing millimeter-wave signals to an IF that can be readily processed using conventional RF hardware.
By providing stable downconversion, controlled gain, and low-loss waveguide interfaces, the unit enables reliable detection, measurement, and analysis of V-band signals. This makes it a practical building block for V-band research, instrumentation, and experimental RF systems where frequency accuracy and repeatable performance are essential.
