Description

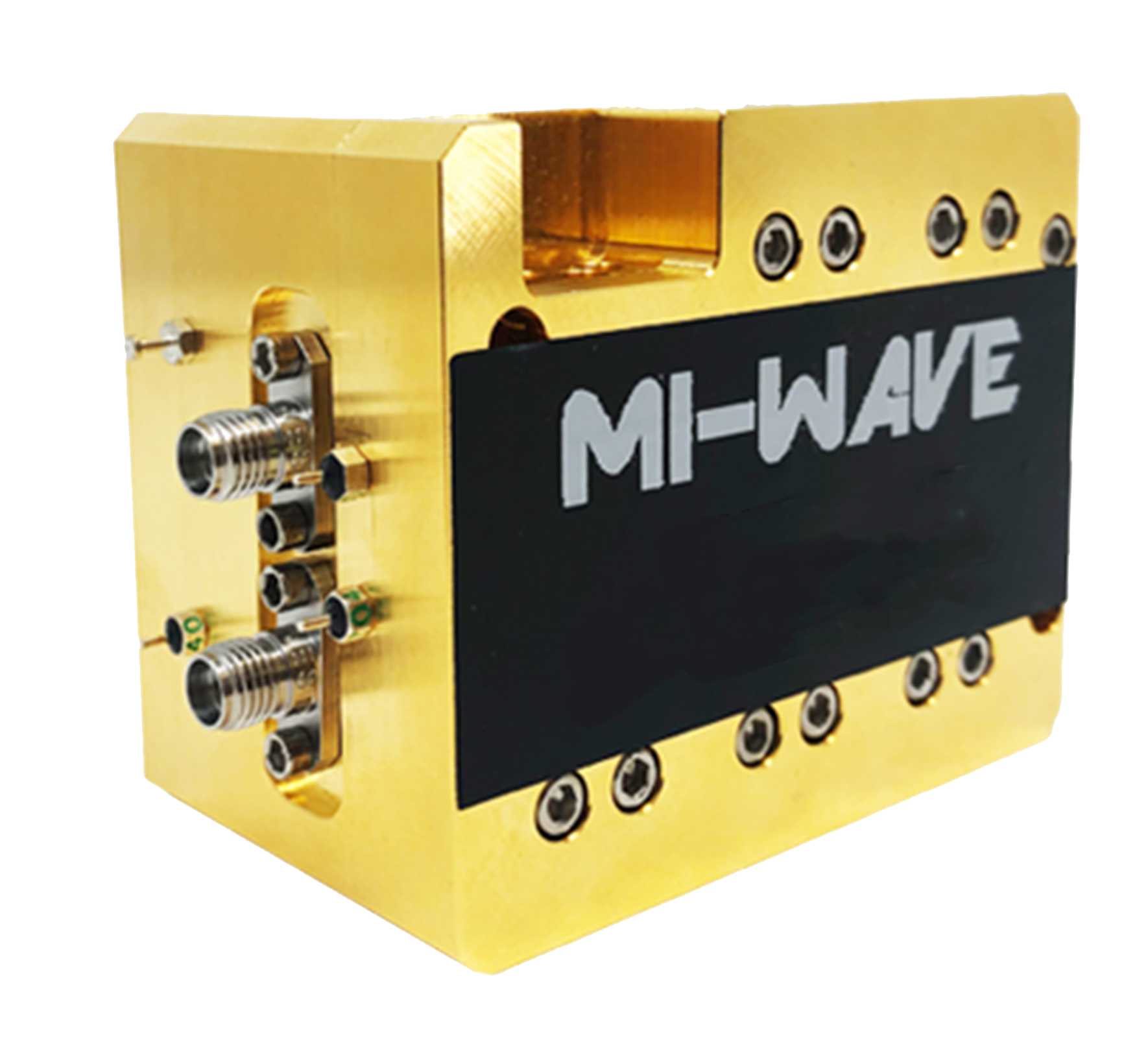

Mi-Wave RF upconverters and downconverters provide high-performance frequency conversion solutions for millimeter-wave receiver systems. The 970U-47.2/51.4/1.85mmF U-Band Downconverter is designed to translate extremely high-frequency U-band RF signals from 47.2 to 51.4 GHz down to a lower millimeter-wave output band, supporting advanced sensing, communication, and experimental RF platforms.
The unit downconverts incoming U-band signals to an output frequency range of 37.5 to 42.5 GHz, enabling integration with downstream mmWave receivers, amplifiers, and signal processing hardware. This architecture supports applications where direct U-band processing is impractical and stable frequency translation is required.
Optimized for high-frequency receiver front ends, the downconverter supports very low-level input signals and provides stable conversion performance across its operating band. Its compact coaxial RF interface using a 1.85 mm female connector supports precision millimeter-wave interconnects commonly used in laboratory, research, and advanced system development environments.
The 970U-47.2/51.4/1.85mmF operates from an unregulated DC power supply and is designed for extended temperature operation, making it suitable for both controlled laboratory environments and demanding system-level installations where thermal stability and reliability are critical.
Mi-Wave U-band downconverter platforms are used in next-generation millimeter-wave research, high-frequency instrumentation, and specialized RF systems where accurate frequency translation at extreme frequencies is essential.

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.
Key Specifications (Summary)
RF Input Frequency:
47.2 – 51.4 GHz
RF Output Frequency:
37.5 – 42.5 GHz
RF Input Connector:
1.85 mm Female
Repeater Input Power:
−86 dBm
Saturated RF Output Power:
26 dBm
Conversion Architecture:
Downconversion (U-band to mmWave)
Power and Environmental
Unregulated Power Input:
+29 V / −3 V DC
DC Power and RF Ground Isolation:
≥ 1 MΩ
Operational Baseplate Temperature Range:
−40°C to +85°C
Survival Baseplate Temperature Range:
−45°C to +90°C
RF Frequency Conversion Calculator (GHz)
Calculate RF and image frequencies for RF upconverters and downconverters using GHz units.
Formulas
- High-side LO: RF = LO + IF, Image = LO − IF
- Low-side LO: RF = LO − IF, Image = LO + IF
Image Frequency Calculator (GHz)
Calculate the image frequency for a mixer/downconverter using LO and IF in GHz.
How it works
- Desired RF: LO ± IF (depends on side)
- Image RF: LO ∓ IF (opposite side from desired)
- Separation between desired and image: 2 × IF
Conversion Gain & Output Power Calculator (dBm)
Calculate output power for RF upconverters, downconverters, and frequency conversion chains using dBm and dB.
Formula
- Pout (dBm) = Pin + Conversion Gain + Amplifier Gain − Attenuation
- Net Gain (dB) = Conversion Gain + Amplifier Gain − Attenuation
Cascaded Noise Figure Calculator (Friis)
Calculate total receiver noise figure and total gain for LNA + downconverter + IF stages using Friis.
Formulas (Friis)
- Convert NF(dB) to noise factor: F = 10^(NF/10)
- Convert Gain(dB) to linear: G = 10^(Gain/10)
- Total noise factor: Ftotal = F1 + (F2−1)/G1 + (F3−1)/(G1·G2) + (F4−1)/(G1·G2·G3)
- Total NF(dB) = 10·log10(Ftotal)
- Equivalent noise temperature: Te = (Ftotal−1)·T0, with T0 = 290 K
Frequency Stability Calculator (ppm/ppb → Hz)
Convert oscillator or LO stability (ppm/ppb) into frequency error at a given carrier frequency.
Formula
- Error (Hz) = Frequency (Hz) × Stability
- ppm = 1×10-6, ppb = 1×10-9
dBm ↔ Watts Converter
Convert RF power between dBm, Watts, milliWatts, and dBW for amplifiers, BUCs, and RF chains.
Formulas
- W = 10^((dBm − 30)/10)
- dBm = 10·log10(W) + 30
- dBW = dBm − 30
Free-Space Path Loss (FSPL) Calculator
Estimate free-space path loss for point-to-point links, SatCom, telemetry, and RF system planning.
Formula
- FSPL(dB) = 92.45 + 20·log10(fGHz) + 20·log10(dKm)
- Valid for free-space propagation (no atmospheric/terrain losses included)
RF Upconverter and Downconverter FAQ
These quick answers cover RF upconverters, RF downconverters, BUCs, LNBs, and frequency conversion specs used in satellite communications (SatCom), point-to-point microwave links, radar, telemetry, test and measurement, and 5G/mmWave systems.
Quick Answers
What does an RF upconverter do?
An RF upconverter translates a lower-frequency signal, such as IF or L-band, to a higher RF or microwave frequency so it can be transmitted by an antenna. In many transmit chains, the upconverter is followed by an RF power amplifier; when integrated, it is often called a Block Upconverter (BUC).
What does an RF downconverter do?
An RF downconverter converts a high-frequency RF input to a lower intermediate frequency (IF) that is easier to filter, amplify, digitize, and demodulate. In receiver front ends, a downconverter is often paired with an LNA; when integrated, it is commonly called an LNB (Low-Noise Block downconverter).
What is the difference between a BUC and an RF upconverter?
A BUC combines an RF upconverter with an integrated power amplifier to deliver higher output power for satellite uplinks and other transmit applications. An RF upconverter alone performs frequency translation but may not include the high-power amplification stage.
What IF frequencies are commonly used in RF systems?
Common IF frequencies include 70 MHz and 140 MHz, plus L-band IF ranges such as 950–2150 MHz. The best IF depends on the modem interface, channel plan, filtering requirements, and the overall superheterodyne architecture.
Why is image rejection important in frequency converters?
Image rejection suppresses unwanted signals that can downconvert to the same IF as the desired signal during mixing. Higher image rejection improves receiver sensitivity, reduces interference, and helps maintain spectral purity in dense RF environments.
More Technical Questions
What is an image frequency in a mixer or downconverter?
What is LO leakage and why does it matter?
What does low phase noise mean for RF upconverters and downconverters?
Why is a 10 MHz reference input used?
What is conversion gain, and how do gain control and digital attenuation help?
What does AGC do in a frequency conversion chain?
What is instantaneous bandwidth?
Where are RF frequency converters used?
Glossary of RF Frequency Converter Specification Terms
Core Frequency Conversion Terms
Upconversion
The process of translating a lower-frequency signal, such as IF or L-band, to a higher RF or millimeter-wave frequency using a mixer and local oscillator. Upconversion is used in transmit chains for satellite communication, radar, telemetry, and wireless systems.
Downconversion
The process of translating a high-frequency RF or millimeter-wave signal to a lower intermediate frequency for filtering, amplification, digitization, or demodulation. Downconversion is fundamental in receiver architectures.
Up-Downconverter
A frequency conversion device that integrates both upconversion and downconversion functions within a single unit, enabling bidirectional frequency translation between RF and IF stages.
Frequency Converter
A general RF component that performs upconversion, downconversion, or both, enabling frequency translation between IF, RF, and millimeter-wave bands.
Intermediate Frequency (IF)
A standardized frequency used between RF and baseband stages to simplify filtering, amplification, and signal processing. Common IF ranges include 70 MHz, 140 MHz, 950–1450 MHz, 950–2150 MHz, and 4–12 GHz.
RF Frequency
The operating radio frequency after conversion. In Mi-Wave 970 / 980 series products, RF frequencies commonly span X-band through Ku-, Ka-, Q-, and V-band.
Local Oscillator (LO) and Mixing Terms
Local Oscillator (LO)
A stable signal source used in a mixer to enable frequency translation. LO quality directly impacts phase noise, spurious performance, and frequency stability.
External LO Input
An externally supplied LO signal used to lock the converter to a system reference, improving synchronization and frequency accuracy across multiple devices.
LO Leakage
Unwanted LO energy appearing at the RF or IF ports. Low LO leakage reduces spurious emissions and interference.
Image Frequency
An undesired frequency that also converts to the same IF during mixing and must be suppressed through filtering or image-reject architectures.
Image Rejection
The ability of a frequency converter to suppress unwanted image frequencies. High image rejection improves receiver sensitivity and spectral purity.
Gain, Power, and Linearity Specifications
Conversion Gain
The net gain or loss introduced by the frequency conversion process. Conversion gain may be fixed or adjustable depending on design.
Gain Flatness
The variation of conversion gain across the operating bandwidth. Low gain flatness variation ensures uniform signal amplitude.
Digital Attenuation
Digitally controlled attenuation used to adjust output or conversion gain in precise, repeatable steps.
Automatic Gain Control (AGC)
A control function that automatically adjusts gain or attenuation to maintain a consistent output level despite input signal variations.
P1dB (1 dB Compression Point)
The output power level at which gain compresses by 1 dB from linear operation. Indicates the usable linear power range of the converter.
Output Power
The RF power level available at the output of an upconverter or the IF output of a downconverter.
OIP3 (Output Third-Order Intercept Point)
A measure of linearity indicating how well the device handles multiple signals without generating intermodulation distortion.
Noise and Signal Quality Metrics
Noise Figure (NF)
A measure of how much noise a component adds to the signal. Low noise figure is critical in downconverters and receiver front ends.
Phase Noise
Short-term frequency fluctuations of the LO or output signal, typically expressed in dBc/Hz. Low phase noise supports high-order modulation and radar resolution.
Frequency Stability
The ability of a converter or LO to maintain accurate frequency over time, temperature, and environmental conditions.
Reference Input
An external frequency reference, commonly 10 MHz, used to lock the LO and synchronize multiple RF systems.
Bandwidth and Channel Characteristics
Instantaneous Bandwidth
The frequency range over which the converter operates at a single tuning setting without retuning.
Operational Bandwidth
The total frequency span supported by the converter across its tuning range.
Tuning Resolution (Step Size)
The smallest frequency increment by which the LO or output frequency can be adjusted.
Multichannel Operation
A configuration where multiple independent frequency conversion paths operate in parallel within a single unit.
Spurious and Spectral Performance
Spurious Responses (Spurs)
Unwanted discrete frequency components generated by mixing products, harmonics, or nonlinearities.
Signal-Related Spurious
Spurious signals directly related to the input or output signal frequency.
Non-Signal-Related Spurious
Spurious emissions not directly tied to the signal frequency, often caused by internal oscillators or digital circuitry.
Harmonic Suppression
The attenuation of harmonic frequencies generated by nonlinear RF components.
Spectral Purity
The cleanliness of the output spectrum, characterized by low phase noise, low spurious content, and strong image suppression.
Interfaces, Packaging, and Integration
WR-Waveguide Interface
A standardized rectangular waveguide used for millimeter-wave RF interfaces, such as WR-28 (Ka-band) or WR-22 (Q-band).
Coaxial IF Interface
A coaxial connector, such as SMA or N-type, used for IF input or output connections.
Coupled Test Port
A low-level monitoring output that allows signal verification without interrupting the main RF path.
Commercial Rack-Mount Packaging
An enclosure designed for indoor laboratory, test, and ground-station installations.
Ruggedized or Environmental Packaging
Sealed or reinforced enclosures designed for outdoor, airborne, or harsh operating environments.
System-Level Terms
Receiver Front-End Protection
The use of frequency converters and filtering to prevent strong signals from overloading LNAs and mixers.
Dynamic Range
The range between the smallest and largest signal levels that can be processed without excessive noise or distortion.
Synchronization
The alignment of frequency and phase across multiple converters or channels using a common reference.
Regulatory Compliance
Ensuring frequency-converted signals meet emission limits and spectral mask requirements imposed by regulatory authorities.
| Model Number | Band | Description | Frequency (GHz) | Converter Type | # of Channels | Packaging | User Preferences | LINK |
|---|---|---|---|---|---|---|---|---|
| 980-10/385S | C, S, X | Upconverter | 2-18 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 980A-34.5/381 S | Ka | Upconverter | 26.5-40 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980A-35.61 /KF | Ka | Up-Downconverter | 35.61 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970B-38.25/383S | Q | Downconverter | 38.0-38.5 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970A-39.65/599 | Ka | Downconverter | 39.4-39.9 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 980B-43.25/383S | Q | Upconverter | 42.0-43.5 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970U-47.2/51 .4/1.85mmF | U | Downconverter | 47.2-51.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980U B-47.2/51 .4/1.85mmF-PLO | U | Up-Downconverter | 47.2-51.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970V-62.5/385 | V | Downconverter | 70-65 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970E-70.4/86.4/387 | E | Downconverter | 70.4-86.4 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC | |
| 970980W-20/387S | W | Up-Downconverter | 95-100 | Synthesized | Block | 1,2,3,4 | Commercial Rack Environmental | Bandwidth Internal/External Ref Digital Attenuation AGC |
RF Upconverters and Downconverters
RF Downconversion Functionality
The 970U-47.2/51.4/1.85mmF U-Band Downconverter accepts extremely high-frequency U-band RF input signals from 47.2 to 51.4 GHz and converts them to a lower millimeter-wave output frequency range of 37.5 to 42.5 GHz. This frequency translation enables practical signal processing, amplification, and measurement in systems where direct U-band handling is impractical or inefficient.
The downconversion architecture supports applications requiring stable frequency translation at extreme millimeter-wave frequencies. By shifting U-band signals to a more manageable mmWave range, the unit simplifies downstream receiver design while preserving signal integrity, amplitude stability, and spectral content.
Optimized for high-frequency receiver front ends, the downconverter supports very low input signal levels and provides consistent conversion performance across its operating band. A 1.85 mm female RF input connector enables low-loss, precision interconnects commonly used in laboratory, research, and advanced mmWave development environments.
Key performance characteristics of the 970U-47.2/51.4/1.85mmF include:
-
U-band RF input coverage from 47.2 to 51.4 GHz
-
Millimeter-wave RF output range of 37.5 to 42.5 GHz
-
Support for extremely low-level RF input signals
-
Stable frequency conversion for high-frequency receiver systems
-
Precision 1.85 mm coaxial interface for mmWave interconnects
Typical Applications
The 970U-47.2/51.4/1.85mmF U-Band Downconverter is commonly used in:
-
U-band and sub-THz research platforms
-
Advanced millimeter-wave receiver development
-
High-frequency instrumentation and measurement systems
-
Scientific and experimental RF systems
-
Prototype communication and sensing platforms
-
Laboratory-based mmWave and U-band testing
Its ability to translate signals at extremely high frequencies makes it particularly valuable in research, development, and experimental systems operating beyond conventional Ka- and Q-band ranges.
System Integration and Configuration
The 970U-47.2/51.4/1.85mmF is designed for system-level integration into advanced mmWave and U-band platforms. The compact coaxial RF interface supports precision cabling and repeatable measurements, while the downconverter’s DC power architecture enables straightforward integration into laboratory and embedded systems.
Additional integration considerations include:
-
Precision 1.85 mm RF input interface for U-band signals
-
Millimeter-wave RF output compatible with downstream receivers and amplifiers
-
Unregulated DC power operation for system flexibility
-
Wide baseplate temperature operating range for thermal stability
The platform is well suited for controlled laboratory environments, research facilities, and specialized system installations where accurate frequency translation at extreme frequencies is required.
Role in RF Signal Conversion Systems
Within a U-band RF signal chain, the 970U-47.2/51.4/1.85mmF functions as a critical frequency translation stage, enabling U-band signals to be processed using available mmWave hardware. By maintaining stable downconversion performance and supporting very low signal levels, the unit enables reliable detection, measurement, and analysis at frequencies approaching the upper limits of traditional mmWave systems.
This downconverter plays a key role in extending RF system capability into the U-band, supporting next-generation research, instrumentation, and experimental communication systems where frequency accuracy, stability, and reliability are essential.
