Ku Band Horn Lens Antenna 9″ Diameter | 12.4 GHz – 18GHz

Products> Antenna Products > Horn Lens Antennas > Ku-Band Horn Lens Antennas 9" Diameter Ku-Band Waveguide Horn Lens Antenna 258Ku-9/.XXX/419 12.4 GHz - 18 GHz Circular Waveguide with UG-419/U Flange Description: Mi-Wave’s 258 Series horn lens antenna consists of a circular scalar feed horn illuminating a piano-convex lens. Housed in either aluminum or plastic, these horn lens antennas provide a high-efficiency beam with equal E and H plane amplitude patterns. Circular Waveguide Internal

Mauricio Miranda2024-04-08T16:41:59-04:00

X-Band Horn Lens Antenna 12″ Diameter | 8.2 GHz – 12.4GHz

Products> Antenna Products > Horn Lens Antennas > X-Band 12" Diameter Horn Lens Antennas X-Band Waveguide Horn Lens Antenna 258X-12/.XXX/39, 8.2GHz - 12.4GHz WR-90, UG-39 Description: Mi-Wave’s 258 Series horn lens antenna consists of a circular scalar feed horn illuminating a piano-convex lens. Housed in either aluminum or plastic, these horn lens antennas provide a high-efficiency beam with equal E and H plane amplitude patterns. Circular Waveguide Internal Diameter and Frequency Range .XXX=1.094

Mauricio Miranda2024-04-02T12:36:43-04:00

J-Band Waveguide Calibration Kits | 220GHz – 325GHz

H-Band Waveguide Calibration Kit 780H/387, 170GHz - 260GHz WR-04, UG-387/U Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 780 Series Waveguide Calibration Kits are made to precisely calibrate Vector Network Analyzers (VNA) utilizing millimeter waveguide test heads or modules from 18 to 325 GHz. These kits provide the Triple Offset Short (SSST) calibration method utilizing offset shorts and fixed precision termination. The precision fixed shorts

Mauricio Miranda2024-01-29T17:20:30-05:00

Mi-Wave is a Diamond Sponsor at IMS 2024 in Washington DC come see us at Booth #951

Millimeter Wave Products will be attending the International Microwave Symposium (IMS) as a Diamond Level Sponsor Millimeter Wave Products will be attending the International Microwave Symposium (IMS), taking place in Washington DC on 16-21 June 2024

Mauricio Miranda2024-01-15T19:35:15-05:00

J-Band Waveguide Calibration Kits | 220 GHz – 325 GHz

J-Band Waveguide Calibration Kit 780J/387, 220GHz-325GHz WR-03, UG-387/U Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 780 Series Waveguide Calibration Kits are made to precisely calibrate Vector Network Analyzers (VNA) utilizing millimeter waveguide test heads or modules from 18 to 325 GHz. These kits provide the Short-Short-Load-Thru (SSLT) calibration method utilizing offset shorts and fixed precision termination. The precision fixed shorts have been selected to

Mauricio Miranda2023-12-13T19:01:02-05:00

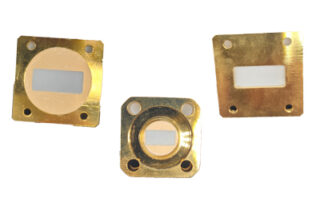

Pressure Windows

Pressure Windows Description: MIWV Series 707 Waveguide pressure windows are used to contain various gasses including pressurized air and SF6. Similarly, pressure windows are also used to prevent any undesirable contaminants (such as moisture) from entering RF or microwave systems.

Mauricio Miranda2023-10-04T19:45:42-04:00

705 Series Pressurizing Units

705 Pressurizing Units Available in 12.4 to 220 GHz Description: Each of Mi-Wave’s 705 Series Pressurizing Units consists of a short length of flanged, rectangular waveguide fitted with a Schrader valve and optional pressure gauge. These units are available in all standard wave-guide sizes from 12.4 to 220 GHz. In A-band, the choke-to-cover flange combination makes allowances for the insertion of a standard O-ring gasket to ensure maintenance of pressurization over operation. Provision

Mauricio Miranda2024-04-17T16:13:09-04:00

Precision Drill Jigs

Precision Drill Jigs Description: Each of Mi-Wave's 700 series Drill Jigs consists of a solid steel block with accurately positioned drill holes and a a tapered locating tab that will locate drill holes in a precise relation to the internal waveguide surfaces. Hardened steel minimizes wear to ensure drilling accuracy The 700 series precision drill jigs are designed to facilitate accurate fabrication of flanged waveguide sections for standard waveguide sizes from 26.5 to 220 GHz. These jigs
