Multi-Junction Waveguide Circulators

Multi-Junction Waveguide Circulators Mi-Wave's 180 series is an H-plane, three-junction, three-port, Y-junction ferrite device. All external mating surfaces are machined to extreme flatness to provide connection to standard waveguide flanges for minimum discontinuity. The 180 Series circulators are available in standard wave-guide sizes from 18.00 to 110 GHz. Note: MIWV no longer offers Series 180 Circulator Features Low Loss Low VSWR High Isolation (30dB typ.) Adjustable OUTLINES: Ka-Band E-Band V-Band W-Band

Brian Lapuste2025-10-01T13:17:14-04:00

Y-Junction Waveguide Circulators

Products>Circulators> Y-Junction Waveguide Circulators Y-Junction Waveguide Circulators Description Mi-Wave’s 179 is an H-plane, three-port Y-junction ferrite device. All external mating surfaces are machined to extreme flatness to provide connection to standard waveguide flanges for minimum discontinuity. The 179 Series circulators are available in standard waveguide sizes from 18.0 to 110 GHz. View PDF Note: Our website contains just a few types of Circulators we build. Consult with us for

Brian Lapuste2024-09-04T15:36:36-04:00

Waveguide Adapters | J-Band | Circular to Rectangular

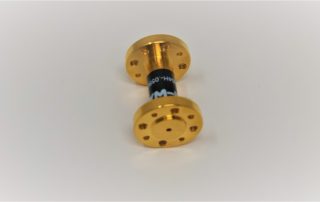

J-Band Waveguide Transition & Adapter 284J-XXX/387, 220GHz - 325GHz WR-3, VSWR 1.15 Description: Mi-Wave's 284 series tapered mode transitions is a precision-formed adapter used to transform rectangular TE10 mode waveguide to a circular TE11 mode waveguide. Mainly used in antenna systems and associated components to adapt to the conventional waveguides. Outline Drawing Test Data Return to Transition & Adapter Page

Brian Lapuste2021-11-12T14:18:36-05:00

J-Band | RF Low Power Terminations | loads | 220GHz-325GHz

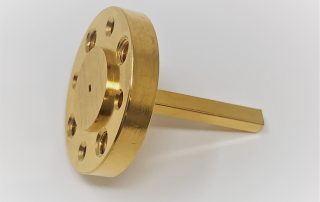

J-Band, 220 – 325 GHz, BroadBand Low Power Terminations 580J/387, Power Handling 0.02W, VSWR 1.05:1 Description Mi-Wave’s 580 Series Terminations are designed with standard waveguide flanges for use from 5 to 320 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2021-08-09T20:03:11-04:00

Plane Tees | Waveguide Tees | Tee Junctions | 18GHz – 90 GHz

650 Series H-Plane Tees Description: Mi-Wave's 650 Series H-plane Tees feature an H-plane coupling arm located on the narrow waveguide wall. Power at the coupling arm input is divided into equal signals in phase at the main outputs. These devices are available in standard waveguide sizes from 12.4 to 110 GHz. Neither the 640 Series or the 650 Series Tees have matched junctions and therefore are not recommended for low VSWR applications.

Brian Lapuste2021-08-10T13:23:40-04:00

Plane Tees | Waveguide Tees | Tee Junctions | 50GHz – 90 GHz

640 Series E-Plane Tees Description: Mi-Wave’s 640 Series E-plane Tees consist of a length of standard flanged waveguide with a perpendicular E-plane coupling arm symmetrically located on the broad waveguide wall. Input power is divided equally and in the opposite phase between the two outputs. Features Unmatched ports Geometrical Symmetry Available from 12.4 to 110 GHz Equal Power Division Between the Two Outputs

Brian Lapuste2021-08-10T13:24:08-04:00

2-way Power Dividers | J-Band | Magic Hybrid Tees | 220GHz – 325GHz

J-Band, 220 - 325 GHz, 2-Way Power Divider | Combiner | Magic Hybrid Tee 635J/387, Isolation (E-H) 25dB, Insertion Loss 3.0dB Description: Mi-Wave’s 635 Series E/H Hybrid and Magic Tees consist of three mutually perpendicular flanged sections of a standard waveguide. Two of these sections are symmetrically located on the broad and narrow walls of the main tee section to provide E-plane and H-plane connections. The internal geometry of these hybrids provides a

Brian Lapuste2021-08-10T13:33:10-04:00

220GHz-325GHz | 4-Way Power Divider | Combiners | J-Band

J-Band, 220 - 325 GHz, 4-Way Power Divider/Combiner 604J/387, Isolation 20dB, Insertion Loss 2.0 dB Description: Mi-Wave’s 604 Series Four-way Power Divider, inherently-matched 3 dB power splitting devices. Available in standard waveguide sizes from 8.0 to 325.0 GHz, these units are capable of in-phase splitting. Features • Full Band • Low Insertion Loss • High Isolation • Low VSWR • High Reliability • Inline Configuration Applications •

Brian Lapuste2021-11-23T17:17:19-05:00
