Features of  Mi-Wave Dual Polarized Antenna

Mi-Wave’s dual polarized antennas are offered as both stock and custom with rectangular waveguide interfaces for both horizontal and vertical ports. These dual polarized horn antennas support both linear and elliptical polarized waveforms. When the antenna receives a circular polarized wave, equal amplitude linear polarized waves are output at both horizontal and vertical ports.

They feature an integrated orthomode transducer that provides high port isolation. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waves or vice versa.

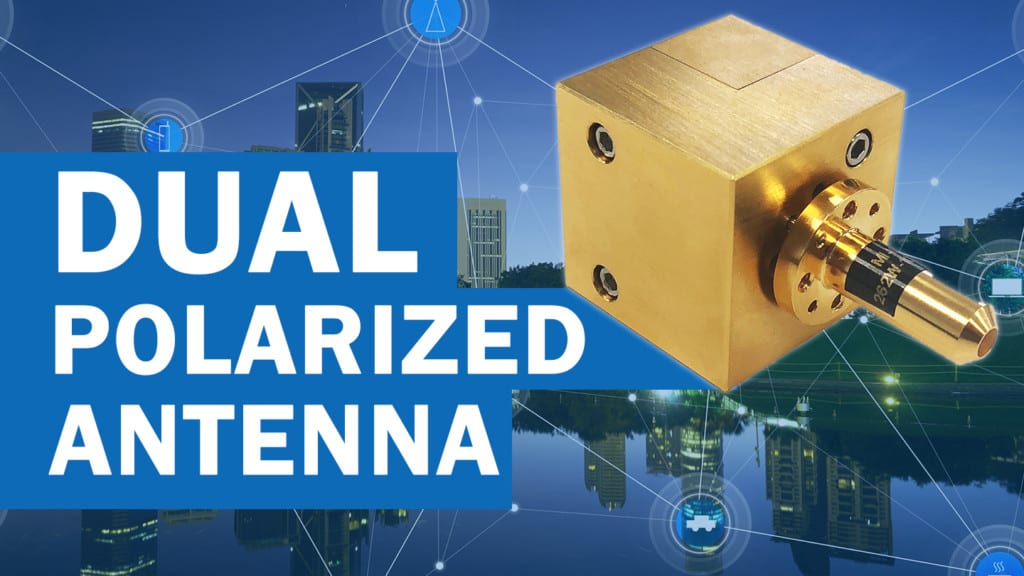

dual polarized antenna
View Catalog PDF

Dual Polarized Antenna

If you are looking for quality built dual polarized antenna, then use  Millimeter wave products Inc. We we specialize in manufacturing the highest quality standard antennas for many needs.

Our dual polarized antenna is available from 8 to 320 GHz. We can manufacture to any custom size or specification, please consult Mi-Wave for further information.

Example Product Specs

WR-10 Dual Polarized Antenna is a full band, dual polarized, WR-10 horn antenna assembly that covers the frequency range of 75 to 110 GHz. It features an integrated orthomode transducer that provides high port isolation. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waves or vice versa. The dual polarized horn also supports either vertical or horizontal polarized waveguide forms with more than 30 dB cross polarization rejection. At center frequency, the antenna offers 15 dBi nominal gain and a typical half power beamwidth of 22 degrees on the E-plane and 33 degrees on the H-plane. The antenna exhibits 45 dB typical port isolation between the horizontal and vertical ports. The horizontal and vertical ports are WR-10 waveguides with UG-387/U-M flanges and 4-40 threaded holes. This is one example of many dual polarized antennas we have ready. Custom configurations are available!

Frequently Asked Questions for the dual polarized antenna

coming soon

standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
