Adjustable Waveguide Short Circuits

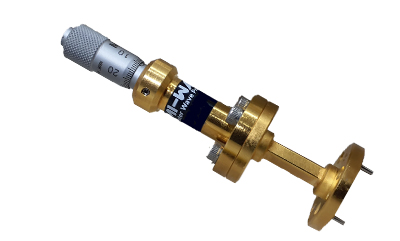

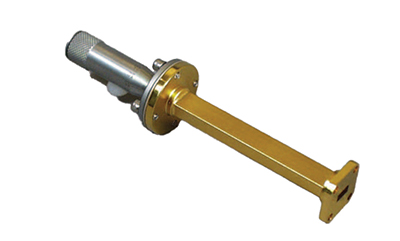

Mi-Wave’s 590 Series Waveguide Short Circuits are available in standard waveguide sizes from 12.4 to 325 GHz. The non-contacting choke type short circuit is designed to operate with high electrical stability over a broad range of frequencies. The micrometer drive provides smooth, accurate positional tuning over the entire distance traveled and a positive locking device ensures continued setting reliability.
Note: Our website contains just a few types of Terminaions we build. Consult with us for your specific needs.
| Model | Band | Frequency Low (GHz) | Frequency High (GHz) | Flanges | Link |
|---|---|---|---|---|---|
| 590K | K-Band | 22 | 33 | UG-595/U Flange | |
| 590A | Ka-Band | 26.5 | 40 | UG-599/U Flange | |
| 590B | Q-Band | 33 | 50 | UG-383/U Flange | |
| 590U | U-Band | 40 | 60 | UG-383/U Flange | |
| 590V | V-Band | 50 | 75 | UG-385/U Flange | |
| 590E | E-Band | 60 | 90 | UG-387/U Flange | |
| 590W | W-Band | 75 | 110 | UG-387/U Flange | |
| 590F | F-Band | 90 | 140 | UG-387/U Flange | |
| 590D | D-Band | 110 | 170 | UG-387/U-M Flange | |
| 590G | G-Band | 140 | 220 | UG-387/U Flange |
