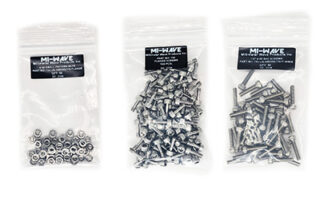

Screws and Nuts
Screws and Hardware Description: Mi-Wav offers the broadest and deepest inventory of RF and microwave components available, which includes RF screws and nuts

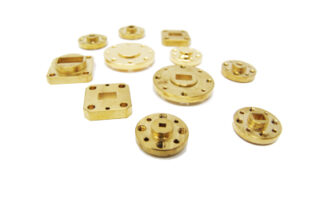

750 Blank Flanges
750 Blank Flanges Description Mi-wave offers Square Flanges, Round Flanges, Cover Flanges, Choke Flanges, Grooved/gasket Flanges, Anti-cocking flanges and other custom flanges. Drawings can be provided upon request. Choke Flanges Choke Flanges are offered only in square flanges. Choke flanges come with O-ring groove and choke cavity. A choke connection is formed by mating one choke flange and one cover (or gasket/cover) flange. The central region of the choke flange face is very slightly

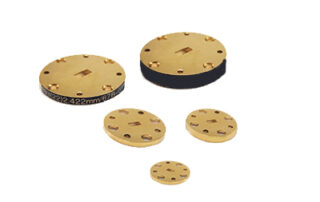

Shims and Spacers
Waveguide Shims and Spacers Description: Waveguide Shims and Spacers are devices that reduce the connection gaps between waveguide components. Mi-wave offers waveguide shims and spacers from 8 GHz to 325 GHz. Note: Our website contains just a few types of Spacers and Shims we build. Consult with us for your specific needs.
Waveguide Stands
Waveguide Stands Description:Mi-Wave offers 2 types of waveguide stands, adjustable clamp type and criss cross type. 695 model consists of an adjustable clamp mounted on an adjustable height rugged base stand. The unique waveguide clamp may be readily adjusted to fit the clamping jaws to particular waveguide sizes or orientations. The cast stand has a large base area to prevent moving or tipping under normal test bench conditions. For further stability, the base may be secured to the
695-8 Adjustable Waveguide Mount
695-8 Adjustable Waveguide Mount 8 x 8 Inches (203.2mm x 203.2mm), Adjustable Height: 2.4" to 12.3" (60mm to 312.42mm), Weight Capacity: 110 lbs. (50 Kg) Description: 695-4, 695-6 and 695-8 models are crisscross type mini jack that provides an adjustable support solution in laboratory environments. The mini jack is especially helpful when setting up bench top test sets or module testing systems. Features: Rugged configuration Quick and smooth one knob adjustment Instrumentation grade
695-6 Adjustable Waveguide Mount
695-6 Adjustable Waveguide Mount 6 x 6 Inches (152.4 x 152.4mm), Adjustable Height: 2.2" to 9.8" (50.8 to 248.9mm), Weight Capacity: 55 lbs. (25 Kg) Description: 695-4, 695-6 and 695-8 models are crisscross type mini jack that provides an adjustable support solution in laboratory environments. The mini jack is especially helpful when setting up bench top test sets or module testing systems. Features: Rugged configuration Quick and smooth one knob adjustment Instrumentation grade
695-4 Adjustable Waveguide Mount
695 Adjustable Clamp Waveguide Mount 4 x 4 Inches (101.6 x 101.6 mm), Adjustable Height: 1.7" to 7" (43.18 to177.8 mm), Weight Capacity: 22 lbs. (10 Kg) Description: 695-4, 695-6 and 695-8 models are crisscross type mini jack that provides an adjustable support solution in laboratory environments. The mini jack is especially helpful when setting up bench top test sets or module testing systems. Features: Rugged configuration Quick and smooth one knob adjustment
695 Adjustable Clamp Waveguide Mount
695 Adjustable Clamp Waveguide Mount 3 Inches Diameter, Adjustable Height: 2.01" to 1.19" Description: 95 model consists of an adjustable clamp mounted on an adjustable height rugged base stand. The unique waveguide clamp may be readily adjusted to fit the clamping jaws to particular waveguide sizes or orientations. The cast stand has a large base area to prevent moving or tipping under normal test bench conditions. For further stability, the base may be secured

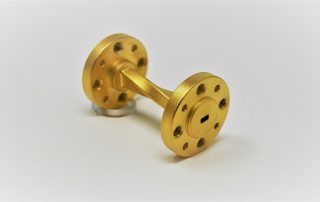

E-Band Waveguide Twists | High Precision | 110-170GHz
E-Band Precision Waveguide Twist 681E/387, 60GHz - 90GHz WR-12, UG-387/U Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 680 Series Twists are short sections of standard flanged waveguide with left-hand or 45º twist configurations while the 681 Series Twists provide 90º twist configurations. The units are available in standard waveguide sizes from 8.2 to 325 GHz. Please be sure to specify the left-hand or right-hand
