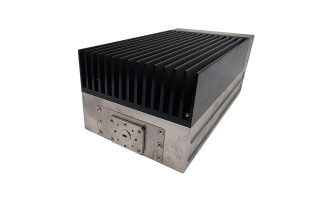

47.5 – 52.5 GHz | Upconverter

47.5 - 52.5 GHz RF Upconverter Model: 980U/47.5/52.5/383 Description Mi-Wave U-Band Upconverters deliver a high-performance and flexible solution for wideband frequency translation in advanced microwave and millimeter-wave systems. Engineered for precision applications, this upconverter translates DC to 10 GHz IF signals into a 47.5 - 52.5 GHz U-band RF output, enabling seamless integration into modern transmit architectures. An integrated synthesizer-based LO provides exceptional frequency stability and control, with full configurability through a GUI or

MIWV2026-03-24T11:25:05-04:00

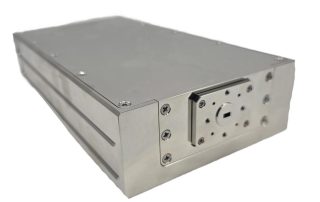

37.5-42.5 GHz | Downconverter

37.5 - 42.5 GHz RF Downconverter Model: 970B-37.5/42.5/383 Description Mi-Wave Q-Band Downconverters deliver a high-performance, flexible solution for wideband frequency translation in advanced microwave and millimeter-wave systems. Designed for precision applications, this Q-band downconverter operates over an RF input range of 37.5 to 42.5 GHz, translating signals to a DC to 10 GHz IF output for seamless integration into modern receiver architectures. An integrated synthesizer-based LO provides exceptional frequency stability and control, with

MIWV2026-03-24T11:15:15-04:00

26.5 to 40 GHz | Ka-Band Upconverter

Ka-Band RF Upconverter Model: 980A-34.5/381S Description The 980A-34.5/381S Ka-Band RF Upconverter is a high-performance frequency conversion solution designed for Ka-band transmit systems operating from 33 to 36 GHz. Engineered for demanding RF and millimeter-wave applications, this upconverter provides precise, stable translation of IF signals in the 8.5–11.5 GHz range to Ka-band frequencies with excellent spectral purity and repeatable performance. The upconverter features a high-quality external LO input (24.1–24.825 GHz) and supports multiple selectable

MIWV2026-01-06T12:55:18-05:00

Products Stock

Want to find stock for a specific part? Use the search feature (below). The list is updated frequently

MIWV2023-04-20T17:06:54-04:00

47.2 to 51.4 GHz | U-Band | Q-Band | Up-Downconverter

U-Band | Q-Band Up-Downconverter || Internal PLO 970980UB-47.2/51.4/1.85mmF-PLO || 47.2 to 51.4 GHz Description Mi-Wave RF upconverters and downconverters provide high-performance frequency conversion solutions for millimeter-wave and advanced research systems. The 970980UB-47.2/51.4/1.85mmF-PLO U-Band | Q-Band Up-Downconverter is engineered to translate extremely high-frequency U-band RF signals from 47.2 to 51.4 GHz to a lower Q-band frequency range of 37.5 to 42.5 GHz, enabling practical signal processing, measurement, and system integration at millimeter-wave frequencies. The

MIWV2026-01-06T12:45:30-05:00

35.61 GHz | Ka-Band Up-Downconverter

Ka-Band Up-Downconverter Model: 970980A-35.61/KF | 35.61 GHz Description The 970980A-35.61/KF Ka-Band Up-Downconverter is a precision RF signal conversion solution designed for fixed-frequency Ka-band systems operating at 35.61 GHz. This unit integrates both upconversion and downconversion functions within a single platform, enabling bidirectional frequency translation between Ka-band RF and IF frequencies from 4 to 5.5 GHz. Engineered for applications requiring exceptional frequency stability and spectral control, the 970980A-35.61/KF supports a 600 MHz operational bandwidth

MIWV2026-01-06T12:53:12-05:00

39.4 to 39.9 GHz | Ka-Band Downconverter

Ka-Band Downconverter 970A-39.65/599 || 39.4 to 39.9 GHz Description Mi-Wave RF upconverters and downconverters provide high-performance frequency conversion solutions for microwave and millimeter-wave receiver systems. The 970A-39.65/599 Ka-Band Downconverter is engineered to translate high-frequency Ka-band RF signals from 39.4 to 39.9 GHz to a lower intermediate frequency, supporting receiver architectures where low noise figure, gain stability, and spectral integrity are critical. Operating with a 500 MHz RF bandwidth, the 970A-39.65/599 downconverts incoming Ka-band

MIWV2026-01-06T12:51:05-05:00

65 to 62.5 GHz | V-Band Downconverter

V-Band Downconverter 970V-62.5/385 || 60 to 65 GHz Description Mi-Wave RF upconverters and downconverters provide reliable frequency conversion solutions for microwave and millimeter-wave systems. The 970V-62.5/385 V-Band Downconverter is engineered to translate V-band RF signals from 60 to 65 GHz to a lower intermediate frequency range of 1.5 to 5 GHz, supporting receiver architectures where stable frequency translation and straightforward system integration are required. The downconversion process is accomplished using an external local

MIWV2026-01-06T12:42:48-05:00

95 GHz to 100 GHz | W-Band Up-Downconverter

W-Band Up-Downconverter 970980W-20/387S || 95 GHz to 100 GHz DescriptionMi-Wave RF upconverters and downconverters deliver high-performance frequency conversion solutions for microwave, millimeter-wave, and advanced research systems. The 970980W-20/387S W-Band Up-Downconverter is a fully integrated transceiver engineered for operation across the 95 to 100 GHz W-band, supporting both transmit and receive signal paths within a single compact platform. The unit provides frequency translation between a fixed 2.1 GHz intermediate frequency (IF) and W-band RF,

MIWV2026-01-06T12:25:51-05:00
