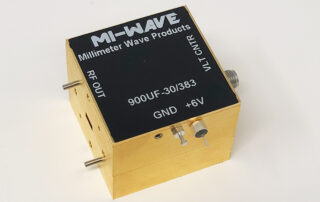

900U Pin Diode Voltage Variable Attenuators

40 GHz – 60 GHz, Voltage Controlled Attenuator 900UF-30/383, WR-19, Power Handling 20 dBm, Attenuation Range 30 dB Description: Mi-Wave’s 900 Series Pin Diode or MMIC Attenuator is a reflective attenuator that combines low loss, high isolation performance in a compact package. Attenuation options are available for the 900 Series attenuation with isolation versions up to 60 dB. These attenuators are supplied without drivers, control is typically 0 to +10 Vdc. PIN attenuators

Millimeter Wave2025-09-29T14:53:16-04:00

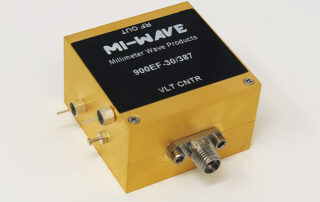

900E Pin Diode Voltage Variable Attenuators

60 GHz – 90 GHz, Voltage Controlled Attenuator 900EF-30/387, WR-12, Power Handling 20 dBm, Attenuation Range 30 dB Description: Mi-Wave’s 900 Series Pin Diode or MMIC Attenuator is a reflective attenuator that combines low loss, high isolation performance in a compact package. Attenuation options are available for the 900 Series attenuation with isolation versions up to 60 dB. These attenuators are supplied without drivers, control is typically 0 to +10 Vdc. PIN attenuators

Millimeter Wave2025-09-29T14:51:51-04:00

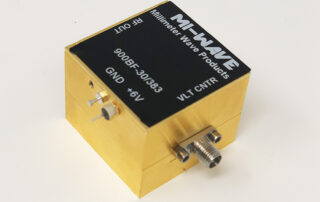

900B Pin Diode Voltage Variable Attenuators

33 GHz – 50 GHz, Voltage Controlled Attenuator 900BF-30/383, WR-22, Power Handling 20 dBm, Attenuation Range 30 dB Description: Mi-Wave’s 900 Series Pin Diode or MMIC Attenuator is a reflective attenuator that combines low loss, high isolation performance in a compact package. Attenuation options are available for the 900 Series attenuation with isolation versions up to 60 dB. These attenuators are supplied without drivers, control is typically 0 to +10 Vdc. PIN attenuators

Millimeter Wave2025-09-29T14:56:11-04:00

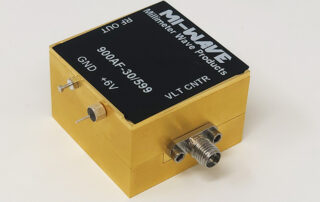

900A Pin Diode Voltage Variable Attenuators

26.5 GHz – 40 GHz, Voltage Controlled Attenuator 900AF-30/599, WR-28, Power Handling 23 dBm, Attenuation Range 30 dB Description: Mi-Wave’s 900 Series Pin Diode or MMIC Attenuator is a reflective attenuator that combines low loss, high isolation performance in a compact package. Attenuation options are available for the 900 Series attenuation with isolation versions up to 60 dB. These attenuators are supplied without drivers, control is typically 0 to +10 Vdc. PIN attenuators

Millimeter Wave2025-09-29T14:55:43-04:00

Pin Diode Voltage Variable Attenuators

Pin Diode Voltage Variable Attenuators Mi-Wave’s 900 Series Pin Diode or MMIC Attenuator is a reflective attenuator that combines low loss, high isolation performance in a compact package. Attenuation options are available for the 900 Series attenuation with isolation versions up to 60 dB. Note: Our website contains just a few types of Attenuators we build. Consult with us for your specific needs. Note: Our website contains just a few types of Attenuators amplifiers we

Millimeter Wave2023-06-08T15:36:28-04:00

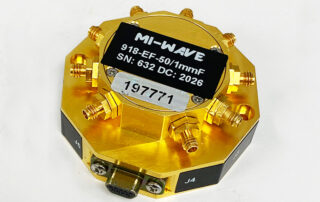

8 Way High Speed Switch | 60GHz – 90GHz SP8T Switch | 1mm Connectors

Products > Switches > Pin Diode MMIC Switches 60 - 90 GHz, 8-Way High Speed Switch 918EF-50/1mmF, Isolation 50dB, Insertion Loss 6.5dB, Switch Speed 50ns Description: Mi-Wave’s 918 Series E-Band SP8T 8-Way High Speed Pin Diode Switch is a full band 8 way switch designed for 60GHz - 90GHz E-Band usage. Key features of this product and its carefully crafted construction make this an excellent product for your SP8T needs. View associated outline drawings and plot

Millimeter Wave2024-04-04T13:36:02-04:00

H-Band, Fixed Attenuators, High Power

524H Series | High Power Handling See below for specified attenuation values. 524H-3/387 • Attenuation 3 dB • WR-4 Waveguide • UG-387/U Flange • Aluminum/Gold Plated View Datasheet 524H-6/387 • Attenuation 6 dB • WR-4 Waveguide • UG-387/U Flange • Aluminum/Gold Plated View Datasheet 524H-10/387 • Attenuation 10 dB • WR-4 Waveguide • UG-387/U Flange • Aluminum/Gold Plated View Datasheet 524H-20/387 • Attenuation 20

Millimeter Wave2020-11-30T17:21:01-05:00

H-Band, Fixed Attenuators, Low Power

521H Series | Low Power Handling See below for specified attenuation values. 521H-3/387 • Attenuation 3 dB • WR-4 Waveguide • UG-387/U Flange • Aluminum/Gold Plated View Datasheet Outline Drawing 521H-5/387 • Attenuation 5 dB • WR-4 Waveguide • UG-387/U Flange • Aluminum/Gold Plated View Datasheet Outline Drawing 521H-6/387 • Attenuation 6 dB • WR-4 Waveguide • UG-387/U Flange • Aluminum/Gold Plated View Datasheet Outline Drawing

Millimeter Wave2020-11-30T17:15:14-05:00

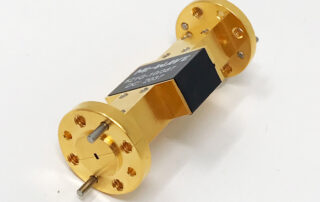

H-Band, Fixed Attenuators, WR-4 Waveguide

H-Band Fixed Attenuators (Series 521/524) Choose power handling version needed. Low Power Handling • 521H Series • 0.3 Watts View More High Power Handling • 524H Series • Up to 150 Watts View More

Millimeter Wave2020-11-30T17:03:25-05:00
