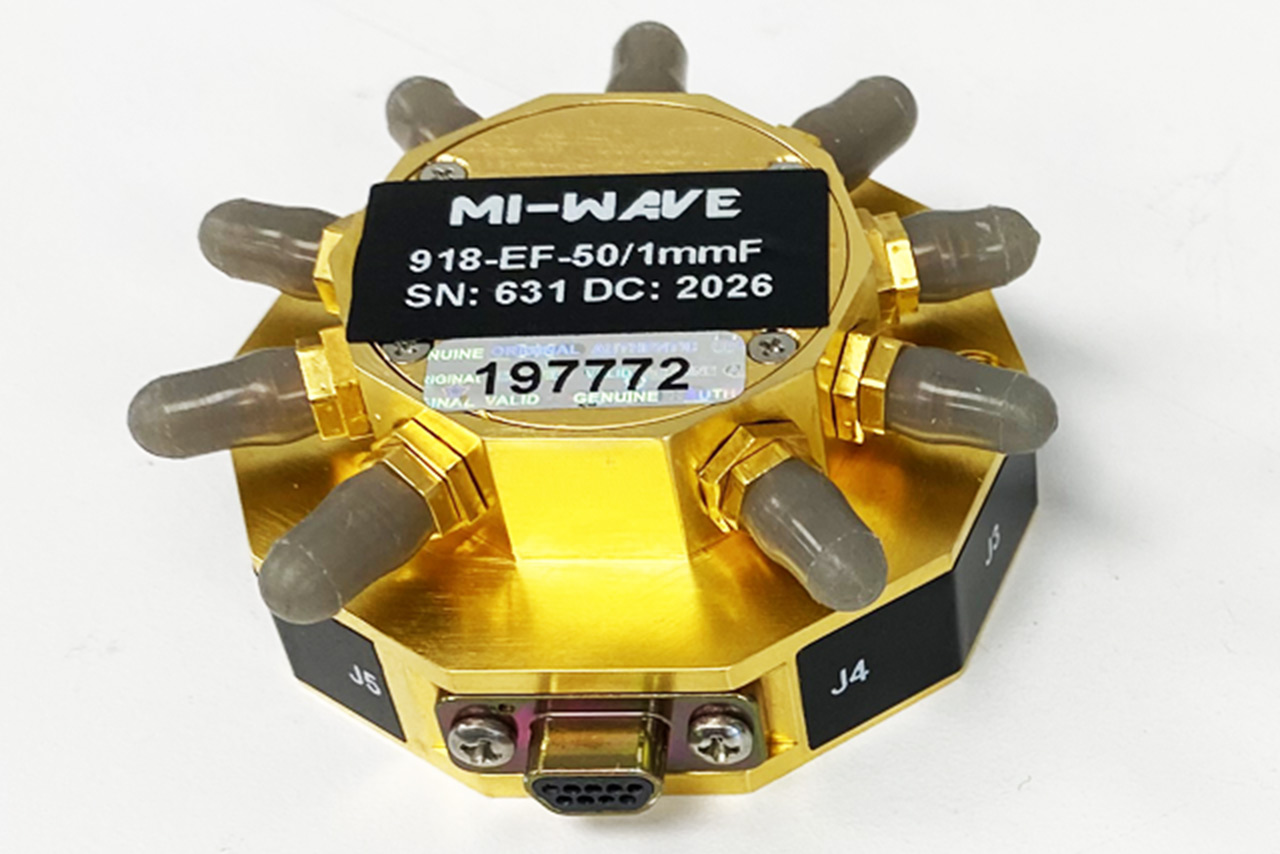

60 – 90 GHz, 8-Way High Speed Switch

918EF-50/1mmF, Isolation 50dB, Insertion Loss 11dB, Switch Speed 50ns

Description:

Mi-Wave’s 918 Series E-Band SP8T 8-Way High Speed Pin Diode Switch is a full band 8 way switch designed for 60GHz – 90GHz E-Band usage. Key features of this product and its carefully crafted construction make this an excellent product for your SP8T needs. View associated outline drawings and plot data collected.

Features

• 8 Way Switch

• Full Band

• High Isolation

• High Speed

• Coax Ports with 1mm Connectors

Applications

• Radar & Astronomy Systems

• RF Communication Systems

• Test Equipment & Labs

• Switching Networks

Outline Drawing
Test Datasheet
Truth Table
Insertion Loss
Isolation
*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

SP8T Pin Diode Switch

The 918 Series Pin diode based sp8t switch is a single pole, eight throw switch with a TTL driver that operates between 60 and 90 GHz with 1mm connectors.

This model offers a small circular form factor.

Insertion Loss 11dB typ

Isolation 50dB typ

Switching Speed 50ns typ

DC Bias +6V / +8V MAX

TTL Control Logic Low 0V – Logic High +5V

Maximum RF Input Power + 23dBm CW max
