Electro-Mechanical RF Waveguide Switch, Frequency 33 GHz to 50 GHz, WR-22

33 - 50 GHz, Electro-Mechanical Two-Position Waveguide Switch 535B/383TTL, Switching speed 0.2 sec External & 0.5 sec Manual, Life Span over 1 Million cycles Description: Mi-Wave's 535 Series waveguide switches consists of a waveguide switch selection similar to the 530 switch and a rotary motor encased in a machined housing. These switches are used in application that require remote-controlled or timed transmission line switching. They are particularly useful in operational systems and test

Millimeter Wave2020-12-18T14:33:52-05:00

Electro-Mechanical RF Waveguide Switch, Frequency 26.5 GHz 40 GHz, WR-28

26.5 - 40 GHz, Electro-Mechanical Two-Position Waveguide Switch 535A/599TTL, Switching speed 0.2 sec External & 0.5 sec Manual, Life Span over 1 Million cycles Description: Mi-Wave's 535 Series waveguide switches consists of a waveguide switch selection similar to the 530 switch and a rotary motor encased in a machined housing. These switches are used in application that require remote-controlled or timed transmission line switching. They are particularly useful in operational systems and test

Millimeter Wave2020-12-18T14:03:10-05:00

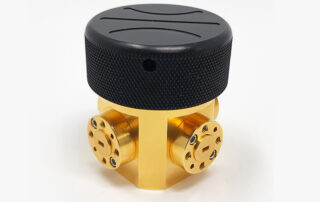

Manual Waveguide Switch, Frequency 220 GHz – 325 GHz, WR-3

220 - 325 GHz, Four Position Manual Waveguide Switch 530J/387, Insertion Loss 2.0 dB, VSWR 1.30:1, Isolation 40 dB Description: Mi-Wave's 530 Series waveguide switches consists of a waveguide switch selection and a rotary motor encased in a machined housing. They are particularly useful in operational systems and test setups where they supply variety of switching combinations. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and

Millimeter Wave2020-12-18T13:27:25-05:00

Manual Waveguide Switch, Frequency 170 GHz – 260 GHz, WR-4

170 - 260 GHz, Four Position Manual Waveguide Switch 530H/387, Insertion Loss 1.0 dB, VSWR 1.25:1, Isolation 45 dB Description: Mi-Wave's 530 Series waveguide switches consists of a waveguide switch selection and a rotary motor encased in a machined housing. They are particularly useful in operational systems and test setups where they supply variety of switching combinations. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and

Millimeter Wave2020-12-18T13:25:47-05:00

Manual Waveguide Switch, Frequency 140 GHz – 220 GHz, WR-5

140 - 220 GHz, Four Position Manual Waveguide Switch 530G/387, Insertion Loss 1.0 dB, VSWR 1.25:1, Isolation 45 dB Description: Mi-Wave's 530 Series waveguide switches consists of a waveguide switch selection and a rotary motor encased in a machined housing. They are particularly useful in operational systems and test setups where they supply variety of switching combinations. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and

Millimeter Wave2020-12-18T13:24:13-05:00

Manual Waveguide Switch, Frequency 110 GHz – 170 GHz, WR-6

110 - 170 GHz, Four Position Manual Waveguide Switch 530D/387, Insertion Loss 0.7 dB, VSWR 1.15:1, Isolation 50 dB Description: Mi-Wave's 530 Series waveguide switches consists of a waveguide switch selection and a rotary motor encased in a machined housing. They are particularly useful in operational systems and test setups where they supply variety of switching combinations. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and

Millimeter Wave2020-12-18T13:21:41-05:00

Manual Waveguide Switch, Frequency 90 GHz – 140 GHz, WR-8

90 - 140 GHz, Four Position Manual Waveguide Switch 530F/387, Insertion Loss 0.7 dB, VSWR 1.15:1, Isolation 50 dB Description: Mi-Wave's 530 Series waveguide switches consists of a waveguide switch selection and a rotary motor encased in a machined housing. They are particularly useful in operational systems and test setups where they supply variety of switching combinations. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and

Millimeter Wave2020-12-18T13:19:01-05:00

Manual Waveguide Switch, Frequency 75 GHz – 110 GHz, WR-10

75 - 110 GHz, Four Position Manual Waveguide Switch 530W/387, Insertion Loss 0.4 dB, VSWR 1.15:1, Isolation 60 dB Description: Mi-Wave's 530 Series waveguide switches consists of a waveguide switch selection and a rotary motor encased in a machined housing. They are particularly useful in operational systems and test setups where they supply variety of switching combinations. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and

Millimeter Wave2020-12-29T23:47:53-05:00

Manual Waveguide Switch, Frequency 60 GHz – 90 GHz, WR-12

60 - 90 GHz, Four Position Manual Waveguide Switch 530E/387, Insertion Loss 0.5 dB, VSWR 1.15:1, Isolation 60 dB Description: Mi-Wave's 530 Series waveguide switches consists of a waveguide switch selection and a rotary motor encased in a machined housing. They are particularly useful in operational systems and test setups where they supply variety of switching combinations. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and

Millimeter Wave2020-12-18T13:14:53-05:00
