"hẹ hẹ hẹ" - Millimeter Wave Products | Waveguide Products

K-Band Waveguide Bends & Twists | H-plane Bends

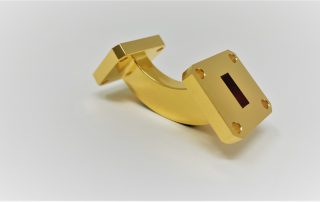

K-Band Waveguide Bend 670K/595, 18GHz - 26.5GHz WR-42, UG-595/U Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 670, 671, 672, and 675 Series H-plane Bends are sections of high-precision waveguide accurately shaped to either 30º (671), 45º, (675),60º (672), or 90º (670). Special angles, radii, and configurations for all particular applications can be developed in a special order. All H-plane bends are available from 18

Brian Lapuste2021-10-12T18:47:31-04:00

H-Plane Waveguide Bends | 18GHz-325GHz

H-Plane | Waveguide Bends | 8.2 GHz - 325 GHz Mi-Wave’s 670, 671, 672, and 675 Series H-plane Bends are sections of high-precision waveguide accurately shaped to either 30º (671), 45º, (675),60º (672), or 90º (670). Special angles, radii, and configurations for all particular applications can be developed in a special order. All H-plane bends are available from 18 to 320 GHz. Applications H-plane bends series provide accurate offsets and directional changes in waveguide transmission lines for

Brian Lapuste2023-12-13T17:11:39-05:00

Waveguide Straight Sections | 8.2GHz-500GHz

Waveguide Straight Sections | 12.4 GHz - 500 GHz Mi-Wave’s 690 Series flanged waveguide sections are available in standard waveguide sizes from 8 to 500 GHz. Each section is precisely fabricated using MIL-SPEC waveguide and flanges. Precise control of the fabrication processes eliminates waveguide discontinuities and distortion. The 690 Series waveguide is available in a wide variety of materials. Available lengths are limited by raw waveguide which varies in length with each waveguide size. Check with Mi-Wave’s sales

Brian Lapuste2023-04-26T18:17:11-04:00

E-Band Rectangular Waveguide Adapters

E-Band | Rectangular - to - Rectangular Waveguide Adapters Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss. E-W-Band, WR-12 to WR-10, Rectangular to Rectangular Waveguide Adapter 692E-W/387, VSWR 1.10:1

Brian Lapuste2023-04-07T19:34:03-04:00

G-Band Rectangular Waveguide Adapters

G-Band | Rectangular - to - Rectangular Waveguide Adapters Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss. G-H-Band, WR-05 to WR-04, Rectangular to Rectangular Waveguide Adapter 692G-H/387, VSWR 1.25:1

Brian Lapuste2021-09-28T18:21:02-04:00

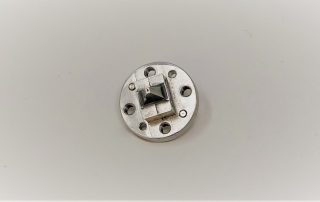

WR-2.2 Waveguide Probe Antennas | 325GHz – 500GHz

Products> Antenna Products >Waveguide Probe Antennas WR-2.2 Waveguide Probe Antennas 260(2.2)/387, 325GHz - 500GHz WR-2.2, UG-387/U-M Description: Mi-Wave's 260 Series Waveguide Probe Antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. Mi-wave’s probe antennas offer operating frequencies from 8.2-500 GHz. These antennas offer a low gain variation across their operating frequency.

Brian Lapuste2025-09-29T14:07:37-04:00

J-Band Waveguide Probe Antennas | 220GHz – 325GHz

Products> Antenna Products >Waveguide Probe Antennas J-Band Waveguide Probe Antennas 260J/387, 220GHz - 325GHz WR-03, UG-387/U-M Description: Mi-Wave's 260 Series Waveguide Probe Antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. Mi-wave’s probe antennas offer operating frequencies from 8.2-500 GHz. These antennas offer a low gain variation across their operating frequency.

Brian Lapuste2025-09-29T14:22:08-04:00

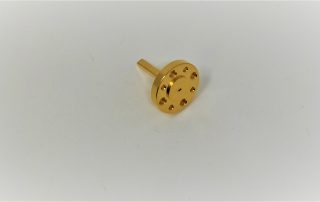

H-Band Waveguide Probe Antennas | 170GHz – 260GHz

Products> Antenna Products >Waveguide Probe Antennas H-Band Waveguide Probe Antennas 260H/387, 170GHz - 260GHz WR-04, UG-387 Description: Mi-Wave's 260 Series Waveguide Probe Antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. Mi-wave’s probe antennas offer operating frequencies from 8.2-500 GHz. These antennas offer a low gain variation across their operating frequency.

Brian Lapuste2024-05-14T16:32:29-04:00

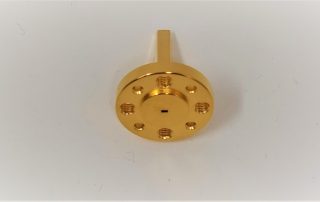

G-Band Waveguide Probe Antennas | 140GHz – 220GHz

Products> Antenna Products >Waveguide Probe Antennas G-Band Waveguide Probe Antennas 260G/387, 140GHz - 220GHz WR-05, UG-387 Description: Mi-Wave's 260 Series Waveguide Probe Antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. Mi-wave’s probe antennas offer operating frequencies from 8.2-500 GHz. These antennas offer a low gain variation across their operating frequency.

Brian Lapuste2025-09-29T14:21:34-04:00
