"hẹ hẹ hẹ" - Millimeter Wave Products | Waveguide Products

Ka-Band 460A-23/31KF | RF Band Pass Filter

Ka-Band 460A-23/31/KF, Passband Insertion Loss 1.3 dB, Rejection 33 dB Ka-Band, 23GHz – 31 GHz Description: Mi-Wave's 460 Series Bandpass Filters are used for narrow and wideband applications. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. The 460 Series Bandpass filter can be designed from 18 to 110GHz. Please consult Mi-Wave for further dimensions and specific technical data.

Mauricio Miranda2023-08-15T15:40:38-04:00

Fixed Waveguide Short Circuits | 12.4GHz – 325GHz

Fixed Waveguide Short Circuits Mi-Wave’s 595 Series Fixed Waveguide Short Circuits are available in standard waveguide sizes from 12.4 to 325 GH Note: Our website contains just a few types of Terminaions we build. Consult with us for your specific needs. 595K Waveguide Short Circuit, UG-595/U Flange View Product 595A Waveguide Short Circuit, UG-599/U Flange View Product 595B Waveguide

Mauricio Miranda2023-09-25T14:32:27-04:00

Adjustable Waveguide Short Circuits | 12.4GHz – 220GHz

Adjustable Waveguide Short Circuits Mi-Wave’s 590 Series Waveguide Short Circuits are available in standard waveguide sizes from 12.4 to 325 GHz. The non-contacting choke type short circuit is designed to operate with high electrical stability over a broad range of frequencies. The micrometer drive provides smooth, accurate positional tuning over the entire distance traveled and a positive locking device ensures continued setting reliability. Note: Our website contains just a few types of Terminaions we build. Consult with

Mauricio Miranda2023-09-28T16:22:42-04:00

J-Band Compact Isolators 220-325GHz

Products> Isolators> Full Band – Compact Isolators > 116J/387 J-Band Compact Isolators J-Band Compact Isolators 220-325GHz, WR-3 Waveguide, 6.25dB Insertion Loss, 25dB Isolation Description: Mi-Wave’s 116 series J-band isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum reproducibility and performance,

Mauricio Miranda2024-02-14T19:58:19-05:00

H-Band Compact Isolators 170GHz – 260GHz

Products> Isolators> Full Band – Compact Isolators > 116H/387 H-Band Compact Isolators H-Band Isolators 170GHz – 260GHz, WR-4 Waveguide, 6.25 dB Insertion Loss, 20dB Isolation Description: Mi-Wave’s 116 series H-band isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum reproducibility

Mauricio Miranda2024-02-14T19:59:26-05:00

G Band Compact Isolators 140GHz – 220GHz

Products> Isolators> Full Band – Compact Isolators > 116G/387 G-Band Compact Isolators G-Band Compact Isolators 140GHz – 220GHz, WR-5 Waveguide, 4.75 dB Insertion Loss, 20dB Isolation Description: Mi-Wave’s 115 series G-band isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum

Mauricio Miranda2024-02-14T19:59:40-05:00

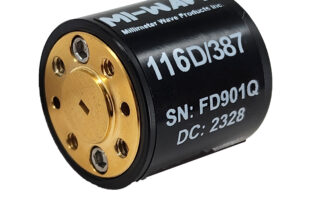

D Band Compact Isolators 110GHz – 170GHz

Products> Isolators> Full Band – Compact Isolators > 116D/387 D-Band Compact Isolators D-Band Isolators 110GHz – 170GHz, WR-6 Waveguide, 4.35 dB Insertion Loss, 20dB Isolation Description: Mi-Wave’s 116 series D-band isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum reproducibility

Mauricio Miranda2024-02-14T19:59:44-05:00

F Band Compact Isolators 90GHz – 140GHz

Products> Isolators> Full Band – Compact Isolators > 116F/387 F-Band Compact Isolators F-Band Compact Isolators 90GHz – 140GHz, WR-8 Waveguide, 3.95 dB Insertion Loss, 20dB Isolation Description: Mi-Wave’s 116 series F-band isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum

Mauricio Miranda2024-02-14T19:59:48-05:00

W Band Compact Isolators 75GHz – 110GHz

Products> Isolators> Full Band – Compact Isolators > 116E/387 E-Band Compact Isolators W-Band Compact Isolators 75GHz – 110GHz, WR-10 Waveguide, 3.45 dB Insertion Loss, 25dB Isolation Description: Mi-Wave’s 116 series W-band isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum

Mauricio Miranda2024-02-14T19:59:52-05:00
