"J" - Millimeter Wave Products | Waveguide Products

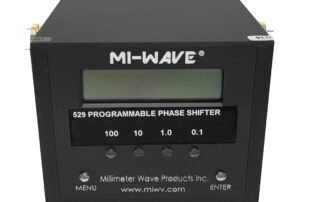

Motorized | Programmable | Rotary Vane Phase Shifters | 18GHz – 170GHz

Motorized | Programmable | Rotary Vane Phase Shifters Mi-Wave has developed a new motorized rotary vane phase shifter which is available in W/G bands from 18.0 to 170 GHz. The 529 Series is a computer-controlled version of Mi-Waves’ standard direct reading phase shifter and features a 0º to 360º range with 0.5-degree resolution. IEEE-488 & USB available. The 529 Series Motorized Direct-reading Phase Shifters are used in all RF automated measurement systems. They are most frequently used

Brian Lapuste2023-07-13T15:11:07-04:00

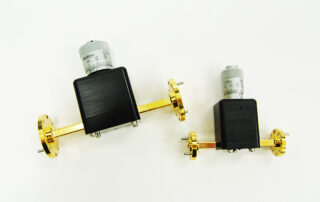

Micrometer Driven Calibrated Phase Shifter

Micrometer Type Calibrated Phase Shifter Mi-Wave’s 527 Series Phase Shifters are designed for operation in waveguide sizes from 18 to 220 GHz. This resolution is advantageous since the total travel of the phase shift vane is quite short at high frequencies. The precise micrometer readout enhances setting and repeatability of these devices tested. Each phase shifter is at the specified frequency. Calibrations are supplied at an additional cost. Note: Our website contains just a few types of

Brian Lapuste2023-03-29T16:36:06-04:00

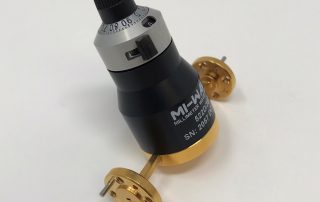

Dial Driven Calibrated Phase Shifter | 18GHz – 220GHz

Calibrated/Uncalibrated Phase Shifters Mi-Wave’s 525 Uncalibrated an 526 Calibrated Phase Shifters provide phase shifts from 0º to 180º at any frequency within the waveguide band. Designed to maintain reliable performance for accurate test measurements, the firm setting control of these devices maintains stable performance under all normal conditions of unit orientation and test bench vibration. Note: Our website contains just a few types of Phase Shifters we build. Consult with us for your specific needs.

Brian Lapuste2023-03-29T16:36:06-04:00

Ka-Band | RF Band Pass Filter

460A-35/7/KF, Passband Insertion Loss 1.5 dB, I/O Impedance 50 Ohms Ka-Band, 32.5GHz – 38.5 GHz Description: Mi-Wave's 460 Series Bandpass Filters are used for narrow and wideband applications. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. The 460 Series Bandpass filter can be designed from 18 to 110GHz. Please consult Mi-Wave for further dimensions and specific technical data. Features •

Brian Lapuste2025-10-01T13:50:52-04:00

Ka-Band | RF Band Pass Filter

460A-26.5/KF, Passband Insertion Loss 1.5 dB, Rejection 60 dB Ka-Band, 23GHz – 30 GHz Description: Mi-Wave's 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460 Series

Brian Lapuste2025-10-01T13:42:55-04:00

Series 460 U-Band Bandpass Filter 460U-58/383

460U-58/383, Passband Insertion Loss 2.0 dB, Rejection -55 dBc U-Band, 57.5-58.5 GHz Description: Mi-Wave's 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460 Series Bandpass

Brian Lapuste2025-10-01T14:51:48-04:00

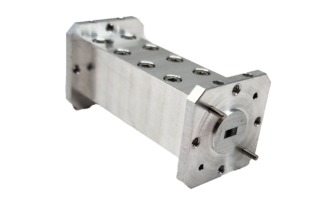

Series 460 U-Band Bandpass Filter 460U-55/383

460U-55/383 , Passband Insertion Loss 2.0 dB, Rejection -60 dBc U-Band, 53.5GHz – 56.5 GHz Description: Mi-Wave's 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460

Brian Lapuste2025-10-01T14:40:38-04:00

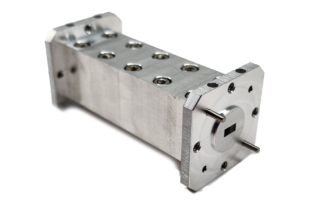

Series 460 U-Band Bandpass Filter 460U-52/383

460U-52/383 , Passband Insertion Loss 2.0 dB, Rejection -50 dBc U-Band, 49.5GHz – 54.5 GHz Description: Mi-Wave's 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460

Brian Lapuste2025-10-01T14:29:25-04:00

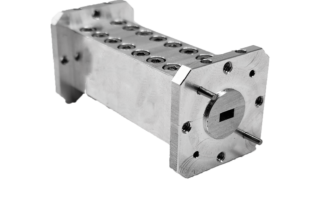

Series 460 U-Band | Bandpass Filter 460U-49.50/383

460U-49.50/383 , Passband Insertion Loss 1.0 dB, Bandwidth 5 GHz U-Band, 47GHz – 52 GHz Description: Mi-Wave's 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460

Brian Lapuste2025-10-01T14:20:09-04:00
