J-(2.2)-Band to Rectangular Waveguide Adapter | 170 – 260GHz

J-Band Rectangular to Rectangular Adapter 692J-(2.2)/387 , 220GHz - 325GHz WR-03, UG-387/U Flange Description: Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss. These adapters are available in many waveguide

Brian Lapuste2021-09-03T19:23:26-04:00

H-J-Band to Rectangular Waveguide Adapter | 170 – 260GHz

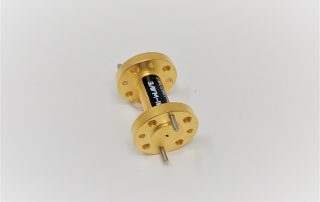

H-J-Band Rectangular to Rectangular Adapter 692H-J/387 , 170GHz - 260GHz WR-04, UG387/U Flange Description: Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss. These adapters are available in many waveguide

Brian Lapuste2021-09-03T19:17:47-04:00

W-J-Band Rectangular Waveguide Adapters | 75- 110GHz

W-J-Band Rectangular to Rectangular Adapter 692W-J/387 , 75GHz - 110GHz WR-10, UG-387/U-M Flange Description: Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss. These adapters are available in many waveguide

Brian Lapuste2021-09-03T18:43:25-04:00

J-Band Standard Gain Horn Antennas | WR-3 | 220 – 325 GHz

Products> Antenna Products > Standard Gain Horns > 261J-25/387 Standard Gain Horns WR-3 Standard Gain Horn Antennas | 25 dBi Gain 220 GHz – 325 GHz, Gain 25 dBi, Polarization Linear, VSWR 1.15:1 Description: Mi-Wave's J-Band Horn Antennas, engineered for optimal performance. Designed to operate within the 220 – 325 GHz spectrum and crafted with WR-3 waveguide dimensions, these antennas are tailored with the end consumer in focus. Recognizing your need for excellence in J-Band

Brian Lapuste2024-10-29T11:16:34-04:00

J-Band Standard Gain Horn Antennas | WR-3 | 220 – 325 GHz

Products> Antenna Products > Standard Gain Horns > 261J-15/387 Standard Gain Horn WR-3 Standard Gain Horn Antennas | 15 dBi Gain 220 GHz – 325 GHz, Gain 25 dBi, Polarization Linear, VSWR 1.15:1 Description: Mi-Wave's J-Band Horn Antennas read to go. WR-3 waveguide size operating in the 220 – 325 GHz spectrum are created with the end consumer in mind. We know you need and demand the absolute best when it comes to j-band horn

Brian Lapuste2024-10-29T11:20:54-04:00

E & H Plane Tees | Waveguide Tees | Tee Junctions

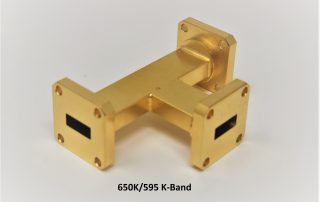

E & H Plane Tees Mi-Wave's 640 Series E-plane Tees are block-style waveguide components with an E-plane junction symmetrically positioned on the broad waveguide wall. These tees divide the input power equally between two outputs, with the signals in opposite phase. Similarly, the 650 Series H-plane Tees, also block-style, feature an H-plane junction on the narrow waveguide wall. The input power is split into equal, in-phase signals at the main outputs. Both series are available in standard

Brian Lapuste2024-09-25T14:48:51-04:00

Direct Reading Precision Phase Shifter | 26.5GHz – 170GHz | Adjustable

Direct-Reading Phase Shifters Mi-Wave’s 528 Series Direct-reading Phase Shifters provide highly accurate measurement of phase shift over each full waveguide band from 26.5 to 170.0 GHz. They feature low VSWR, low insertion-loss, and low insertion-loss variation due to the rotation of the phasing section. The 528 Series Direct-reading Phase shifters offer a convenient, frequency insensitive method of measuring phase shift. These devices are useful in waveguide systems where the phase and amplitude must be measured or adjusted

Brian Lapuste2023-04-25T20:46:59-04:00

Multi-Junction Waveguide Circulators

Multi-Junction Waveguide Circulators Mi-Wave's 180 series is an H-plane, three-junction, three-port, Y-junction ferrite device. All external mating surfaces are machined to extreme flatness to provide connection to standard waveguide flanges for minimum discontinuity. The 180 Series circulators are available in standard wave-guide sizes from 18.00 to 110 GHz. Note: MIWV no longer offers Series 180 Circulator Features Low Loss Low VSWR High Isolation (30dB typ.) Adjustable OUTLINES: Ka-Band E-Band V-Band W-Band

Brian Lapuste2023-11-08T20:13:36-05:00

Y-Junction Waveguide Circulators

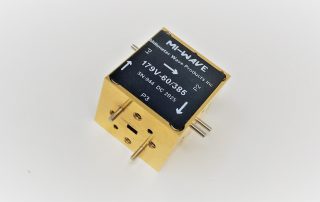

Products>Circulators> Y-Junction Waveguide Circulators Y-Junction Waveguide Circulators Description Mi-Wave’s 179 is an H-plane, three-port Y-junction ferrite device. All external mating surfaces are machined to extreme flatness to provide connection to standard waveguide flanges for minimum discontinuity. The 179 Series circulators are available in standard waveguide sizes from 18.0 to 110 GHz. View PDF Note: Our website contains just a few types of Circulators we build. Consult with us for

Brian Lapuste2024-09-04T15:36:36-04:00
