"J" - Millimeter Wave Products | Waveguide Products

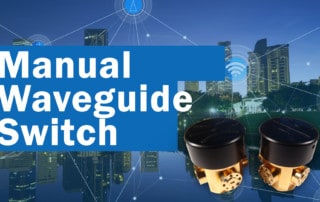

Manual Waveguide Switch

Four Position Manual Waveguide Switch Mi-Wave’s 530 Series Manual Switches are designed for use in standard millimeter wave frequency bands from 8.4 to 325 GHz. Each unit will operate over the full waveguide bandwidth with minimum insertion loss, minimum VSWR, and maximum isolation between coupled and uncoupled waveguide sections. The 530 Series Manual Waveguide Switches are used for transmission switching applications in millimeter wave systems. These versatile devices provide a variety of switching combinations using three waveguide channels

Millimeter Wave2023-04-26T15:04:22-04:00

30 Ghz to 33 Ghz RF Synthesizer

30GHz - 33 GHz Synthesizer 958A/31.5, Ka-band, WR-28, 17 dBm Output Power, 10 MHz External Reference Description: Mi-Wave’s 958 Series Synthesizers is available from 1GHz to 110GHz. The 958 is a low phase noise frequency synthesizer module designed and manufactured for standard test instrumentation, communication, and Radar systems as a local oscillator. RF frequency synthesizers provide high levels of performance in terms of stability, programmability, and general convenience. As most equipment requiring the

Millimeter Wave2025-12-11T15:01:59-05:00

Millimeter-Wave Mechanically Controlled Oscillator Sources, Signal Sources, 830-Series

RF Mechanically Controlled Oscillators Mi-Wave’s 830 Series Mechanically Controlled Oscillator source is available in the 18 to 110GHz frequency range. This source can be used for a mixer local oscillator or transmit source. The 830 Series is a moderate stability source and is commonly found in applications like radar, radiometers, local oscillators, telecommunications, and others. Very high power sources are available. Note: Other power levels available. Please consult the factory. Note: Our website contains just a few

Millimeter Wave2023-04-25T18:38:21-04:00

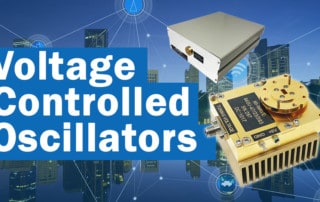

Voltage Controlled Oscillator

RF Wide Band Voltage Controlled Oscillators VCO Mi-Wave’s 840 Voltage controlled sources are available in 18 to 110Ghz. This source can be used as a modulated transmitter or local oscillator. Common applications include radar, swept sources, and telecommunications systems. Other power levels are available. Please consult the factory. Note: Our website contains just a few types of Voltage Control Oscillators we build. Consult with us for your specific needs. Note: Our website contains just a few types

Millimeter Wave2022-02-13T11:07:13-05:00

Phase Locked Oscillator

Features of Mi-Wave Phase-Locked Oscillator Mi-Wave’s 957 Series Phase Locked Oscillators use fixed frequency low noise synthesizer technology. These oscillators use an external reference from 1MHz to 600MHz and frequency outputs from 100MHz to 110GHz. Both coaxial and waveguide versions available. Internal crystal references are available on request. 957 Coaxial Model 957 Waveguide Model View Product View Product Test Data

Millimeter Wave2022-02-07T17:07:59-05:00

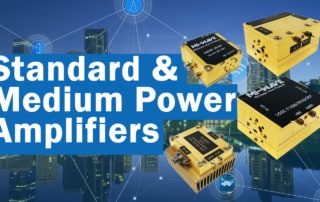

Medium Power Amplifiers – Standard Amplifiers

Features of Mi-Wave RF Medium Power Amplifiers Mi-Wave’s 955 Series microwave and millimeter wave amplifiers offer a wide variety of frequency ranges, bandwidths, gain and power outputs .Low cost production designs to meet the demanding needs of communications are also now available . Please consult Mi-Wave for technical specifications and outline drawings • High Gain • Full Bandwidths • High 1 db Comp. Points • Wide Variety of Frequency Ranges • 8 GHz to 140 GHz View

Millimeter Wave2020-08-02T00:02:49-04:00

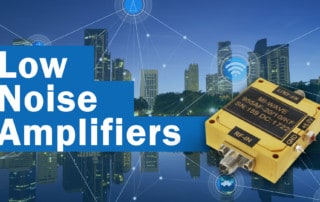

Low Noise Amplifiers

Products> Amplifiers > Low Noise Amplifiers Low Noise Amplifiers Mi-Wave’s 955 series microwave and millimeter wave low noise amplifiers offer a wide variety of frequency ranges, bandwidths, gain, and power outputs to meet future design needs in a wide range applications. Please consult Mi-Wave for technical specifications and outline drawings. Note: Our website contains just a few types of Amplifiers we build. Consult with us for your specific needs. A low-noise amplifier (LNA) is an electronic

Millimeter Wave2024-02-28T16:39:12-05:00

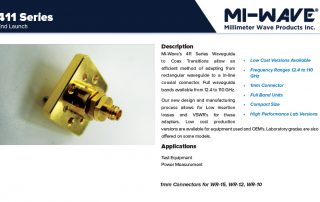

Waveguide to Coax Inline Adapters & Transitions | Full Band

Waveguide to Coax Adapter | Inline Adapters & Transitions | 8.2GHz - 110GHz Mi-Wave’s 411 Inline Waveguide to Coaxial Adapter allows an efficient method of adapting from a rectangular waveguide to an in-line coaxial connector. Full waveguide bands are available from 8.2 to 110 GHz. Our new design and manufacturing process allows for Low insertion losses and VSWR’s for these adapters. Frequency Ranges 8.2 to 110 GHz Wide Variety of Coax Connectors Available High-Performance Versions for Laboratory

Millimeter Wave2023-02-03T15:35:31-05:00

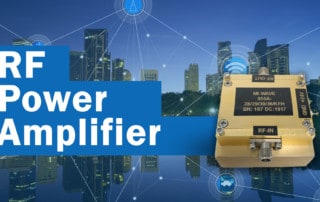

RF Power Amplifiers – High Power

Features of Mi-Wave RF Power Amplifiers Mi-Wave’s 955 Series microwave and millimeter wave high power amplifiers offer a wide variety of frequency ranges, bandwidths, gain and power outputs. Lost cost production designs to meet the demanding needs of communications are also now available. Please consult Mi-Wave for technical specifications and outline drawings. • High Gain • Full Bandwidths • High 1 db Comp. Points • Wide Variety of Frequency Ranges • 8 GHz to 140 GHz View

Millimeter Wave2020-08-02T00:06:05-04:00
