"J" - Millimeter Wave Products | Waveguide Products

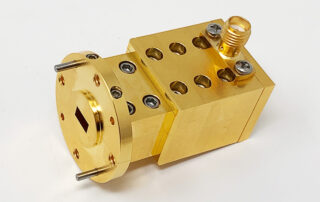

950B/383, Frequency 33 GHz to 50 GHz, Sensitivity 1200 mV/mW, WR-22, Q-Band

33 GHz to 50 GHz, Amplitude Detector 950B/383, Sensitivity 1200 mV/mW, WR-22, Q-Band Description: Mi-Wave’s 950 Series Q-Band Detectors convert incident RF energy into a DC voltage signal. The function of these detectors is similar to power sensors, with two exceptions. The 950 Series detectors perform measurements more quickly and have a greater dynamic range than that obtainable from comparable power sensors. Features • Full Waveguide Band • High Video

Millimeter Wave2025-10-03T13:53:17-04:00

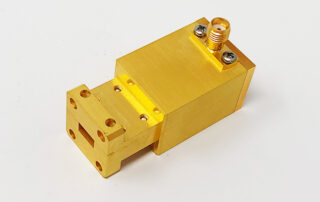

950A/599, Detector, Frequency 26.5 GHz to 40 GHz, Sensitivity 1500 mV/mW, WR-28, Ka-Band

26.5 GHz to 40 GHz, Amplitude Detector 950A/599, Sensitivity 1500 mV/mW, WR-28 Waveguide, Ka-Band Description: Mi-Wave’s 950 Series Detectors convert incident RF energy into a DC voltage signal. The function of these detectors is similar to power sensors, with two exceptions. The 950 Series detectors perform measurements more quickly and have a greater dynamic range than that obtainable from comparable power sensors. Features • Full Waveguide Band • High Video

Millimeter Wave2025-10-03T13:54:00-04:00

Amplitude Detectors

Amplitude Detectors Mi-Wave’s 950 Series Detectors convert incident RF energy into a DC voltage signal. The function of these detectors is similar to power sensors, with two exceptions. The 950 Series detectors perform measurements more quickly and have a greater dynamic range than that obtainable from comparable power sensors.Ideally suited for rapid power measurements, these finline detectors are designed for a variety of instrumentation setups such as scalar analyzer applications. For low signal level measurement, the detectors

Millimeter Wave2023-04-24T12:10:38-04:00

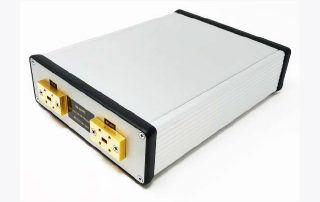

955A, 27-33GHz, 10Watt Power Amplifier, Small Signal Gain 40dB, Output Power (Psat) +41.5dBm

27 GHz to 34 GHz 5G Power Amplifier 955A 27-33GHz, 10Watts, Small Signal Gain 40dB, Output Power (Psat) +41.5dBm Description: Mi-Wave’s 955A, 27-33GHz, 10Watt Power Amplifier series microwave and millimeter wave power amplifier offers the specifications needed to power your 5G application needs. Please consult Mi-Wave for technical specifications and outline drawings. • Frequency 27-34GHz • Small Signal Gain 40dB typ • Output Power (Psat) +41.5dBm typ • Input Drive Level +5dBm typ

Millimeter Wave2020-09-23T14:26:21-04:00

922W-387, Harmonic Mixers with Diplexers, RF Frequency 75 GHz to 110 GHz, LO Frequency option 1 4 GHz 20 GHz, LO Power +12

75 GHz to 110 GHz, Harmonic Mixer w/Diplexer 922W-387, LO Frequency option 1 4 GHz 20 GHz, LO Power +12 Description: Mi-Wave’s 922 Series W-Band Harmonic Mixers include optional LO-IF frequency diplexer and are used to downconvert millimeter wave signals using a Schottky barrier mixer diode. Measurements can be made by mixing the harmonic of the LO with the desired RF signal and observing the resulting IF. Features • Includes

Millimeter Wave2021-09-21T18:04:51-04:00

922V-385, Harmonic Mixers with Diplexer, RF Frequency 50GHz to 75 GHz, LO Frequency Option 1 4 GHz 20 GHz, LO Power +12 dBm

50 GHz to 75 GHz, Harmonic Mixer w/Diplexer 922V-385, LO Frequency Option 1 4 GHz 20 GHz, LO Power +12 dBm Description: Mi-Wave’s 922 Series V-Band Harmonic Mixers include optional LO-IF frequency diplexer and are used to downconvert millimeter wave signals using a Schottky barrier mixer diode. Measurements can be made by mixing the harmonic of the LO with the desired RF signal and observing the resulting IF. Features •

Millimeter Wave2021-09-21T18:04:40-04:00

922U-383, Harmonic Mixers with Diplexer, RF Frequency 40 GHz 60 GHz, LO Power +12, Conversion Loss 20-30 dB

40 GHz to 60 GHz, Harmonic Mixer w/Diplexer 922U-383, LO Power +12, Conversion Loss 20-30 dB Description: Mi-Wave’s 922 Series U-Band Harmonic Mixers include optional LO-IF frequency diplexer and are used to downconvert millimeter wave signals using a Schottky barrier mixer diode. Measurements can be made by mixing the harmonic of the LO with the desired RF signal and observing the resulting IF. Features • Includes Optional LO-IF frequency diplexer

Millimeter Wave2021-09-21T18:04:13-04:00

922H Series H-Band Harmonic Mixer with Diplexer. RF Frequency 170GHz–260GHz and WR-4 Waveguide

170 GHz to 260 GHz, Harmonic Mixer w/Diplexer 922H Series WR-4 Waveguide Description: Mi-Wave’s 922 Series H-Band Harmonic Mixers include optional LO-IF frequency diplexer and are used to downconvert millimeter wave signals using a Schottky barrier mixer diode. Measurements can be made by mixing the harmonic of the LO with the desired RF signal and observing the resulting IF. Features • Includes Optional LO-IF frequency diplexer • Full Waveguide Band

Millimeter Wave2021-04-01T14:53:29-04:00

922G-387, Harmonic Mixer with Diplexer, RF Frequency 140 GHz 220 GHz, LO Frequency Option 1 4 GHz 20 GHz, LO Power +12 dBm

140 GHz to 220 GHz, Harmonic Mixer w/Diplexer 922G-387, LO Frequency Option 1 4 GHz 20 GHz, LO Power +12 dBm Description: Mi-Wave’s 922 Series G-Band Harmonic Mixers include optional LO-IF frequency diplexer and are used to downconvert millimeter wave signals using a Schottky barrier mixer diode. Measurements can be made by mixing the harmonic of the LO with the desired RF signal and observing the resulting IF. Features •

Millimeter Wave2021-09-21T18:06:10-04:00
