WR-12, Variable Waveguide Attenuators – Micrometer Driven

60 - 90 GHz, Micrometer Dial-Type Variable Waveguide Attenuators 523E/387, WR-12, Attenuation Range 0 to 30 dB, VSWR 1.15:1 Description: Mi-Wave’s 523 Series Micrometer-driven Calibrated Attenuators are compact precision attenuating devices available in standard waveguide sizes from 18.0 to 220 GHz.Each attenuator is calibrated at the frequency specified at the time of order. Features • High Resolution • Low Cost • Micrometer Readout • Differential Screw Drive • Anti-backlash Operation

Millimeter Wave2021-01-04T15:41:27-05:00

WR-15, Variable Waveguide Attenuators – Micrometer Driven

50 - 75 GHz, Micrometer Dial-Type Variable Waveguide Attenuators 523V/385, WR-15, Attenuation Range 0 to 30 dB, VSWR 1.15:1 Description: Mi-Wave’s 523 Series Micrometer-driven Calibrated Attenuators are compact precision attenuating devices available in standard waveguide sizes from 18.0 to 220 GHz.Each attenuator is calibrated at the frequency specified at the time of order. Features • High Resolution • Low Cost • Micrometer Readout • Differential Screw Drive • Anti-backlash Operation

Millimeter Wave2021-01-04T15:41:03-05:00

WR-19, Variable Waveguide Attenuators – Micrometer Driven

40 - 60 GHz, Micrometer Dial-Type Variable Waveguide Attenuators 523U/383, WR-19, Attenuation Range 0 to 30 dB, VSWR 1.15:1 Description: Mi-Wave’s 523 Series Micrometer-driven Calibrated Attenuators are compact precision attenuating devices available in standard waveguide sizes from 18.0 to 220 GHz.Each attenuator is calibrated at the frequency specified at the time of order. Features • High Resolution • Low Cost • Micrometer Readout • Differential Screw Drive • Anti-backlash Operation

Millimeter Wave2021-01-04T15:40:36-05:00

WR-22, Variable Waveguide Attenuators – Micrometer Driven

33 - 50 GHz, Micrometer Dial-Type Variable Waveguide Attenuators 523B/383, WR-22, Attenuation Range 0 to 30 dB, VSWR 1.15:1 Description: Mi-Wave’s 523 Series Micrometer-driven Calibrated Attenuators are compact precision attenuating devices available in standard waveguide sizes from 18.0 to 220 GHz.Each attenuator is calibrated at the frequency specified at the time of order. Features • High Resolution • Low Cost • Micrometer Readout • Differential Screw Drive • Anti-backlash Operation

Millimeter Wave2021-01-04T15:39:52-05:00

WR-28 Variable Waveguide Attenuators – Micrometer Driven

26.5 - 40 GHz, Micrometer Dial-Type Variable Waveguide Attenuators 523A/599, WR-28, Attenuation Range 0 to 30 dB, VSWR 1.2:1 Description: Mi-Wave’s 523 Series Micrometer-driven Calibrated Attenuators are compact precision attenuating devices available in standard waveguide sizes from 18.0 to 220 GHz.Each attenuator is calibrated at the frequency specified at the time of order. Features • High Resolution • Low Cost • Micrometer Readout • Differential Screw Drive • Anti-backlash Operation

Millimeter Wave2021-01-04T15:39:19-05:00

WR-42 Variable Waveguide Attenuators – Micrometer Driven

18 - 26.5 GHz, Micrometer Dial-Type Variable Waveguide Attenuators 523K/595, WR-42, Attenuation Range 0 to 30 dB, VSWR 1.2:1 Description: Mi-Wave’s 523 Series Micrometer-driven Calibrated Attenuators are compact precision attenuating devices available in standard waveguide sizes from 18.0 to 220 GHz.Each attenuator is calibrated at the frequency specified at the time of order. Features • High Resolution • Low Cost • Micrometer Readout • Differential Screw Drive • Anti-backlash Operation

Millimeter Wave2021-01-04T15:38:52-05:00

Micrometer Type Variable Waveguide Attenuators

Attenuators > Micrometer Type Variable Waveguide Attenuators Micrometer Type Variable Waveguide Attenuators (Series 523) Mi-Wave’s 523 Series Micrometer-driven Calibrated Attenuators are compact precision attenuating devices available in standard waveguide sizes from 18 to 220GHz. 523K/595 18 - 26.5 GHz, K-Band, WR-42 Average Power Handling 0.3 Watts View Product 523A/599 26.5 - 40 GHz, Ka-Band, WR-28 Average Power Handling 0.3 Watts View Product

Millimeter Wave2024-01-31T15:16:04-05:00

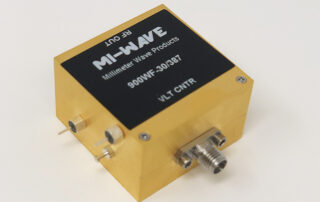

900W Pin Diode Voltage Variable Attenuators

75 GHz – 110 GHz, Voltage Controlled Attenuator 900WF-30/387, WR-10, Power Handling 20 dBm, Attenuation Range 30 dB Description: Mi-Wave’s 900 Series Pin Diode or MMIC Attenuator is a reflective attenuator that combines low loss, high isolation performance in a compact package. Attenuation options are available for the 900 Series attenuation with isolation versions up to 60 dB. These attenuators are supplied without drivers, control is typically 0 to +10 Vdc. PIN attenuators

Millimeter Wave2025-09-29T15:36:47-04:00

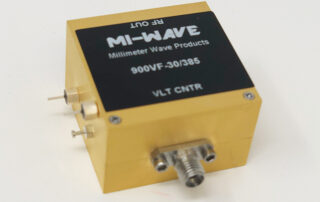

900V Pin Diode Voltage Variable Attenuators

50 GHz – 75 GHz, Voltage Controlled Attenuator 900VF-30/385, WR-15, Power Handling 20 dBm, Attenuation Range 30 dB Description: Mi-Wave’s 900 Series Pin Diode or MMIC Attenuator is a reflective attenuator that combines low loss, high isolation performance in a compact package. Attenuation options are available for the 900 Series attenuation with isolation versions up to 60 dB. These attenuators are supplied without drivers, control is typically 0 to +10 Vdc. PIN attenuators

Millimeter Wave2025-09-29T14:52:47-04:00
