Product Description

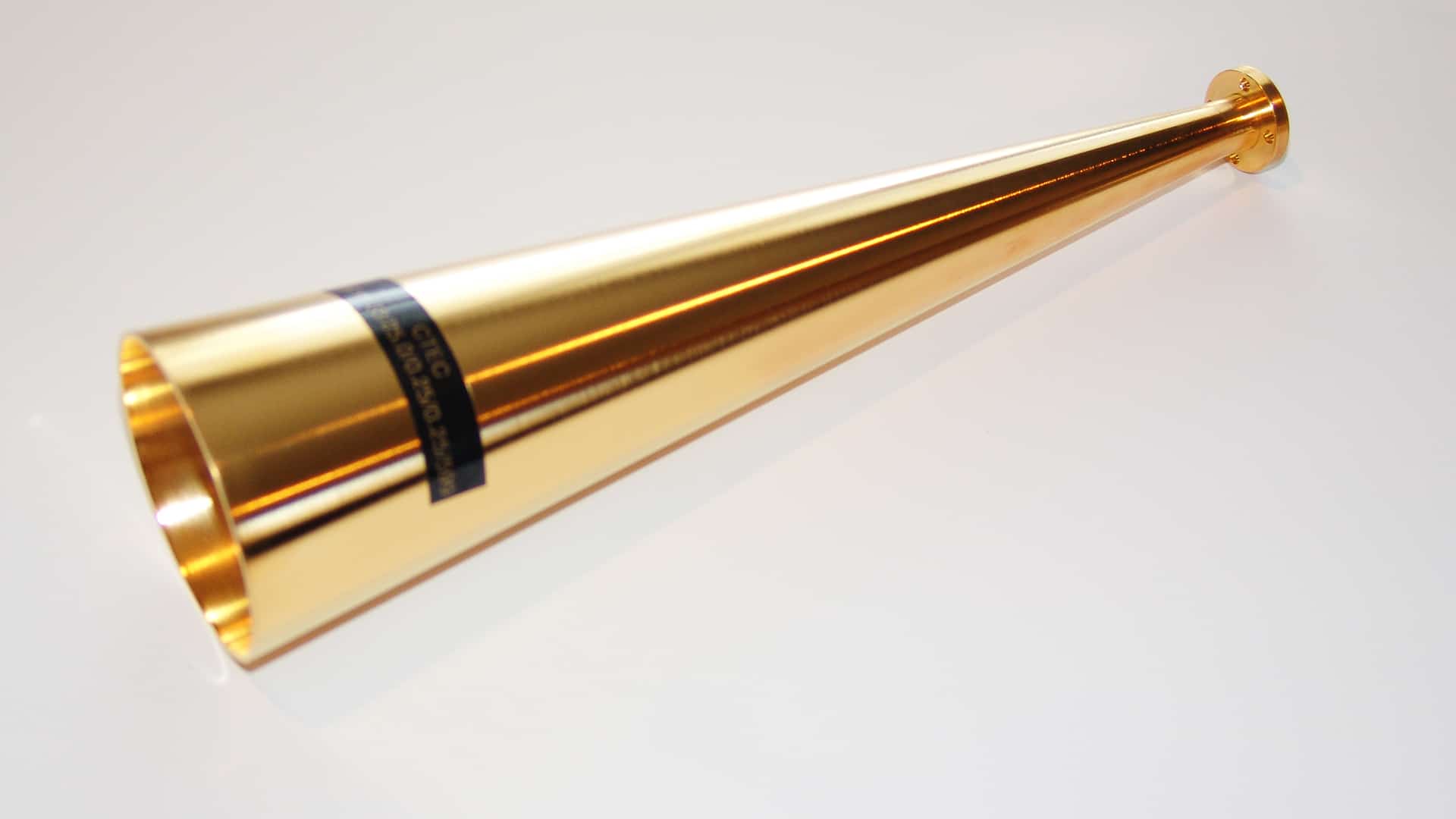

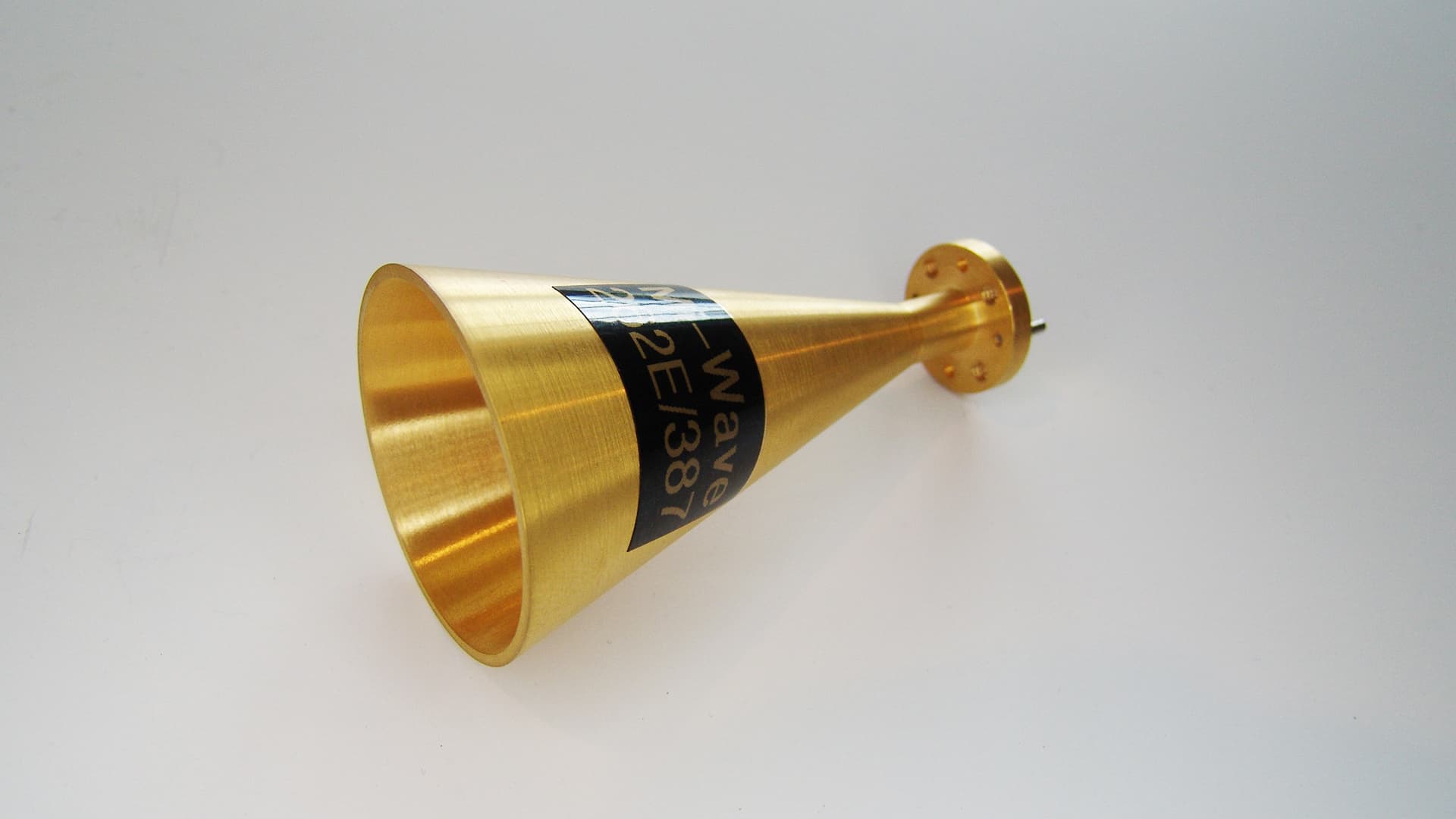

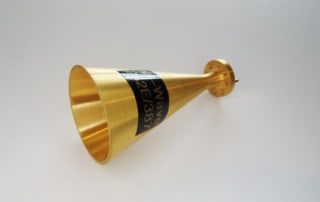

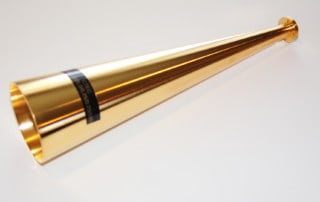

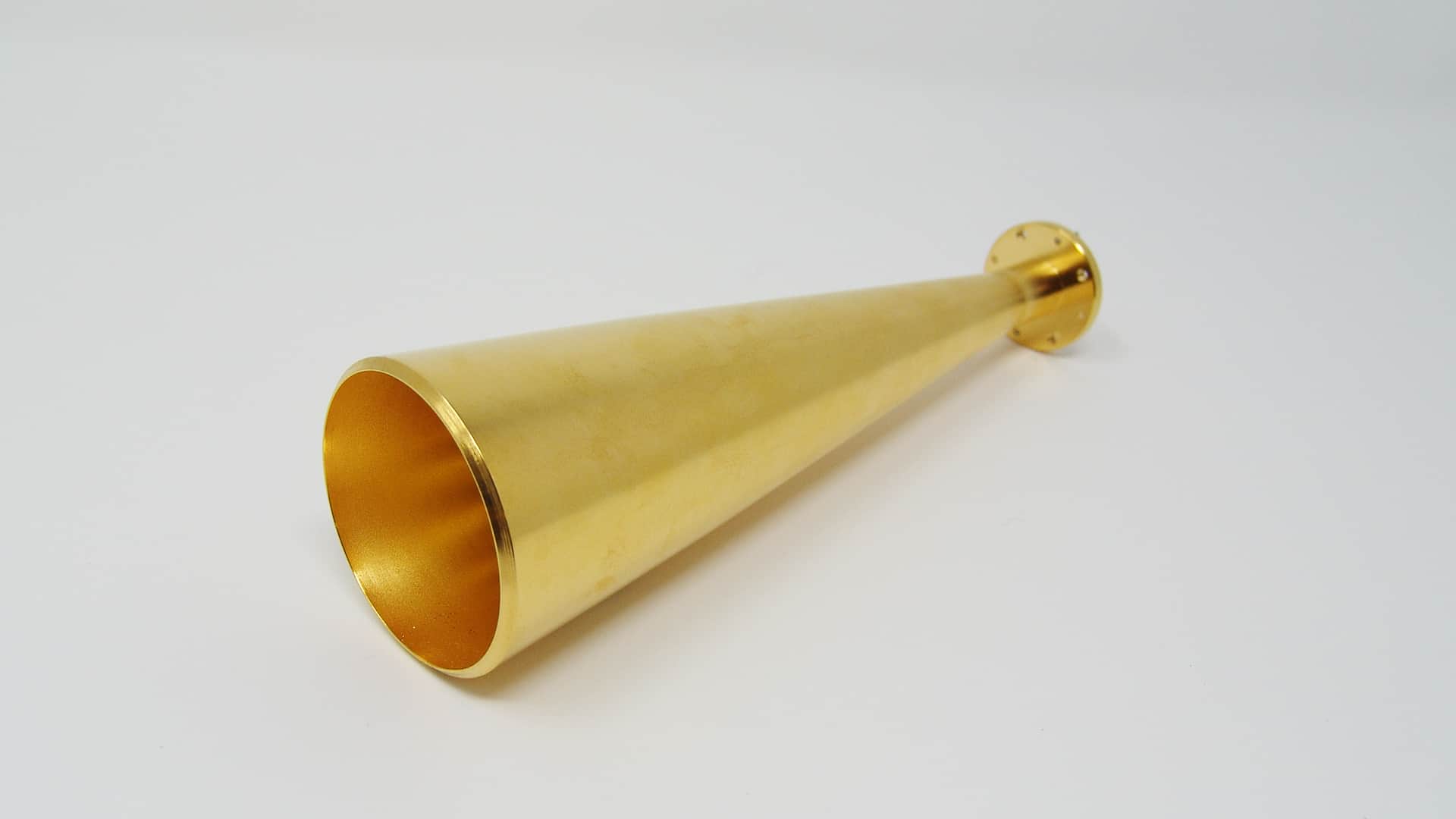

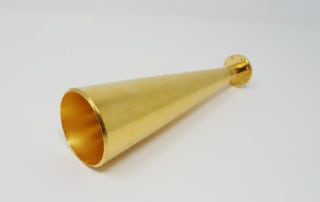

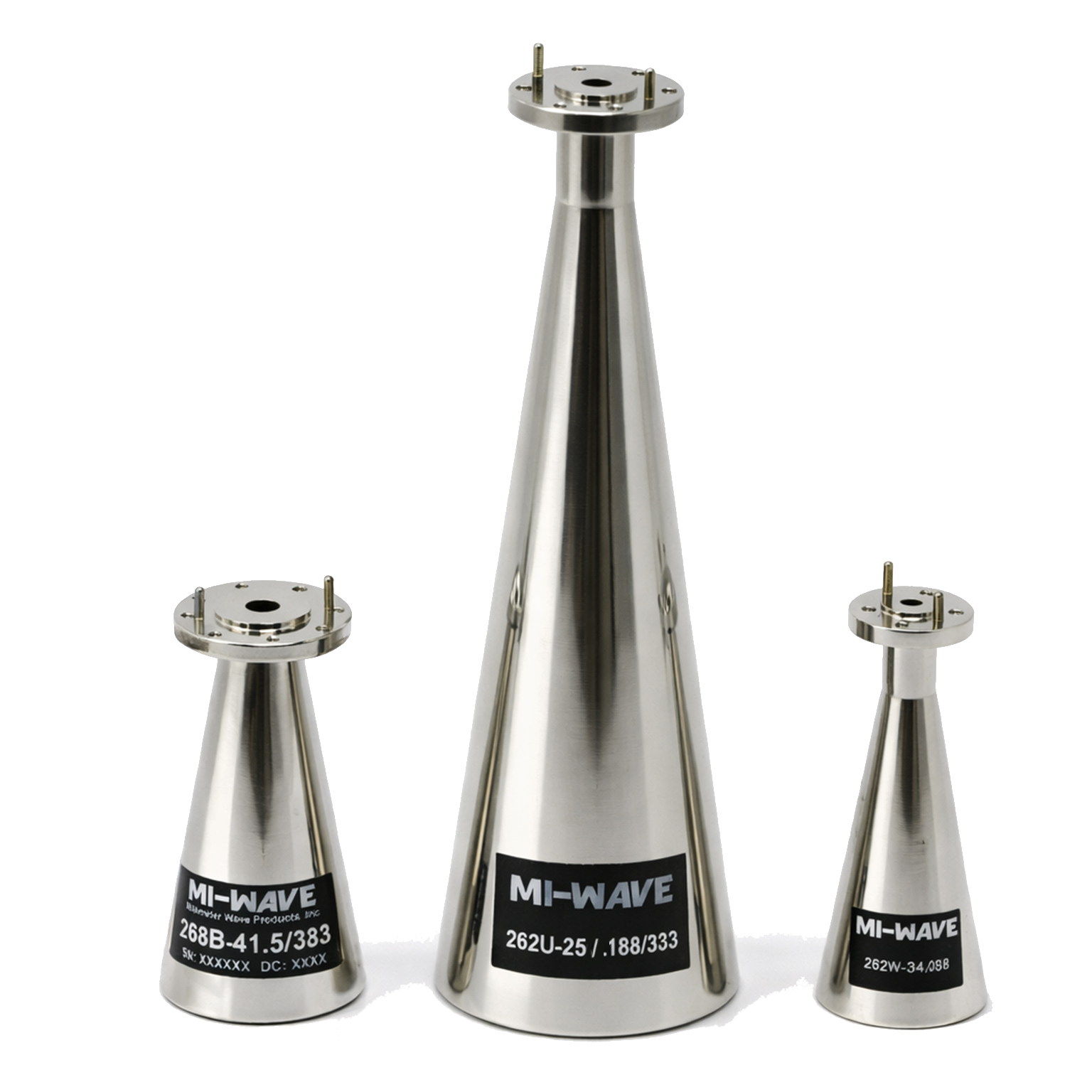

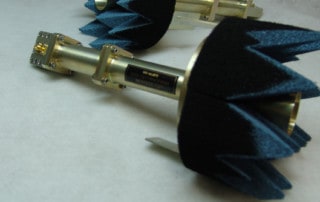

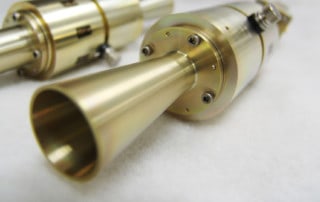

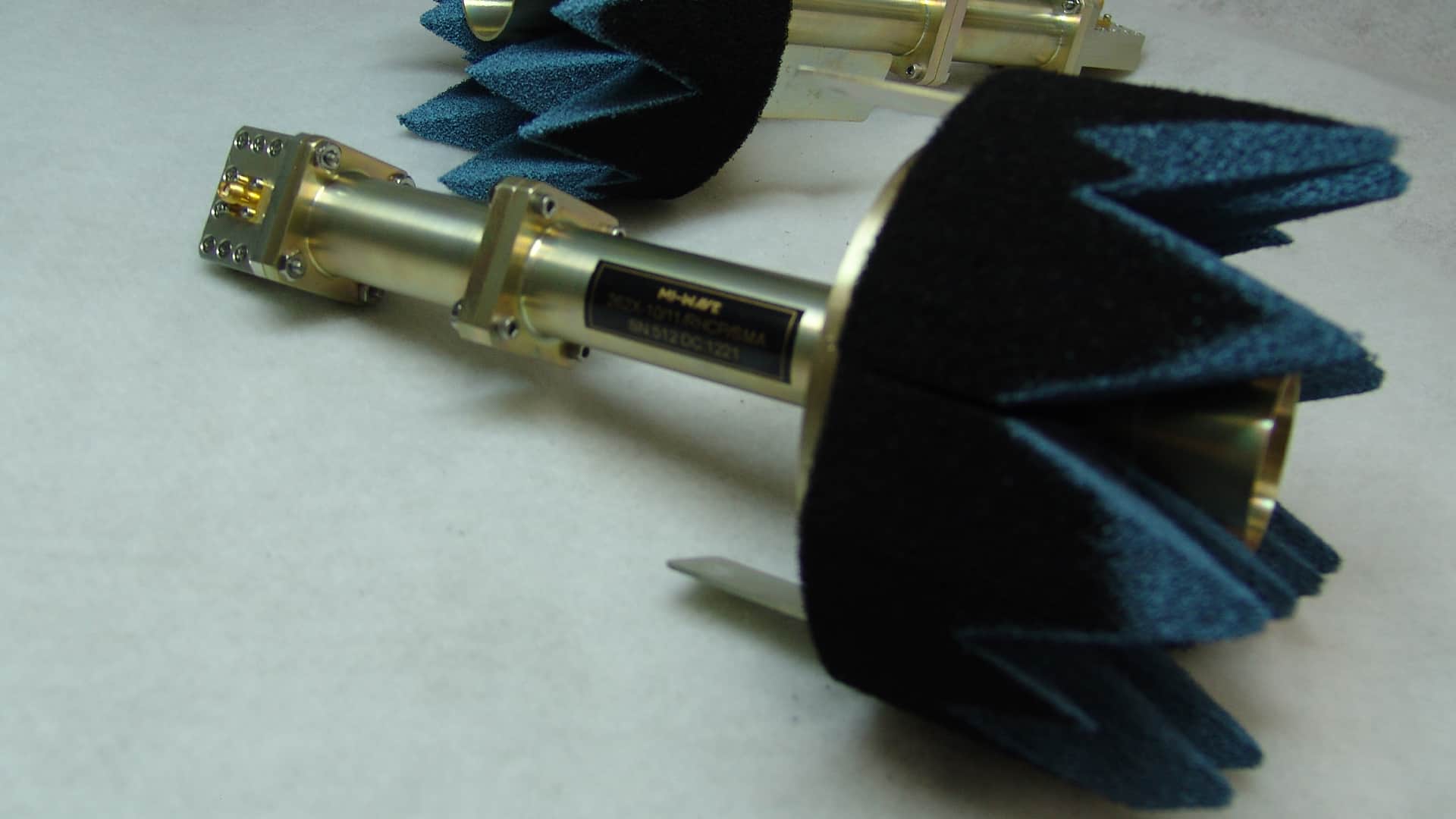

Mi-Wave’s Series 262 Conical Horn Antennas are precision-engineered, wideband antennas designed to provide smooth radiation patterns, reliable directivity, and broadband coverage across RF and microwave frequency ranges. Conical horn antennas are prized for their broadband impedance match, consistent beam shape, and low insertion loss, making them versatile solutions for many high-frequency applications.
The Series 262 design uses a circular aperture horn with a conical flare to transition energy from a waveguide into free space efficiently. This geometry produces stable gain, symmetrical radiation characteristics, and low VSWR across a wide operating band, reducing the need for multiple narrowband antennas.
Series 262 conical horn antennas are suitable for communication links, radar systems, test and measurement environments, and research applications where performance consistency and pattern predictability are required.
Note: The conical horn antennas shown on this website represent only a portion of Mi-Wave’s manufacturing capabilities. We design and build a wide range of additional conical horn antenna configurations beyond those listed, including custom frequency ranges, waveguide interfaces, polarization options, and mechanical form factors. Consult with Mi-Wave to discuss your specific application requirements.
| Waveguide Band | Model No. | Gain (dBi) | Circular Waveguide Internal Diameter (.XXX in Model No.) in Inches | Frequency Range (GHz) | 3 dB Beamwidth E-Plane (Degrees °) | 3dB Beamwidth (degree) H-plane | Polarization | VSWR | Antenna Port | Material | LINK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| X-band | 262X-10/.XXX/39 | 10 | .XXX=1.094 .XXX=.938 .XXX= .797 | 8.2-9.97 8.5-11.6 9.97-12.4 | 59.42 | 57.7 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-39/U Flange | Aluminum/Brass | |
| X-band | 262X-15/.XXX/39 | 15 | .XXX=1.094 .XXX=.938 .XXX= .797 | 8.2-9.97 8.5-11.6 9.97-12.4 | 15.28 | 18.54 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-39/U Flange | Aluminum/Brass | |
| Ku-Band | 262KU-10/.XXX/419 | 10 | XXX=.660 XXX=.550 | 12.4-14.6 14.6-18.0 | 47.67 | 50.04 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-419/U Flange | Aluminum/Brass | |
| Ku-Band | 262Ku-15/.XXX/419 | 15 | XXX=.660 XXX=.550 | 12.4-14.6 14.6-18.0 | 28.25 | 32.96 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-419/U Flange | Aluminum/Brass | |
| K-Band | 262K-10/.XXX/595 | 10 | XXX=.470 XXX .396 XXX=.328 | 18.0-20.5 20.4-24.5 24.5-26.5 | 45.72 | 48.54 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-595/U Flange or UG-425/U Flange | Aluminum/Brass | |
| K-Band | 262K-15/.XXX/595 | 15 | XXX=.470 XXX .396 XXX=.328 | 18.0-20.5 20.4-24.5 24.5-26.5 | 26.5 | 31.13 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-595/U Flange or UG-425/U Flange | Aluminum/Brass | |
| K-Band | 262K-20/.XXX/595 | 20 | XXX=.470 XXX .396 XXX=.328 | 18.0-20.5 20.4-24.5 24.5-26.5 | 14.48 | 17.61 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-595/U Flange or UG-425/U Flange | Aluminum/Brass | |
| Ka-Band | 262A-10/.XXX/599 | 10 | XXX=.328 XXX=.281 XXX=.250 XXX= .219 | 26.5-28.5 28.5-33.0 33.0 -38.5 38.5-40.0 | 47.64 | 49.03 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-599/U Flange or UG-381/U Flange | Aluminum/Brass | |
| Ka-Band | 262A-15/.XXX/599 | 15 | XXX=.328 XXX=.281 XXX=.250 XXX= .219 | 26.5-28.5 28.5-33.0 33.0 -38.5 38.5-40.0 | 23.44 | 27.94 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-599/U Flange or UG-381/U | Aluminum/Brass | |
| Ka-Band | 262A-20/.XXX/599 | 20 | XXX=.328 XXX=.281 XXX=.250 XXX= .219 | 26.5-28.5 28.5-33.0 33.0 -38.5 38.5-40.0 | 15.9 | 19.39 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-599/U Flange or UG-381/U | Aluminum/Brass | |
| Ka-Band | 262A-25/.XXX/599 | 25 | XXX=.328 XXX=.281 XXX=.250 XXX= .219 | 26.5-28.5 28.5-33.0 33.0 -38.5 38.5-40.0 | 8.62 | 10.55 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-599/U Flange or UG-381/U | Aluminum/Brass | |
| B-Band | 262B-10/.XXX/383 | 10 | XXX=.250 XXX=.219 XXX=.188 | 33.0-38.5 38.5-43.0 43.0-50.0 | 49.92 | 51.66 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-383/U Flange | Aluminum/Brass | |
| B-Band | 262B-15/.XXX/383 | 15 | XXX=.250 XXX=.219 XXX=.188 | 33.0-38.5 38.5-43.0 43.0-50.0 | 25.27 | 29.88 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-383/U Flange | Aluminum/Brass | |
| B-Band | 263B-20/.XXX/383 | 20 | XXX=.250 XXX=.219 XXX=.188 | 33.0-38.5 38.5-43.0 43.0-50.0 | 14.36 | 17.56 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-383/U Flange | Aluminum/Brass | |
| B-Band | 262B-25/.XXX/383 | 25 | XXX=.250 XXX=.219 XXX=.188 | 33.0-38.5 38.5-43.0 43.0-50.0 | 8.23 | 9.96 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-383/U Flange | Aluminum/Brass | |
| U-Band | 262U-10/.XXX/383 | 10 | XXX=.219 XXX=.188 XXX=.165 XXX=.141 | 38.5-43.0 43.0-50.0 50.0-58.0 58.0-60.0 | 54.64 | 54.84 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-383/U-M Flange | Aluminum/Brass | |
| U-Band | 262U-15/.XXX/383 | 15 | XXX=.219 XXX=.188 XXX=.165 XXX=.141 | 38.5-43.0 43.0-50.0 50.0-58.0 58.0-60.0 | 29.53 | 34.39 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-383/U-M Flange | Aluminum/Brass | |
| U-Band | 262U-20/.XXX/383 | 20 | XXX=.219 XXX=.188 XXX=.165 XXX=.141 | 38.5-43.0 43.0-50.0 50.0-58.0 58.0-60.0 | 12.34 | 15.17 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-383/U-M Flange | Aluminum/Brass | |
| U-Band | 262U-25/.XXX/383 | 25 | XXX=.219 XXX=.188 XXX=.165 XXX=.141 | 38.5-43.0 43.0-50.0 50.0-58.0 58.0-60.0 | 8.78 | 10.76 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-383/U-M Flange | Aluminum/Brass | |
| V-Band | 262V-10/.XXX/385 | 10 | XXX=.165 XXX=.141 XXX=.125 | 50.0-58.0 58.0-68.0 68.0-75.0 | 55.99 | 55.68 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-385/U Flange | Aluminum/Brass | |
| V-Band | 262V-15/.XXX/385 | 15 | XXX=.165 XXX=.141 XXX=.125 | 50.0-58.0 58.0-68.0 68.0-75.0 | 29.69 | 34.56 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-385/U Flange | Aluminum/Brass | |
| V-Band | 262V-20/.XXX/385 | 20 | XXX=.165 XXX=.141 XXX=.125 | 50.0-58.0 58.0-68.0 68.0-75.0 | 15.22 | 18.64 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-385/U Flange | Aluminum/Brass | |
| V-Band | 262V-25/.XXX/385 | 25 | XXX=.165 XXX=.141 XXX=.125 | 50.0-58.0 58.0-68.0 68.0-75.0 | 7.68 | 9.32 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-385/U Flange | Aluminum/Brass | |
| E-Band | 262E-10/.XXX/387 | 10 | XXX=.141 XXX=.125 XXX=.110 XXX=.094 | 60.0-68.0 68.0-77.0 77.0-87.0 87.0-90.0 | 51.39 | 52.7 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U Flange | Aluminum/Brass | |
| E-Band | 262E-15/.XXX/387 | 15 | XXX=.141 XXX=.125 XXX=.110 XXX=.094 | 60.0-68.0 68.0-77.0 77.0-87.0 87.0-90.0 | 28.39 | 33.22 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U Flange | Aluminum/Brass | |
| E-Band | 262E-20/.XXX/387 | 20 | XXX=.141 XXX=.125 XXX=.110 XXX=.094 | 60.0-68.0 68.0-77.0 77.0-87.0 87.0-90.0 | 15.59 | 18.97 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U Flange | Aluminum/Brass | |
| E-Band | 262E-25/.XXX/387 | 25 | XXX=.141 XXX=.125 XXX=.110 XXX=.094 | 60.0-68.0 68.0-77.0 77.0-87.0 87.0-90.0 | 8 | 9.74 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U Flange | Aluminum/Brass | |
| W-Band | 262W-10/.XXX/387 | 10 | XXX=.125 XXX=.110 XXX=.094 XXX=.082 | 75.0-77.0 77.0-87.0 87.0-100.0 100.0-110.0 | 60.48 | 58.32 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| W-Band | 262W-15/.XXX/387 | 15 | XXX=.125 XXX=.110 XXX=.094 XXX=.082 | 75.0-77.0 77.0-87.0 87.0-100.0 100.0-110.0 | 29.86 | 34.73 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| W-Band | 262W-20/.XXX/387 | 20 | XXX=.125 XXX=.110 XXX=.094 XXX=.082 | 75.0-77.0 77.0-87.0 87.0-100.0 100.0-110.0 | 16.33 | 19.96 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| W-Band | 262W-25/.XXX/387 | 25 | XXX=.125 XXX=.110 XXX=.094 XXX=.082 | 75.0-77.0 77.0-87.0 87.0-100.0 100.0-110.0 | 9.32 | 11.37 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| F-Band | 262F-10/.XXX/387 | 10 | XXX=.094 XXX=.082 XXX=.075 XXX=.067 | 87.0-100.0 100.0-112.0 112.0-125.0 125.0-140.0 | 55.75 | 55.54 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| F-Band | 262F-15/.XXX/387 | 15 | XXX=.094 XXX=.082 XXX=.075 XXX=.067 | 87.0-100.0 100.0-112.0 112.0-125.0 125.0-140.0 | 30.81 | 35.41 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| F-Band | 262F-20/.XXX/387 | 20 | XXX=.094 XXX=.082 XXX=.075 XXX=.067 | 87.0-100.0 100.0-112.0 112.0-125.0 125.0-140.0 | 14.54 | 17.87 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| F-Band | 262F-25/.XXX/387 | 25 | XXX=.094 XXX=.082 XXX=.075 XXX=.067 | 87.0-100.0 100.0-112.0 112.0-125.0 125.0-140.0 | 9.25 | 11.48 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| D-Band | 262D-10/.XXX/387 | 10 | XXX=.082 XXX=.075 XXX=.067 XXX=.059 | 100.0-112.0 112.0-125.0 125.0-140.0 140.0-170.0 | 55.75 | 55.54 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| D-Band | 262D-15/.XXX/387 | 15 | XXX=.082 XXX=.075 XXX=.067 XXX=.059 | 100.0-112.0 112.0-125.0 125.0-140.0 140.0-170.0 | 30.81 | 35.41 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| D-Band | 262D-20/.XXX/387 | 20 | XXX=.082 XXX=.075 XXX=.067 XXX=.059 | 100.0-112.0 112.0-125.0 125.0-140.0 140.0-170.0 | 16.29 | 19.9 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| D-Band | 262D-25/.XXX/387 | 25 | XXX=.082 XXX=.075 XXX=.067 XXX=.059 | 100.0-112.0 112.0-125.0 125.0-140.0 140.0-170.0 | 9.25 | 11.48 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| G-Band | 262G-10/.XXX/387 | 10 | XXX=.059 | 140.0-170.0 | 53.09 | 53.85 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| G-Band | 262G-15/.XXX/387 | 15 | XXX=.059 | 140.0-170.0 | 29.71 | 34.61 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| G-Band | 262G-20/.XXX/387 | 20 | XXX=.059 | 140.0-170.0 | 16.57 | 20.26 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| G-Band | 262G-25/.XXX/387 | 25 | XXX=.059 | 140.0-170.0 | 8.3 | 10.17 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| H-Band | 262H-25/.XXX/387 | 25 | XXX=.049 | 170.0-325.0 | 8.31 | 10.2 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass | |
| J-Band | 262J-25/.XXX/387 | 25 | XXX=.049 | 170.0-325.0 | 9.2 | 11.42 | Circular Polarized | 1.3:1 | Circular Waveguide with UG-387/U-M Flange | Aluminum/Brass |
Conical Horn Antennas
Mi-Wave designs and manufactures high-performance conical horn antennas engineered for reliable operation across RF, microwave, and millimeter-wave frequency ranges. With decades of experience in high-frequency RF hardware, Mi-Wave delivers conical horn antennas built to meet demanding electrical performance, mechanical stability, and repeatability requirements.
Conical horn waveguide antennas are widely used due to their broadband impedance match, strong directivity, low insertion loss, and stable radiation characteristics across wide frequency ranges. Mi-Wave conical horn antennas are designed to maintain consistent gain and predictable beam shape across the operating band, making them well suited for communications, radar, and test and measurement applications.
Conical horn antennas are part of Mi-Wave’s broader portfolio of RF products and components supplied to customers worldwide, supporting both laboratory-based testing and field-deployed systems.
Features
-
Low VSWR across the operating frequency band, ensuring efficient power transfer, minimal signal reflection, and improved overall system performance
-
Wide bandwidth capability, allowing a single conical horn antenna to support multiple frequencies without retuning or replacement
-
Smooth, well-controlled beamwidths, providing reliable directivity, consistent coverage, and reduced susceptibility to off-axis interference
-
Polarization-insensitive performance, enabling flexible system integration and stable operation across varying polarization conditions
-
High power handling capability, suitable for demanding transmit and receive applications
-
Low insertion loss and stable electrical characteristics, supporting accurate measurements and reliable long-term operation
-
Precision mechanical construction, ensuring repeatable performance in both laboratory and field environments
-
Compatibility with standard waveguide interfaces, allowing easy integration into existing RF, microwave, and millimeter-wave systems
Applications
-
Radar and Telemetry Systems
Used in radar, tracking, and telemetry applications where consistent beam shape, stable gain, and reliable signal transmission are required. -
Point-to-Point Communication Systems
Ideal for line-of-sight RF, microwave, and millimeter-wave communication links that require strong directivity, high link margins, and minimal interference. -
Test and Measurement Environments
Commonly used for antenna characterization, gain measurements, system calibration, and performance validation in laboratory and field test setups. -
RF, Microwave, and Millimeter-Wave Communication Links
Supports broadband signal transmission and reception across a wide range of operating frequencies. -
Research and Development Platforms
Suitable for R&D applications requiring broadband performance, predictable radiation patterns, and repeatable results.
Why Choose Mi-Wave
Mi-Wave is a trusted manufacturer of RF, microwave, and millimeter-wave antennas and components, supporting commercial, government, and research systems worldwide. Our conical horn antennas are engineered to deliver wideband performance, stable radiation patterns, and reliable electrical characteristics in demanding high-frequency applications.
High-Frequency Engineering Expertise
With decades of experience in microwave and millimeter-wave design, Mi-Wave develops conical horn antennas optimized for low VSWR, controlled beamwidth, and consistent gain across broad operating bandwidths.
Precision Manufacturing and Quality Control
Each antenna is manufactured using precision machining and assembly processes to ensure repeatable electrical performance, mechanical stability, and long-term reliability.
Broad Frequency and Application Support
Mi-Wave supports conical horn antennas across a wide range of RF and microwave frequency bands, making them suitable for communications, radar, telemetry, and test environments.
Custom Antenna Solutions
In addition to standard offerings, Mi-Wave provides custom conical horn antenna designs tailored to specific frequency ranges, bandwidths, polarization requirements, waveguide interfaces, and mechanical constraints. Our sales engineering team works closely with customers to ensure seamless system integration.
What Conical Horn Antennas Are and What They Do
Conical horn antennas are directional broadband antennas that use a circular, cone-shaped flare to efficiently transition electromagnetic energy from a rectangular or circular waveguide into free space. The rotationally symmetric geometry of a conical horn produces uniform radiation patterns, stable impedance matching, and predictable beam characteristics across a wide range of frequencies.
Conical horn antennas are commonly used in RF, microwave, and millimeter-wave systems where wide bandwidth, consistent gain, and repeatable radiation patterns are required. Their simple yet effective design makes them a reliable solution for both laboratory and field-deployed applications.
How Conical Horn Antennas Work
RF energy is launched into the antenna through a standard WR waveguide interface and propagates toward the horn aperture. As the signal travels through the gradually expanding conical flare, the electromagnetic fields are smoothly transformed from a guided mode into free-space radiation.
This controlled transition provides several performance benefits:
-
Low VSWR and reduced signal reflections
-
Stable beamwidth and consistent gain
-
Smooth, symmetrical radiation patterns
-
Minimal pattern distortion across wide bandwidths
Because of their circular symmetry, conical horn antennas generate uniform E-plane and H-plane radiation patterns, which is especially important in antenna measurement, calibration, and reference applications.
Frequency Coverage and WR Waveguide Interfaces
Mi-Wave conical horn antennas (Series 262) support operation across a wide range of RF, microwave, and millimeter-wave frequencies, depending on configuration. Typical coverage spans from 8.2 GHz through 110 GHz, with custom options available beyond standard bands.
Common supported WR waveguide interfaces include:
-
WR-90 | 8.2–12.4 GHz | X-Band
-
WR-62 | 12.4–18.0 GHz | Ku-Band
-
WR-42 | 18.0–26.5 GHz | K-Band
-
WR-28 | 26.5–40.0 GHz | Ka-Band
-
WR-22 | 33.0–50.0 GHz | Q-Band
-
WR-15 | 50.0–75.0 GHz | V-Band
-
WR-10 | 75.0–110.0 GHz | W-Band
This broad compatibility allows conical horn antennas to integrate easily into high-frequency RF chains, including transmitters, receivers, power amplifiers, LNAs, frequency converters, and test instrumentation.
What Conical Horn Antennas Do in RF and Microwave Systems
Conical horn antennas are used to transmit and receive RF energy with controlled directivity and broadband performance. They provide a balance between wide frequency coverage and directional gain, making them well suited for:
-
Point-to-point RF and microwave communication links
-
Radar and telemetry systems
-
Antenna gain, pattern, and polarization measurements
-
System calibration and alignment
-
RF, microwave, and millimeter-wave test environments
Their predictable radiation characteristics make them ideal as reference antennas and measurement standards, as well as reliable components in operational communication and sensing systems.
Why Engineers Choose Conical Horn Antennas
Engineers select conical horn antennas because they offer:
-
Broadband frequency operation across multiple RF and microwave bands
-
Low loss and high power handling
-
Symmetrical radiation patterns for repeatable measurements
-
Stable gain and beamwidth across the operating band
-
Simple, robust mechanical construction
-
Compatibility with standard WR waveguide interfaces
These characteristics make conical horn antennas a dependable choice for communications, radar, telemetry, test and measurement, and research applications across RF, microwave, and millimeter-wave frequency ranges.
