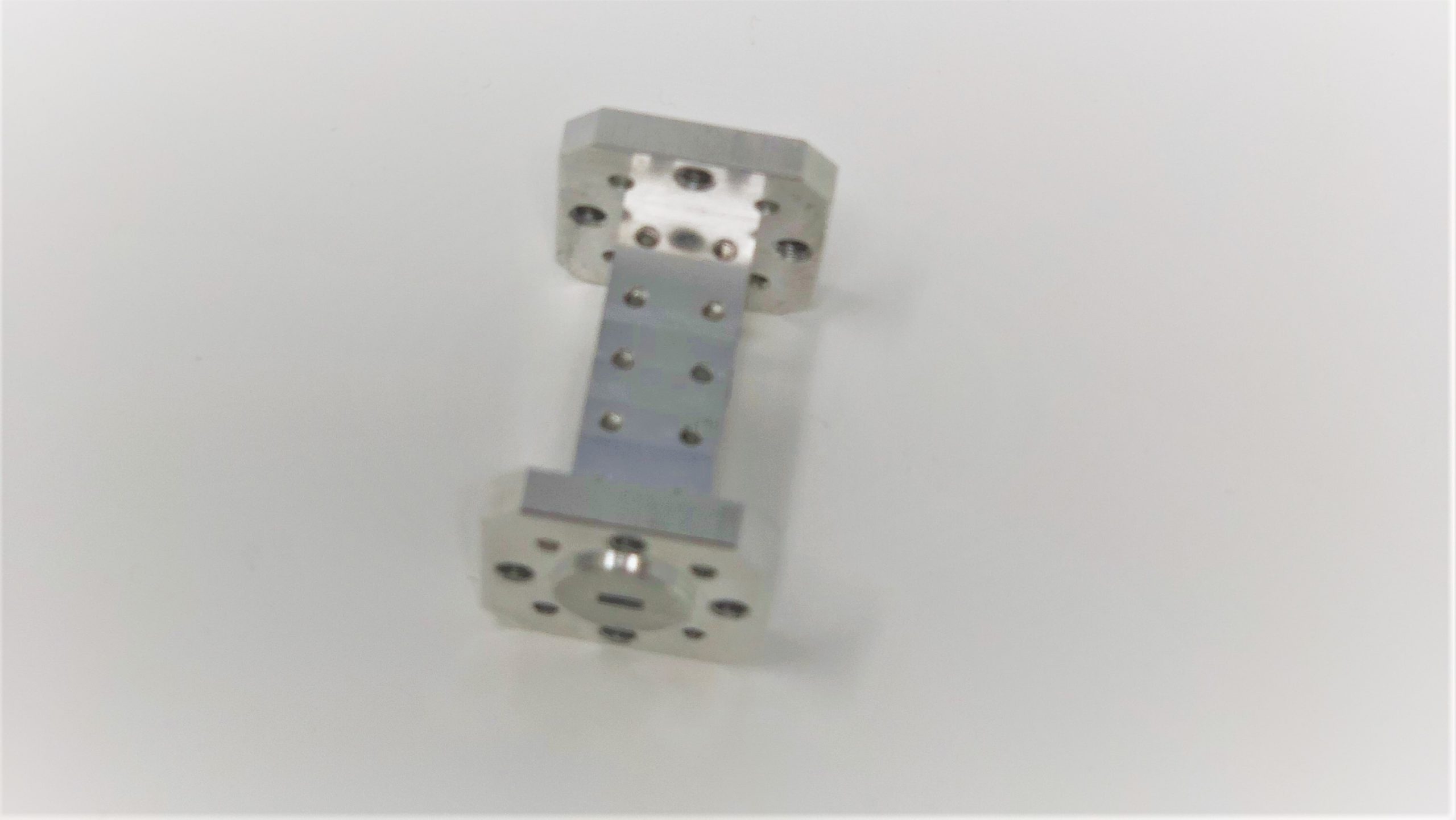

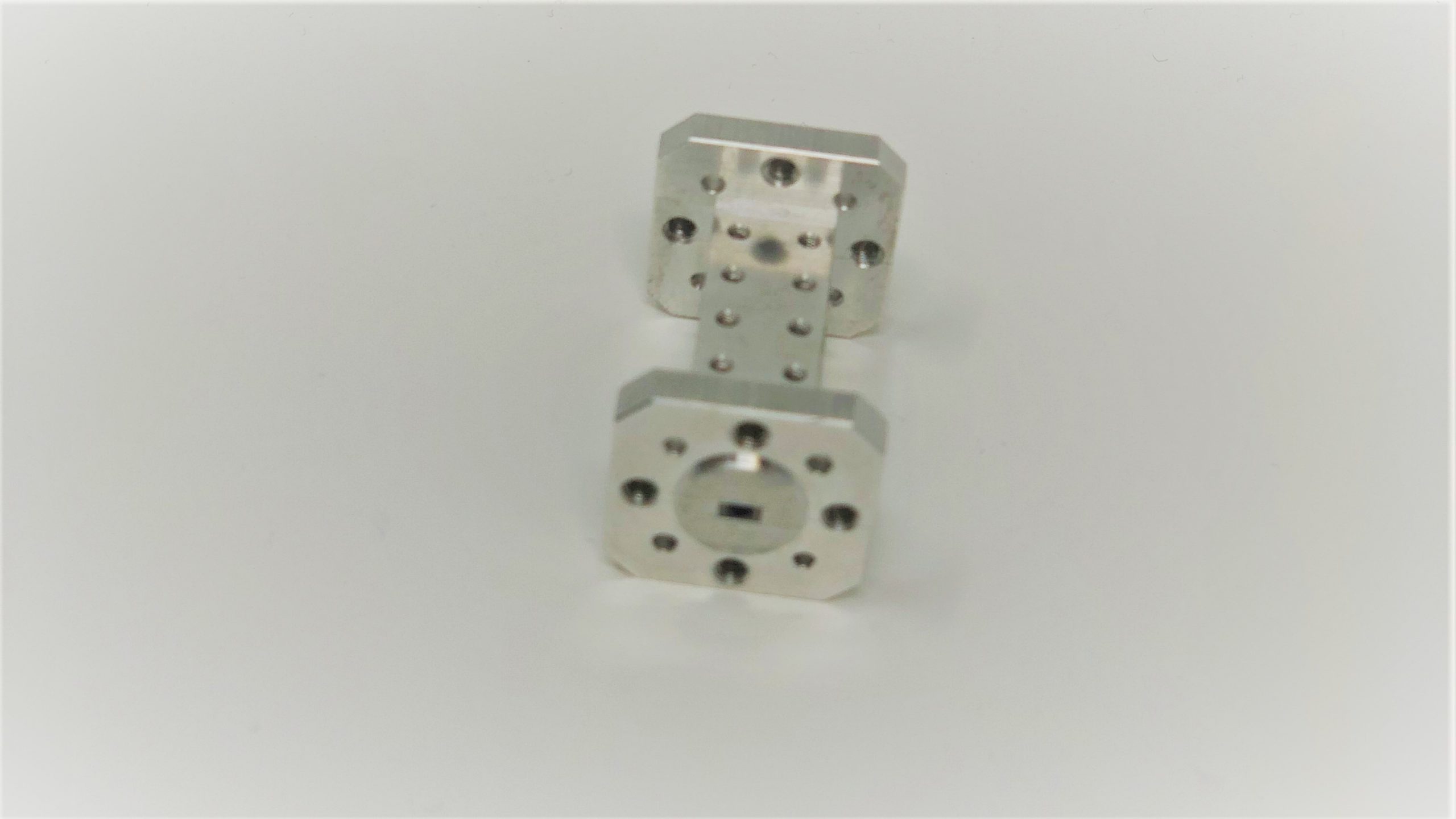

V-Band Bandpass Filters

Mi-Wave’s 460 Series Bandpass Filters are used for narrow and wideband applications. Pass bands are typically from 1% to 10%. This design is well suited for frequency diplexers used in communication systems or any application where narrow bandwidths are required. Insertion losses are typically in the 0.8 dB to 2.0 dB area depending upon rejection levels. The 460 Series Bandpass filter can be designed from 8 to 140GHz. Please consult Mi-Wave for further dimensions and specific technical data.

V-Band, 54.5GHz – 56.5 GHz

460V-54.5/56.5/385, Passband Insertion Loss 1.5, Rejection 50 dBc

V-Band, 57GHz – 71 GHz

460V-64/14/385, Passband Insertion Loss 1.0, Rejection 50 dBc

V-Band, 55GHz – 75 GHz

460V-65/20/385, Passband Insertion Loss 1.0, Rejection 60 dBc
