W-Band | E-Plane Broadband Directional Couplers | 75GHz – 110GHz

W-Band E-Plane Directional Couplers Mi-Wave’s 560 Series Broadband Directional Couplers are broad wall E-plane multi-hole energy-couping devices. The 560 Series couplers are designed in 8 waveguide sizes from 12.4 to 110 GHz. Note: Nominal couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements 560W-10/387, Coupling 10dB, Directivity 40 dB W-Band, 75 - 110 GHz, BroadBand Directional E-Plane Couplers View Product 560W-20/387,

Brian Lapuste2023-04-07T19:12:29-04:00

V-Band | E-Plane Broadband Directional Couplers | 50GHz – 75GHz

V-Band E-Plane Directional Couplers Mi-Wave’s 560 Series Broadband Directional Couplers are broad wall E-plane multi-hole energy-couping devices. The 560 Series couplers are designed in 8 waveguide sizes from 12.4 to 110 GHz. Note: Nominal couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements 560V-3/385, Coupling 3 dB, Insertion Loss, 1.0 dB V-Band, 50 - 75 GHz, BroadBand Directional E-Plane Couplers View Product

Brian Lapuste2023-03-29T15:23:34-04:00

U-Band | E-Plane Broadband Directional Couplers | 40GHz – 60GHz

U-Band E-Plane Directional Couplers Mi-Wave’s 560 Series Broadband Directional Couplers are broad wall E-plane multi-hole energy-couping devices. The 560 Series couplers are designed in 8 waveguide sizes from 12.4 to 110 GHz. Nominal couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements. Note: Nominal couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements

Brian Lapuste2023-04-07T19:18:46-04:00

K-Band | E-Plane Directional Couplers | 18GHz – 26.5GHz

K-Band E-Plane Directional Couplers Mi-Wave’s 560 Series Broadband Directional Couplers are broad wall E-plane multi-hole energy-couping devices. The 560 Series couplers are designed in 8 waveguide sizes from 12.4 to 110 GHz. Note: Nominal couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements 560K-10/595, Coupling 10dB, Insertion Loss 0.1 dB K-Band, 18 - 26.5 GHz, BroadBand Directional E-Plane Couplers View Product

Brian Lapuste2021-08-09T20:23:29-04:00

Ka-Band | E-Plane Directional Couplers | 26.5GHz – 40GHz

Ka-Band E-Plane Directional Couplers Mi-Wave’s 560 Series Broadband Directional Couplers are broad wall E-plane multi-hole energy-couping devices. The 560 Series couplers are designed in 8 waveguide sizes from 12.4 to 110 GHz. Note: Nominal couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements 560A-20/599, Coupling 20dB, Insertion Loss, 1.0 dB Ka-Band, 26.5 - 40 GHz, BroadBand Directional E-plane Couplers View Product

Brian Lapuste2021-08-09T20:23:38-04:00

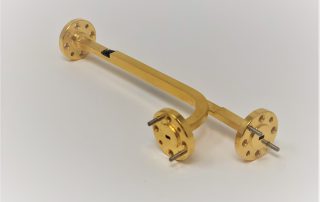

W-Band | Directional couplers H-Plane | 75GHz- 110GHz

W-Band H-Plane Directional Couplers Each of Mi-Wave’s 559 Series Broadband Directional Couplers are broadwall multi-hole energy coupling devices. The 559 Series couplers are designed in 7 couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements. Note: Other custom configurations are available upon request 559W-3/387, Coupling 3dB, Insertion Loss, 1.0dB W-Band, 75 - 110 GHz, BroadBand Directional H-Plane Couplers View Product 559W-10/387, Coupling

Brian Lapuste2023-04-07T19:12:29-04:00

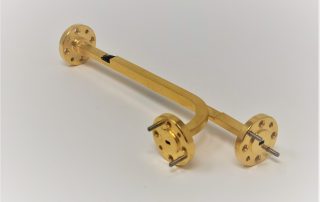

V-Band | Directional couplers H-Plane | 50GHz- 75GHz

E-Band H-Plane Directional Couplers Each of Mi-Wave’s 559 Series Broadband Directional Couplers are broadwall multi-hole energy coupling devices. The 559 Series couplers are designed in 7 couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements. Note: Other custom configurations are available upon request V-Band, 50 - 75 GHz, BroadBand Directional H-plane Couplers 559V-10/385, Coupling 10dB, Insertion Loss, 1.0 dB View Product V-Band,

Brian Lapuste2023-03-29T15:23:34-04:00

E-Band | Directional couplers H-Plane | 60GHz- 90GHz

E-Band H-Plane Directional Couplers Each of Mi-Wave’s 559 Series Broadband Directional Couplers are broadwall multi-hole energy coupling devices. The 559 Series couplers are designed in 7 couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements. Note: Other custom configurations are available upon request 559E-10/387, Coupling 10dB, Insertion Loss, 1.0 dB E-Band, 60 - 90 GHz, BroadBand Directional H-Plane Couplers View Product 559E-20/387,

Brian Lapuste2023-04-07T19:34:05-04:00

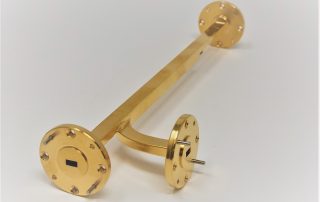

U-Band | Directional couplers H-Plane | 40GHz- 60GHz

U-Band H-Plane Directional Couplers Each of Mi-Wave’s 559 Series Broadband Directional Couplers are broadwall multi-hole energy coupling devices. The 559 Series couplers are designed in 7 couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements. Note: Other custom configurations are available upon request 559U-10/383, Coupling 10dB, Insertion Loss, 0.7 dB U-Band, 40 - 60 GHz, BroadBand Directional H-Plane Couplers View Product 559U-20/383,

Brian Lapuste2023-04-07T19:18:46-04:00
