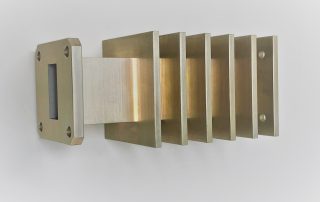

X-Band | RF Terminations | 8.2GHz – 12.4GHz | Medium Power

X-Band, 8.2 – 12.4 GHz, BroadBand Medium Power Terminations 581X/UG39, Power Handling 10.0W, VSWR 1.10:1 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2023-04-07T18:39:33-04:00

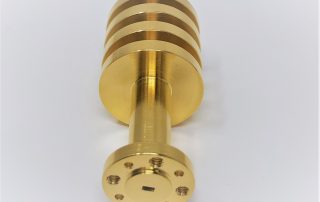

W-Band | RF Terminations | 75GHz – 110GHz | Medium Power

W-Band, 75 – 110 GHz, BroadBand Medium Power Terminations 581W/387, Power Handling 1.2W, VSWR 1.10:1 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2023-04-07T19:12:28-04:00

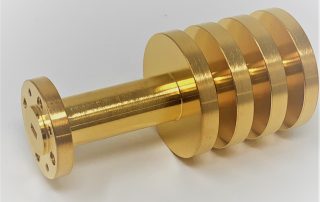

V-Band | RF Terminations | 50GHz – 75GHz | Medium Power

V-Band, 50 – 75 GHz, BroadBand Medium Power Terminations 581V/385, Power Handling 2.0W, VSWR 1.10:1 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2023-03-29T15:20:04-04:00

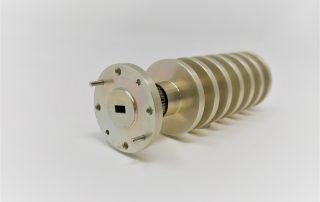

U-Band | RF Terminations | 40GHz – 60GHz | Medium Power

U-Band, 40 – 60 GHz, BroadBand Medium Power Terminations 581U/383, Power Handling 3.0W, VSWR 1.10:1 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2023-04-07T19:18:46-04:00

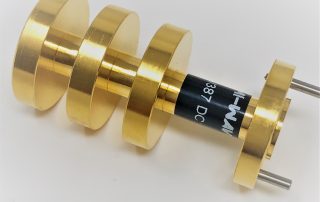

H-Band | RF Terminations | 170GHz – 260GHz | Medium Power

H-Band, 170 – 260 GHz, BroadBand Medium Power Terminations 581H/387, Power Handling 0.2W, VSWR 1.15:1 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2021-09-28T16:01:54-04:00

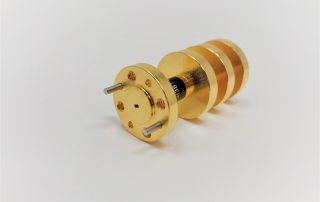

G-Band | RF Terminations | 140GHz – 220GHz | Medium Power

G-Band, 140 – 220 GHz, BroadBand Medium Power Terminations 581G/387, Power Handling 0.2W, VSWR 1.15:1 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2021-08-09T19:41:37-04:00

F-Band | RF Terminations | 90GHz – 140GHz | Medium Power

F-Band, 90 – 140 GHz, BroadBand Medium Power Terminations 581F/387, Power Handling 0.4W, VSWR 1.15:1 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2021-08-09T19:41:48-04:00

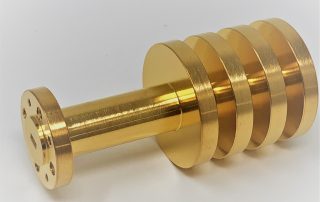

E-Band | RF Terminations | 60GHz – 90GHz | Medium Power

E-Band, 60 – 90 GHz, BroadBand Medium Power Terminations 581E/387, Power Handling 1.8W, VSWR 1.10:1 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2023-04-07T19:34:04-04:00

D-Band | RF Terminations | 110GHz – 170GHz | Medium Power

D-Band, 110 – 170 GHz, BroadBand Medium Power Terminations 581D/387, Power Handling 0.3W, VSWR 1.15 Description Mi-Wave’s 581 Series Terminations are designed with standard waveguide flanges for use from 8.2 to 220 GHz. Each unit consists of a short length of waveguide and an integral matched terminal load. Individual resistive dielectric loads are tapered to precise wedge configurations for maximum effective energy absorption. The gradual taper provides a low VSWR over the full

Brian Lapuste2023-03-29T16:36:02-04:00
