"J" - Millimeter Wave Products | Waveguide Products

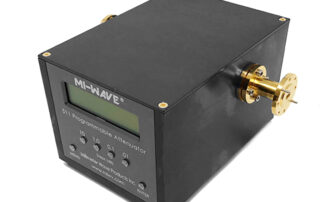

511J/387ND, J-Band, WR-3, Programmable Rotary Vane Attenuator, Frequency Range 220 GHz to 325 GHz, Attenuation Range to 40 dB

220 - 325 GHz, Programmable Rotary Vane Attenuator 511J/387ND, J-Band, WR-3, Attenuation Range to 40 dB Description: Mi-Wave’s 511 Series Precision Programmable Rotary Vane Attenuators are available in full waveguide bands from 7.0 to 220GHz. Attenuation control is performed manually via a front panel or remote controlled using a standard IEEE-488 or USB interface. Features • Attenuation from 0 to 70 dB • USB & IEEE-488 Interface • Full Band Operation

Millimeter Wave2023-07-13T14:32:33-04:00

J Band Conical Horns, WR-3, 220 to 325 GHz

J-Band Conical Horn Antennas 220 GHz to 325 GHz, Circular Waveguide with UG-39/U Flange Description: Mi-Wave's 262 Series J-band conical horn antennas are fabricated with very close tolerances to ensure the precision of every horn manufactured by Mi-Wave. Each unit is supplied with a short section of circular waveguide supplied with a short section of circular waveguide and terminated in a standard round flange. We know you need and demand the absolute best

Millimeter Wave2021-08-13T15:37:53-04:00

Adjustable Circular Polarizer, G-Band Frequency

140 - 220 GHz, Adjustable Circular Polarizer 283G-XX/.XXX/387, Bandwidth 10 GHz, Insertion Loss 1.7 dB Description: Mi-Wave’s 283 Series G-band Polarizer, similar to the 282 Series, will convert linear input signals to circular output signals with select output features. A manual switch on the unit allows for selection of the output signal's polarization sense or conversion back to a linear polarization. *Higher Frequency Units will be Quoted on Request Features

Millimeter Wave2021-01-08T15:11:01-05:00

Adjustable Circular Polarizer, D-Band Frequency

110 - 170 GHz, Adjustable Circular Polarizer 283D-XX/.XXX/387, Bandwidth 10 GHz, Insertion Loss 1.5 dB Description: Mi-Wave’s 283 Series D-band Polarizer, similar to the 282 Series, will convert linear input signals to circular output signals with select output features. A manual switch on the unit allows for selection of the output signal's polarization sense or conversion back to a linear polarization. *Higher Frequency Units will be Quoted on Request Features

Millimeter Wave2023-03-29T16:36:04-04:00

Adjustable Circular Polarizer, F-Band Frequency

90 - 140 GHz, Adjustable Circular Polarizer 283F-XX/.XXX/387, Bandwidth 10 GHz, Insertion Loss 1.0 dB Description: Mi-Wave’s 283 Series F-band Polarizer, similar to the 282 Series, will convert linear input signals to circular output signals with select output features. A manual switch on the unit allows for selection of the output signal's polarization sense or conversion back to a linear polarization. *Higher Frequency Units will be Quoted on Request Features

Millimeter Wave2021-01-08T15:05:33-05:00

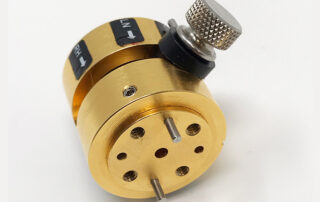

Adjustable Circular Polarizer, W-Band Frequency

75 - 110 GHz, Adjustable Circular Polarizer 283W-XX/.XXX/387, Bandwidth 8 GHz, Insertion Loss 0.50 dB Description: Mi-Wave’s 283 Series W-band Polarizer, similar to the 282 Series, will convert linear input signals to circular output signals with select output features. A manual switch on the unit allows for selection of the output signal's polarization sense or conversion back to a linear polarization. *Higher Frequency Units will be Quoted on Request Features

Millimeter Wave2023-04-07T19:12:30-04:00

Adjustable Circular Polarizer, E-Band Frequency

60 - 90 GHz, Adjustable Circular Polarizer 283E-XX/.XXX/387, Bandwidth 7 GHz, Insertion Loss 0.50 dB Description: Mi-Wave’s 283 Series E-band Polarizer, similar to the 282 Series, will convert linear input signals to circular output signals with select output features. A manual switch on the unit allows for selection of the output signal's polarization sense or conversion back to a linear polarization. *Higher Frequency Units will be Quoted on Request Features

Millimeter Wave2023-04-07T19:34:07-04:00

Adjustable Circular Polarizer, V-Band Frequency

50 - 75 GHz, Adjustable Circular Polarizer 283V-XX/.XXX/385, Bandwidth 7 GHz, Insertion Loss 0.40 dB Description: Mi-Wave’s 283 Series V-band Polarizer, similar to the 282 Series, will convert linear input signals to circular output signals with select output features. A manual switch on the unit allows for selection of the output signal's polarization sense or conversion back to a linear polarization. *Higher Frequency Units will be Quoted on Request Features •

Millimeter Wave2023-03-29T15:45:01-04:00

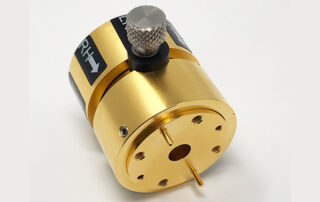

Adjustable Circular Polarizer, U-Band Frequency

40 - 60 GHz, Adjustable Circular Polarizer 283U-XX/.XXX/383, Bandwidth 6 GHz, Insertion Loss .30 dB Description: Mi-Wave’s 283 Series U-band Polarizer, similar to the 282 Series, will convert linear input signals to circular output signals with select output features. A manual switch on the unit allows for selection of the output signal's polarization sense or conversion back to a linear polarization. *Higher Frequency Units will be Quoted on Request Features

Millimeter Wave2023-04-07T19:18:47-04:00
