Adjustable Waveguide Short Circuits | 12.4GHz – 220GHz

Adjustable Waveguide Short Circuits Mi-Wave’s 590 Series Waveguide Short Circuits are available in standard waveguide sizes from 12.4 to 325 GHz. The non-contacting choke type short circuit is designed to operate with high electrical stability over a broad range of frequencies. The micrometer drive provides smooth, accurate positional tuning over the entire distance traveled and a positive locking device ensures continued setting reliability. Note: Our website contains just a few types of Terminaions we build. Consult with

Mauricio Miranda2023-09-28T16:22:42-04:00

J-Band Compact Isolators 220-325GHz

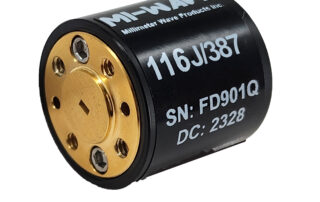

Products> Isolators> Full Band – Compact Isolators > 116J/387 J-Band Compact Isolators J-Band Compact Isolators 220-325GHz, WR-3 Waveguide, 6.25dB Insertion Loss, 25dB Isolation Description: Mi-Wave’s 116 series J-band isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum reproducibility and performance,

Mauricio Miranda2024-02-14T19:58:19-05:00

620J/387 E/H Plane Tuners, Frequency 220-325 GHz, WR-03 Waveguide, UG-387/U-M

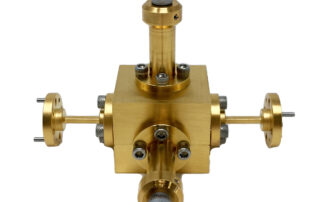

620J/387 E/H Plane Tuners Frequency 220-325 GHz | WR-03 Waveguide | UG-387/U-M Description: Mi-Wave’s 620 Series E/H Plane Tuners are hybrid tee sections available in standard waveguide sizes for operation from 12.4 to 325 GHz. The devices feature micrometer-driven tunable shorts in both the E-plane and H-plane arms for accurate tuning and reproducing settings. The internal short circuits are non-contacting, choke-type plungers that provide a highly stable electrical short. Locking devices ensure continued

Mauricio Miranda2023-06-02T17:57:32-04:00

J-Band High Precision Waveguide Bends | E-Plane

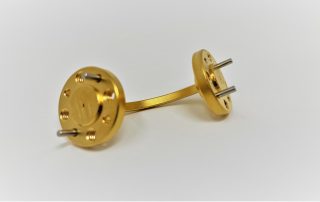

J-Band Waveguide Bend | E-Plane 660J/387 220GHz - 325GHz WR-03, UG-387/U-M Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 660, 661, 662 Series E-plane Bends are sections of high precision waveguide accuratetaped to either 30º (661), 45º (665), 60º (662), or 90º (660) bends. Special angles, radii, and configurations for a particular application can be developed in a special order. All E-plane Series Bends are available

Brian Lapuste2023-12-13T15:19:34-05:00

J-Band Waveguide Straight Sections 220-325GHz

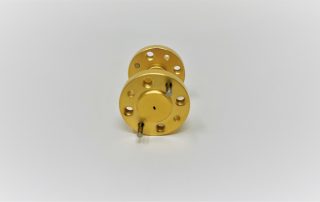

J-Band Waveguide Straights 690J-1/387, 220GHz - 325GHz WR-03, UG-387/U-M Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 690 Series flanged waveguide sections & bends are available in standard waveguide sizes from 8 to 500 GHz. Each section is precisely fabricated using MIL-SPEC waveguide and flanges. Precise control of the fabrication processes eliminates waveguide discontinuities and distortion. The 690 Series waveguide is available in a wide

Brian Lapuste2021-11-05T20:17:49-04:00

J-Band Waveguide Twists | High Precision | 220-325GHz

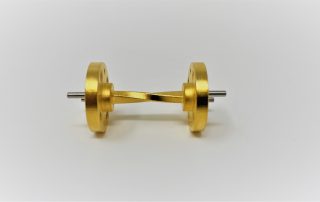

J-Band Precision Waveguide Twist 681J/387 , 220 GHz - 325 GHz WR-03, UG-387/U-M Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 680 Series Twists are short sections of standard flanged waveguide with left-hand or 45º twist configurations while the 681 Series Twists provide 90º twist configurations. The units are available in standard waveguide sizes from 8.2 to 325 GHz. Please be sure to specify the

Brian Lapuste2023-03-29T16:36:05-04:00

J-Band Waveguide Bends & Twists | H-plane Bends

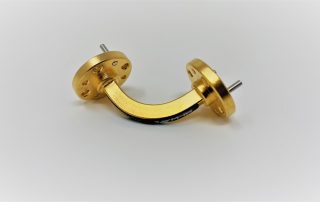

J-Band Waveguide Bend 670J/387, 220GHz - 325GHz WR-3, UG-387/U-M Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 670, 671, 672, and 675 Series H-plane Bends are sections of high-precision waveguide accurately shaped to either 30º (671), 45º, (675),60º (672), or 90º (670). Special angles, radii, and configurations for all particular applications can be developed in a special order. All H-plane bends are available from 18

Brian Lapuste2021-10-12T19:24:48-04:00

J-Band Waveguide Probe Antennas | 220GHz – 325GHz

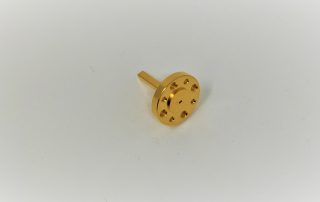

Products> Antenna Products >Waveguide Probe Antennas J-Band Waveguide Probe Antennas 260J/387, 220GHz - 325GHz WR-03, UG-387/U-M Description: Mi-Wave's 260 Series Waveguide Probe Antennas are used in a wide variety of applications due to their high power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. Mi-wave’s probe antennas offer operating frequencies from 8.2-500 GHz. These antennas offer a low gain variation across their operating frequency.

Brian Lapuste2025-01-31T12:22:06-05:00

J-Band to Rectangular Waveguide Adapter | 170 – 260GHz

J-Band | Rectangular - to - Rectangular Waveguide Adapters Mi-Wave’s 692 Series Rectangular Waveguide Adapters come with standard flanges for two different waveguide sizes. In each transition, the fabrication process allows precise control of taper dimensions to provide a good impedance match. As a result, high mode purity is maintained in the transfer process with minimum VSWR effects and energy loss. J-(WR-2.2) Band, WR-3 to WR-2.2, Rectangular to Rectangular Waveguide Adapter 692J-(2.2)/387, VSWR

Brian Lapuste2023-06-07T16:46:06-04:00
