Block Type Directional Couplers 561 Series Couplings of 3, 6, 10, 20, 30, 40and 50 dB available. Mi-Wave’s 561 Series Broadband Directional Couplers are broadwall mulit-hole energy-coupling devices. The 561 Series devices are available in various waveguide sizes ranging in frequency from 18.0 to 500 GHz. Note: Our website contains just a few types of Couplers we build. Consult with us for your specific needs.
Waveguide Type E-Plane Directional Couplers 560 Series couplers are designed in 8 waveguide sizes from 12.4 to 110 GHz Description Mi-Wave’s 560 Series Broadband Directional Couplers are broadwall E-plane multi-hole energy-couping devices. The 560 Series directional couplers provide an efficient and convenient means for sampling a finite quantity of power flowing in a transmission line or for injecting a desired signal into the line.
Broadband H-Plane Directional Couplers Each of Mi-Wave’s 559 Series Broadband Directional Couplers are broadwall multi-hole energy coupling devices. The 559 Series couplers are designed in 7 couplings of 3, 6, 10, 20, 30, 40, and 50 dB are offered to complement specific test set requirements. Other custom configurations are available upon request The 559 Series Directional Couplers provide an efficient and convenient means for sampling a finite quantity of power flowing in a transmission line or for
Bi-Directional Couplers 555 Series Couplers available in 3, 6, 10, 20, 30, and 40 dB coupling values Mi-Wave’s 555 Series Bi-directional couplers are broadband, broadwall wavegugide type. The 556 are split block type components with a multi-hold directivity. The 555 Series couplers are available in 3, 6, 10, 20, 30, and 40 dB coupling values for standard waveguide bands from 18 to 220 GHz. Applications The 555 Series Bi-directional Couplers are used in
Harmonics, Distortion and Power Measurement Published by: Mi-Wave© (Millimeter Wave Products Inc.) Authored by: Lokesh Saggam, Shashi Saggam Abstract----Harmonics are unwanted frequencies generated by system nonlinearities. They are multiples of the fundamental test frequency. RF power amplifiers are responsible for most of the unwanted harmonics. This paper discusses about harmonic distortion and power measurement of W-band X6 Multiplier with 15 dBm Output Power. Two methods of Harmonics measurement are compared, and their accuracy is discussed here.
Power Measurement Errors Published by: Mi-Wave© (Millimeter Wave Products Inc.) Authored by: Lokesh Saggam, Shashi Saggam Introduction Power level is frequently the critical factor in the design, evaluation, purchase and ultimately, the performance of almost all RF products and equipment. When a customer purchases a product with specified power performance for a negotiated price, the final production-line test results must agree with the customer’s incoming inspection data. The receiving, installing, or commissioning phases often occur at
x8 Frequency Multipliers | Frequency Extenders 938EF-16/387H E-Band, WR-12, x8 Multiplier, 60 GHz to 90 GHz, 16dBm View Product 938W-80/106/15/387 W-Band, WR-10, x8 Multiplier, 80 GHz - 106 GHz, 15dBm View Product 938WF-18/387 W-Band,WR-10, x8 Multiplier, 75 GHz - 110 GHz, 18dBm View Product 938WF-10/387 W-Band,WR-10, x8 Multiplier, 75 GHz - 110 GHz, 10dBm View Product Multipliers Our Active Multipliers

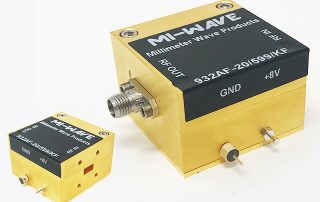

x6 Frequency Multipliers | Frequency Extenders 936EF-10/387 E-band, WR-12, x6 Multiplier, 60 GHz - 90 GHz, 10dBm View Product 936EF-20/387H E-band, WR-12, x6 Multiplier, 60 GHz - 90 GHz, 20dBm View Product 936WF-10/387 W-Band, WR-10, x6 Multiplier, 75 GHz - 110 GHz, 10dBm View Product 936WF-15/387 W-Band, WR-10, x6 Multiplier, 75 GHz - 110 GHz, 15dBm View Product 936WF-20/387 W-Band, WR-10, x6
x4 Frequency Multipliers | Frequency Extenders 934BF-10/383 Q-Band, WR-22, High Output Power 33 GHz - 50 GHz, 10dBm View Product 934BF-13/383 Q-band, WR-22, x4 Multiplier, 33GHz - 50 GHz, 13dBm View Product 934EF-20/387 E-band, WR-12, x4 Multiplier, 60 GHz - 90 GHz, 20dBm View Product 934UF-10/383 U-band, WR-19, x4 Multiplier, 40 GHz - 60 GHz, 10dBm View Product 934VF-10/385 V-band, WR-15, x4
