J-Band Standard Gain Horn Antennas | WR-3 | 220 – 325 GHz | 20 dBi Gain

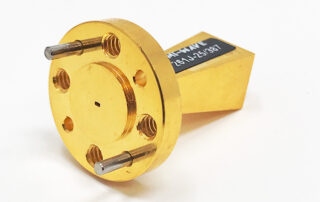

Products> Antenna Products > Standard Gain Horns WR-3 Standard Gain Horn Antennas | 20 dBi Gain 220 GHz – 325 GHz, Gain 20 dBi, Polarization Linear, VSWR 1.15:1 Description: Mi-Wave's Standard Gain Horn Antennas are ready to meet your needs. Designed to operate in the 220 – 325 GHz spectrum with WR-3 waveguide dimensions, our antennas are crafted with the end consumer in mind. We understand your demand for excellence in Standard Gain antennas and

Mauricio Miranda2024-04-26T15:30:55-04:00

J-Band Waveguide Calibration Kits | 220GHz – 325GHz

H-Band Waveguide Calibration Kit 780H/387, 170GHz - 260GHz WR-04, UG-387/U Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 780 Series Waveguide Calibration Kits are made to precisely calibrate Vector Network Analyzers (VNA) utilizing millimeter waveguide test heads or modules from 18 to 325 GHz. These kits provide the Triple Offset Short (SSST) calibration method utilizing offset shorts and fixed precision termination. The precision fixed shorts

Mauricio Miranda2024-01-29T17:20:30-05:00

J-Band Waveguide Calibration Kits | 220 GHz – 325 GHz

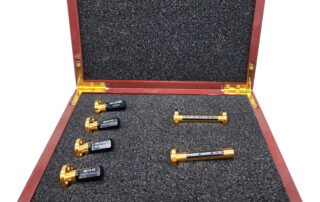

J-Band Waveguide Calibration Kit 780J/387, 220GHz-325GHz WR-03, UG-387/U Note: Customer can purchase a custom configuration or dimension. Please consult with the factory. Description: Mi-Wave’s 780 Series Waveguide Calibration Kits are made to precisely calibrate Vector Network Analyzers (VNA) utilizing millimeter waveguide test heads or modules from 18 to 325 GHz. These kits provide the Short-Short-Load-Thru (SSLT) calibration method utilizing offset shorts and fixed precision termination. The precision fixed shorts have been selected to

Mauricio Miranda2023-12-13T19:01:02-05:00

Precision Drill Jigs

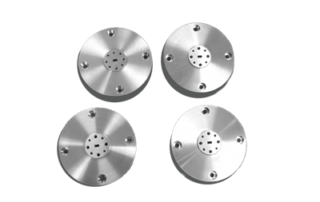

Precision Drill Jigs Description: Each of Mi-Wave's 700 series Drill Jigs consists of a solid steel block with accurately positioned drill holes and a a tapered locating tab that will locate drill holes in a precise relation to the internal waveguide surfaces. Hardened steel minimizes wear to ensure drilling accuracy The 700 series precision drill jigs are designed to facilitate accurate fabrication of flanged waveguide sections for standard waveguide sizes from 26.5 to 220 GHz. These jigs

Mauricio Miranda2023-10-04T17:08:32-04:00

695-8 Adjustable Waveguide Mount

695-8 Adjustable Waveguide Mount 8 x 8 Inches (203.2mm x 203.2mm), Adjustable Height: 2.4" to 12.3" (60mm to 312.42mm), Weight Capacity: 110 lbs. (50 Kg) Description: 695-4, 695-6 and 695-8 models are crisscross type mini jack that provides an adjustable support solution in laboratory environments. The mini jack is especially helpful when setting up bench top test sets or module testing systems. Features: Rugged configuration Quick and smooth one knob adjustment Instrumentation grade

Mauricio Miranda2023-09-29T16:03:14-04:00

695-6 Adjustable Waveguide Mount

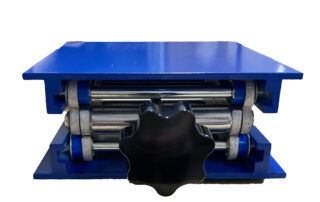

695-6 Adjustable Waveguide Mount 6 x 6 Inches (152.4 x 152.4mm), Adjustable Height: 2.2" to 9.8" (50.8 to 248.9mm), Weight Capacity: 55 lbs. (25 Kg) Description: 695-4, 695-6 and 695-8 models are crisscross type mini jack that provides an adjustable support solution in laboratory environments. The mini jack is especially helpful when setting up bench top test sets or module testing systems. Features: Rugged configuration Quick and smooth one knob adjustment Instrumentation grade

Mauricio Miranda2023-09-29T16:03:06-04:00

695-4 Adjustable Waveguide Mount

695 Adjustable Clamp Waveguide Mount 4 x 4 Inches (101.6 x 101.6 mm), Adjustable Height: 1.7" to 7" (43.18 to177.8 mm), Weight Capacity: 22 lbs. (10 Kg) Description: 695-4, 695-6 and 695-8 models are crisscross type mini jack that provides an adjustable support solution in laboratory environments. The mini jack is especially helpful when setting up bench top test sets or module testing systems. Features: Rugged configuration Quick and smooth one knob adjustment

Mauricio Miranda2023-09-29T16:03:00-04:00

695 Adjustable Clamp Waveguide Mount

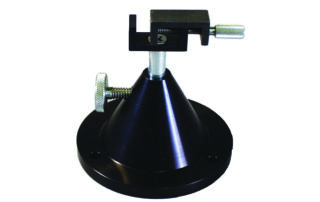

695 Adjustable Clamp Waveguide Mount 3 Inches Diameter, Adjustable Height: 2.01" to 1.19" Description: 95 model consists of an adjustable clamp mounted on an adjustable height rugged base stand. The unique waveguide clamp may be readily adjusted to fit the clamping jaws to particular waveguide sizes or orientations. The cast stand has a large base area to prevent moving or tipping under normal test bench conditions. For further stability, the base may be secured

Mauricio Miranda2023-09-29T16:10:04-04:00

590G Adjustable Short Circuit, UG-387/U Flange

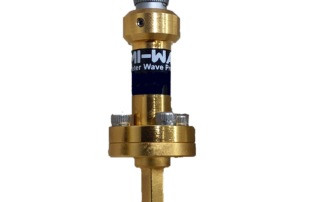

590G Adjustable Short Circuit Waveguide , UG-387/U Flange Frequency 140-220 GHz | UG-383/U Flange Description: Mi-Wave’s 590 Series Waveguide Short Circuits are available in standard waveguide sizes from 12.4 to 325 GHz. The non-contacting choke type short circuit is designed to operate with high electrical stability over a broad range of frequencies. The micrometer drive provides smooth, accurate positional tuning over the entire distance traveled and a positive locking device ensures continued setting

Mauricio Miranda2023-09-27T16:05:12-04:00
