Ka Band Wide Angle Scalar Feed Horns | 381 Flange

18 GHz to 26.5 GHz

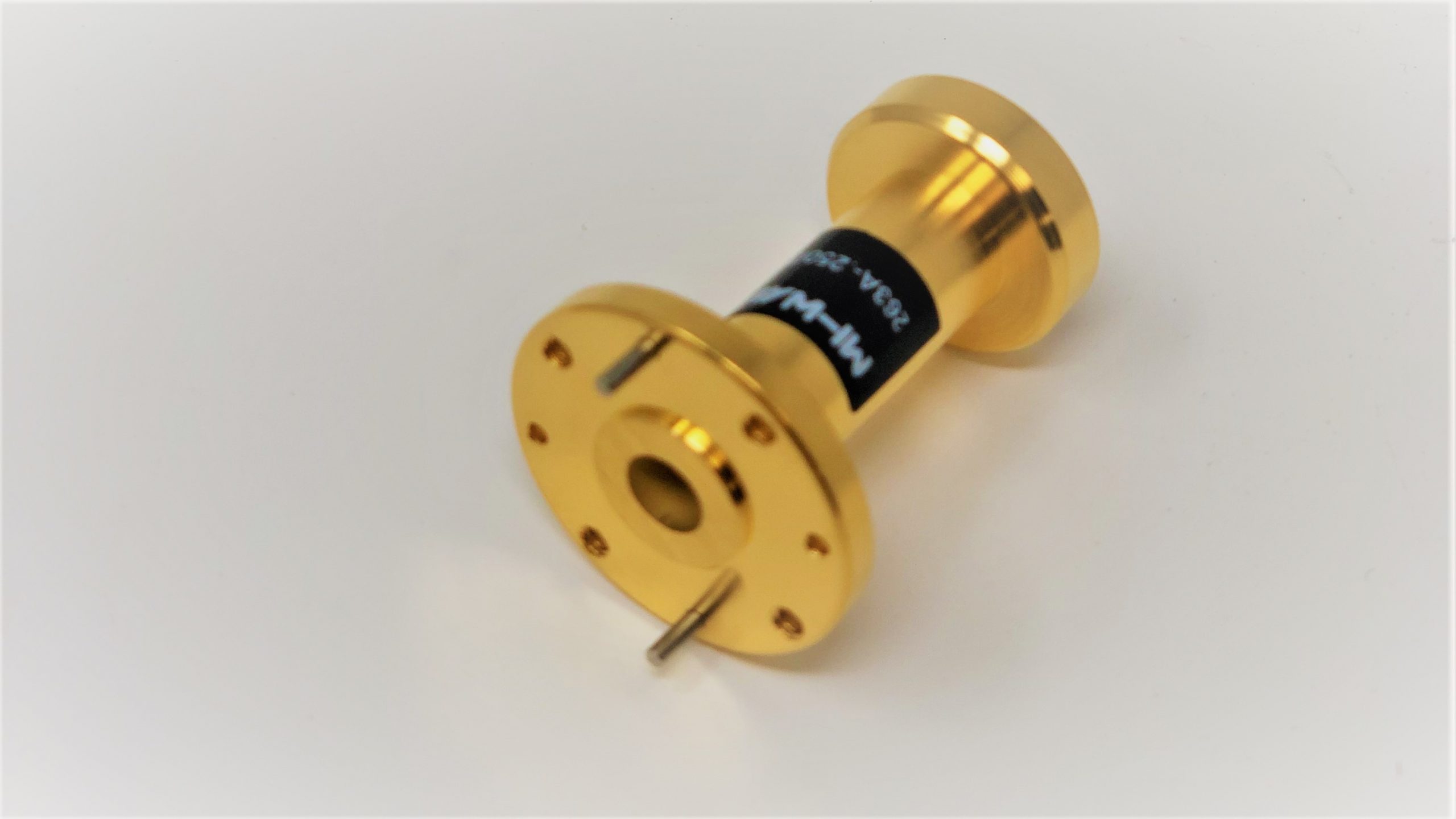

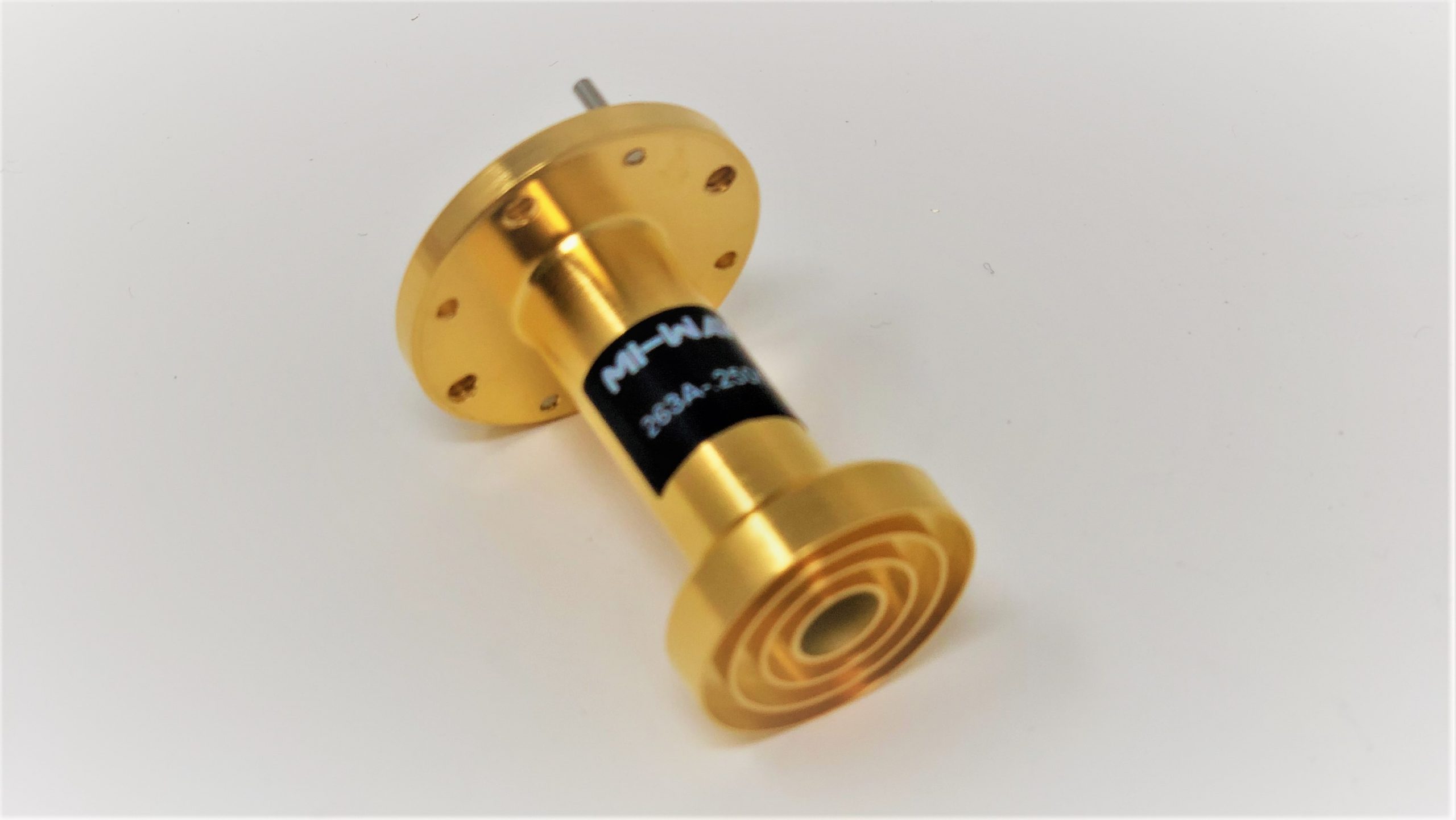

Mi-Wave’s 263 Series Ka-band wide-angle scalar feed horn antennas are created with the end consumer in mind. Our wide-angle scalar feed horns also called a choke horn, have been designed to be used in applications where wide beamwidth (55 Deg.) is required such as low F/D ratios of 0.5 and 0.4 in parabolic reflectors and offset feed applications.

Some highlights are listed below:


• Low VSWR

• Wide Beamwidths

• Polarization Insensitive

• Partial Waveguide Bandwidths


• Low F/D Antennas

• Surveillance Systems

• Offset Feed Antenna

*All data presented is collected from a sample lot.
* Actual data may vary unit to unit, slightly.
*All testing was performed under +25 °C case temperature.
*Consult factory to confirm if material, plating, size, shape, orientation and any electrical parameter is critical for the application as website information is for reference only.
*Millimeter Wave Products, Inc. reserves the right to change the information presented on website without notice as we continue to enhance the performance and design of our products.

Q Band Wide Angle Scalar Feed Horn Antennas

If you are looking for wide angle scalar feed horn antennas, then you’ve come to the right place. Mi-Wave’s 263 Series q band wide angle scalar feed horn waveguide antennas offer low loss, high directivity, high power handling capability and great performance across a wide bandwidth. Our wide angle scalar feed horn antennas operating frequencies cover a large array of RF spectrum and can be used in many applications.

Wide angle scalar feed horn waveguide antennas are one of many antenna line products manufactured and shipped globally. At Millimeter wave products Inc. (Mi-Wave) we specialize in manufacturing the highest quality WR-22  wide angle scalar feed horn antennas for many needs.
