955A 27GHz – 33GHz 14 Watt Power Amplifier

Millimeter Wave Products Inc. has begun manufacturing on it’s latest line of amplifiers for the 5G industry. We can push to higher levels of power also! See technical specs & gain plot below.

See technical specifications and gain plot below

Technical Specifications

Frequency 27-34GHz

Small Signal Gain 40dB typ

Output Power (Psat) +36dBm typ

Input Drive Level +5dBm typ

Input/Output Return Loss (dB) 2.0 :1

Bias Voltage 100V – 200V AC

Maximum RF Input Power +15dBm max

See more about these on our 5G Power Amplifiers page

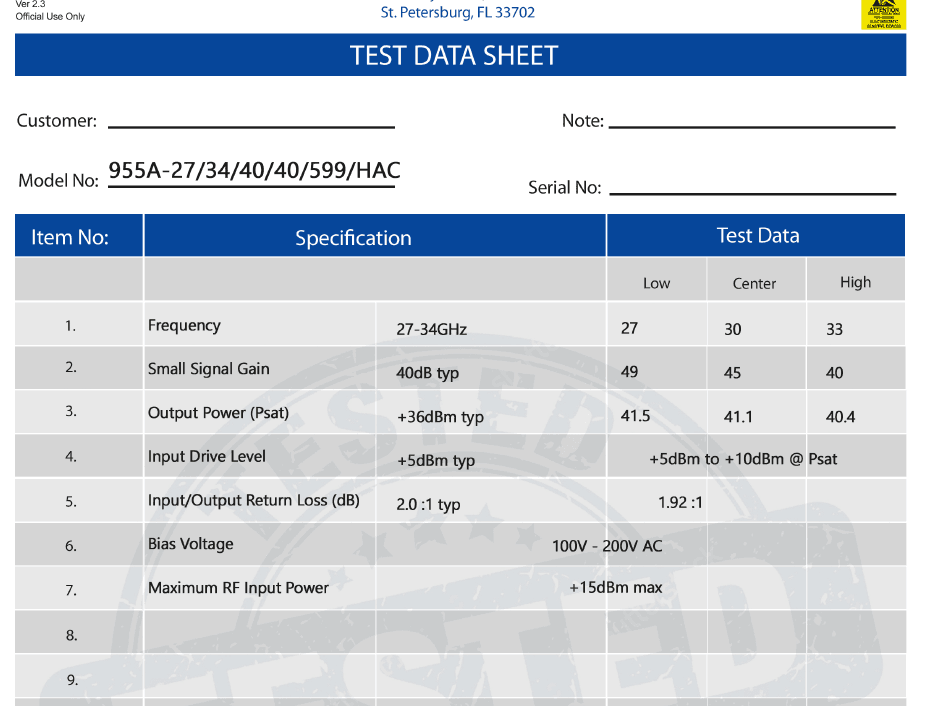

Test Data

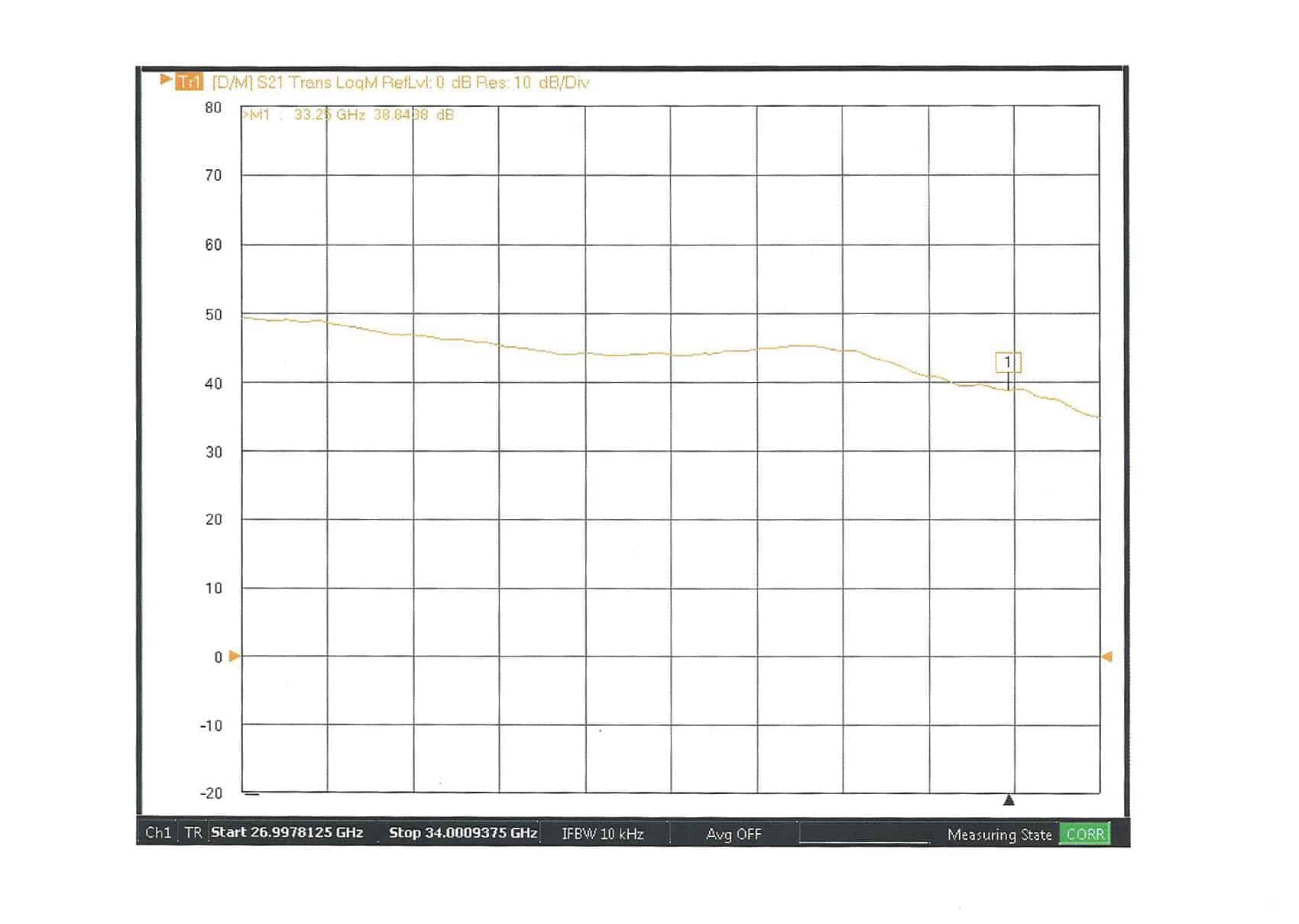

Gain Plot
