V-Band (WR-15) Waveguide Components | 50–75 GHz

The V-band as defined by IEEE is a frequency range from 50 to 75 GHz. The V-Band is license free in many countries and is most often used for wireless backhaul and point to point/point to multi-point radio links. These systems are primarily used for high capacity, line of sight communications.

Availability of a wider bandwidth made this band a hit in the point-to-point (pt-to-pt) radio solution market. Radio links operating in the V band can be densely deployed in congested cities without interference, and without need for digging for cables and fiber optics, which can be costly, slow and highly disruptive. Radios providing full-duplex data rates up to 10 Gbps over distances close to one mile or more are easily available today.

In 2013, IEEE introduced the 802.11ad wireless access systems (also called as WiGig) in V band, which allow devices to communicate wirelessly at multi-Gigabit speeds and deliver high-definition content over shorter distances.

In the United States, the Federal Communications Commission has allocated the frequency band from 57 to 71 GHz for unlicensed wireless systems.

The V band from 57 to 66 GHz has been used for a long time now for high capacity terrestrial millimeter wave communications systems.

V-Band Antennas

Mi-Wave V-band antennas operate across the full 50–75 GHz WR-15 waveguide band, delivering high gain and precision beam control for point-to-point backhaul, 5G fixed wireless, and satellite ground terminals. Available in 3″, 6″, 9″, and 12″ aperture diameters, including dual-polarized RHCP/LHCP variants for frequency reuse applications.

V-Band Amplifiers & Active Components

Mi-Wave V-band RF power amplifiers cover the full 50–75 GHz range with small signal gain up to 40 dB, designed for backhaul transmitters, test benches, and active subsystem integration. Built for stable output across temperature and frequency, these amplifiers are available with custom gain and connector configurations.

V-Band Waveguide Components

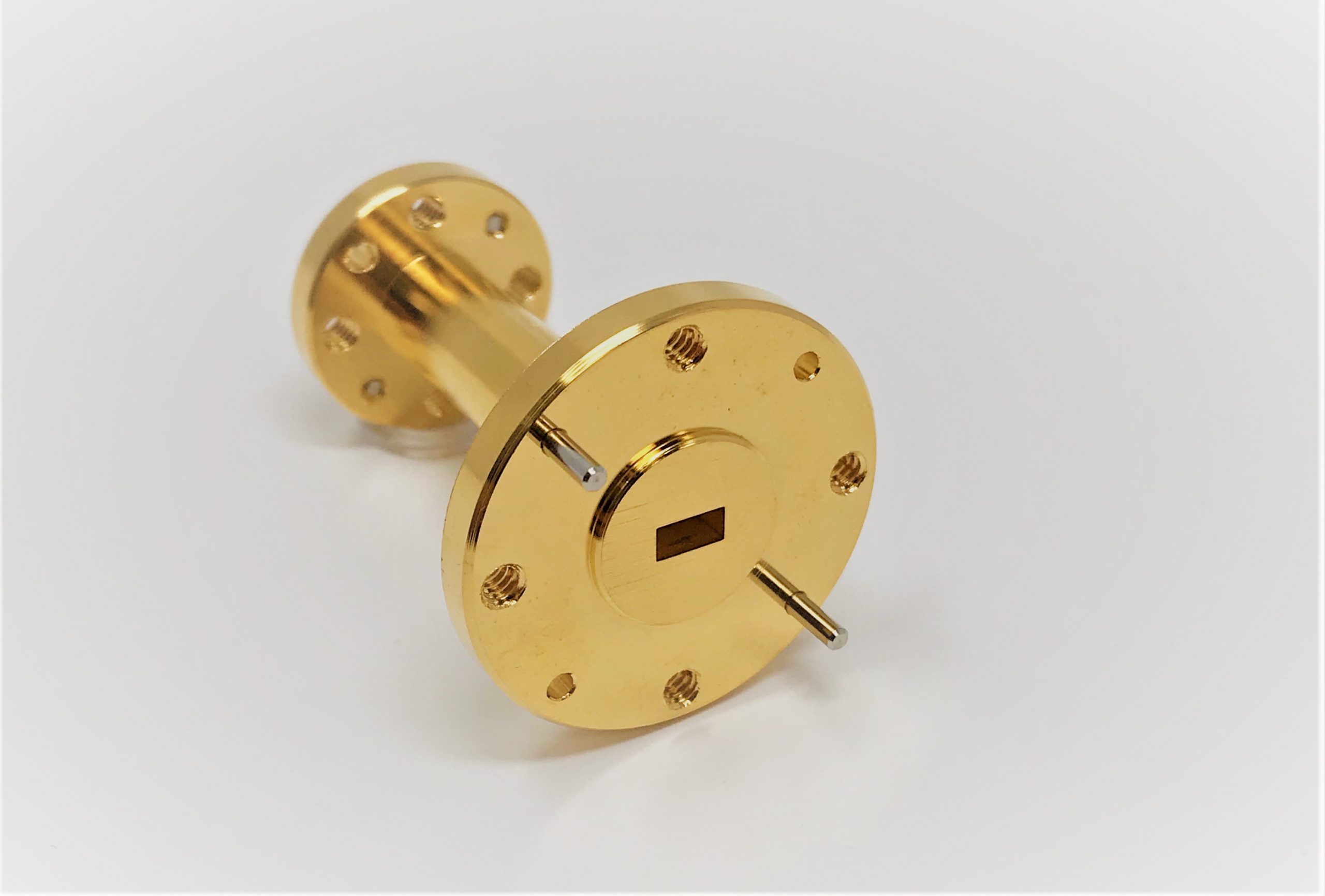

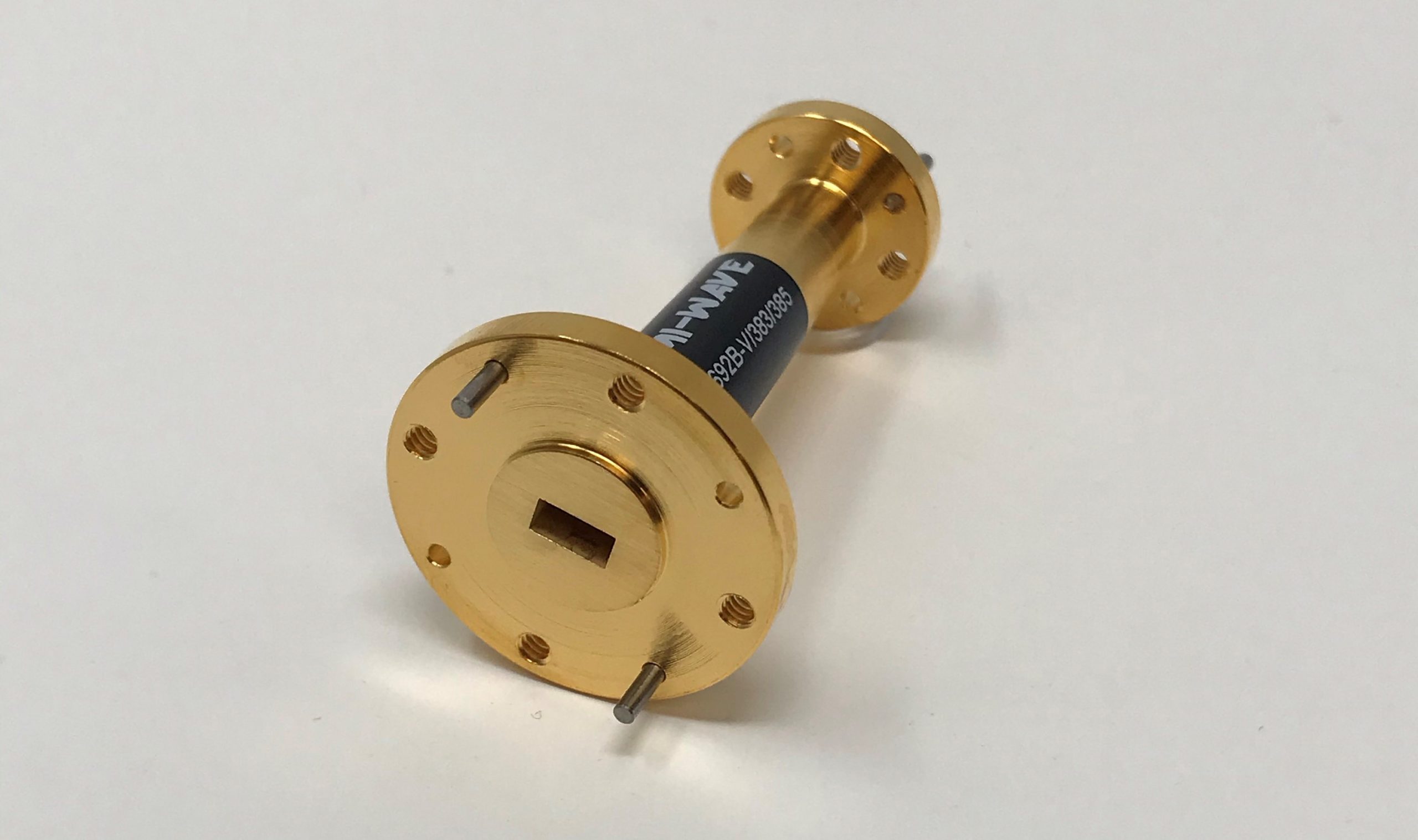

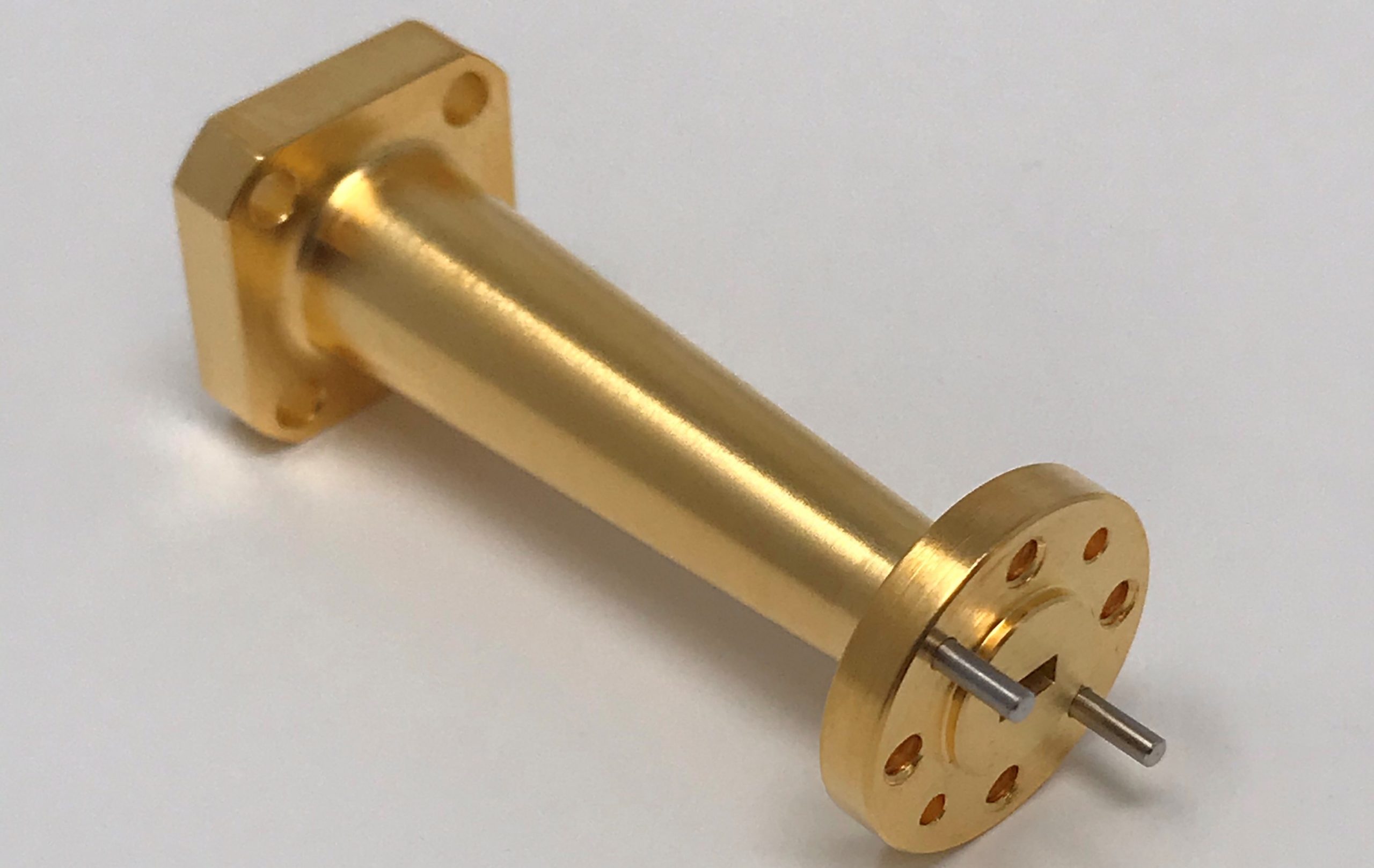

Mi-Wave WR-15 passive waveguide components include calibration kits, straight sections, E-plane bends, twists, and circular waveguides — all precision-machined for the V-band 50–75 GHz range. These components integrate directly into millimeter wave test setups and point-to-point radio systems requiring low-loss signal routing.
