Programmable Rotary Vane Attenuators are available in full waveguide bands from 7.0 to 220GHz.
Our latest 511 Version 2 is filled with new features, upgrades and capabilities that simply make it one of the best in the industry.
High Power Handling Capability
Increased power capability up to 100 Watts (typical) in some bands now!
Attenuation from 0-70 dB

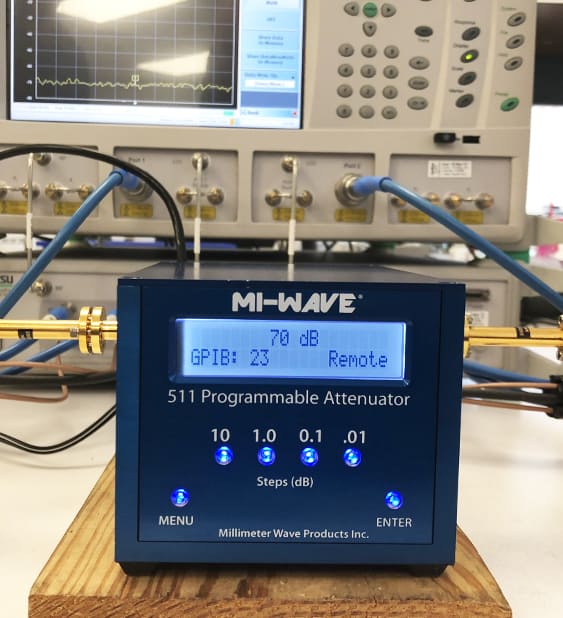

in .01 dB steps from 0 to 70 dB. A digital readout is provided on the front panel to display attenuation settings
USB & GPIB Port
Attenuation control can be remote controlled using a standard IEEE-488 or USB interface
SIGNIFICANT FEATURE UPGRADES & MORE
Other improvements include new company proprietary internal absorbing material that will handle high power levels and yield low insertion loss and mode free operation to 70 db attenuation levels and more…
Attenuation level steps of 10 dB, 1 dB, 0.1 dB and 0.01 dB available from 0-70 dB
Fast & Quiet
Attenuation level goes from 0-70 dB in 2 seconds. Older version took 4 seconds.
Rocker switch replaced by LED buttons for changing settings. Easy and simple to use.
GROUND-BREAKING AMAZING TECHNOLOGY
The attenuators small compact size incorporates both the electronic controller and the microwave components.
The unit operates from a single +24 Volt DC source or with an optional adapter.
Programmable GPIB address now goes up to 30
“xx.xx dB Command Complete,” message sent via USB or GPIB after attenuation level is reached
Higher Power Handling Capability
Integrated shutdown safety feature
Attenuation from 0 to 70 dB
Less than 2sec. to change attenuation level from 0 to 70dB
Rocker switch replaced by LED buttons
Watch the 511 Overview Video
Watch an in-depth operational overview of the 511v2 Programmable Attenuator.
ORDER YOUR ATTENUATOR TODAY
Our sales engineers are standing by to address any questions, concerns and provide further data sheets, outline drawings and more if needed. Purchasing from MI-WAVE means purchasing the highest quality products in the industry.
