Ka-Band Compact Isolators

26.5GHz – 40GHz, WR-28 Waveguide, 2.25 dB Insertion Loss, 25dB Isolation

Description:

Mi-Wave’s 116 series Ka-band isolator uses the Faraday principle of rotation in a broadband dielectric waveguide design to achieve high isolation across full waveguide bands. High-quality ferrite material is used in these isolators, and the magnetic field is produced by an integral permanent magnet. To ensure maximum reproducibility and performance, a combination of precise machining operations and refined assembly techniques are used.

Features

• Low insertion loss

• Full waveguide band

• Excellent isolation across the band

• Faraday rotation principle of operation

Applications

• Test Labs

• Sub-Assemblies

• Automotive Industry

• MMwave Test Systems

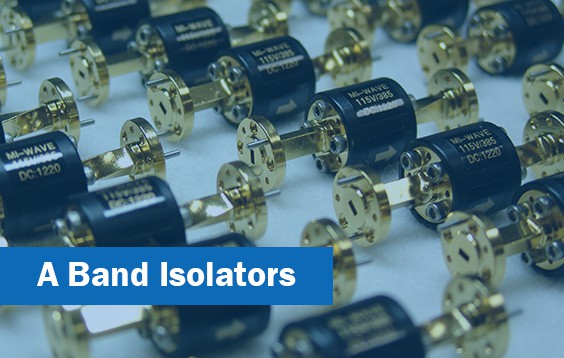

ka-band isolators
* Images, Plots & Datasheets are for reference only.
* Outline Drawings keep enhancing which may alter dimensions, please contact us for latest specifications.

Ka-Band Isolators

Our Ka-band Isolators are for the spectrum in the millimeter wave range of frequencies from 26.5 to 40 gigahertz (GHz).

Designed for full waveguide band operation, the 116 series isolator is used in swept frequency applications. These components provide a high degree of isolation between signal sources and mismatched loads by attenuating the reflected signals. The insertion loss in the forward direction is minimized to allow for the full available power from the signal source-isolator combination. Typical applications for these broadband isolators include laboratory setups as well as millimeter wave test sets and automotive radar
