Millimeter Wave Calibration Kit

Millimeter Wave Calibration Kit

Millimeter Wave Products Inc has developed a line of millimeter waveguide calibration kits for calibrating Vector Network Analyzers (VNA) utilizing millimeter waveguide test heads or modules from 26.5 to 260 GHz. These kits provide the Short-Short-Load-Thru (SSLT) calibration method utilizing offset shorts and a fixed precision termination.

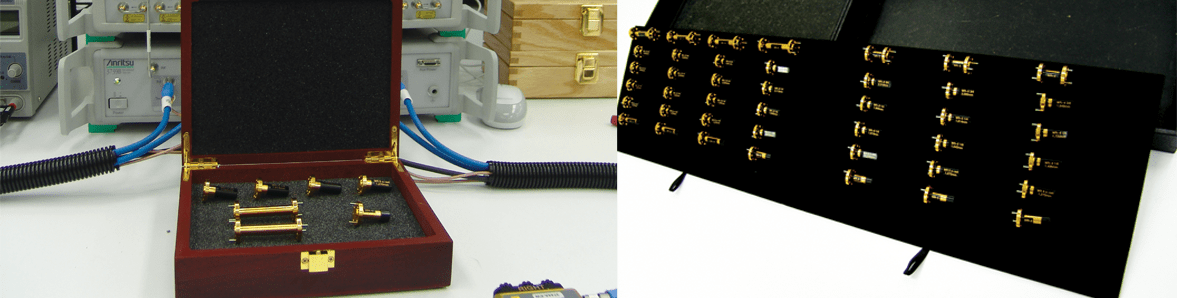

The precision fixed shorts have been selected to provide a high level of return loss >40dB and fixed short circuits are optimized to 1/8, 1/4, and 3/8 wavelengths with tight tolerances. These kits are provided with two rugged straight waveguides, 1/8, 1/4, 3/8 and reference short circuits precision fixed load in a foam lined wooden case.

DOWNLOAD SALES SHEET
  • 2 ea. Straight Precision Waveguide
  • 1 ea. Precision Fixed Termination
  • 1 ea. High Precision Offset Short, 1/8 Wavelength
  • 1 ea. High Precision Offset Short, 1/4 Wavelength
  • 1 ea. High Precision Offset Short, 3/8 Wavelength
  • 1 ea. Fixed Short (used as a verification standard)
  • 1 ea. Precision Straight Section (used as a verification standard)
  • 1 set Flange Hardware

* Optional High Precision Sliding Termination can be added to kit.

Millimeter Wave Calibration Kit Video

Watch a 780 Series Calibration on the VectorStar MS4647 VNA with Broadband Frequency Extender

standard gain horn antenna page

How to Order & Custom Products

As the manufacturing source, we have top sales engineers ready to answer all your questions and quote you on product needs. You’ll find our prices are some of the best since we manufacture all our millimeter wave products in house.

Have a custom job or unique need? No problem! Contact us so we can work on solutions to meet your needs.
